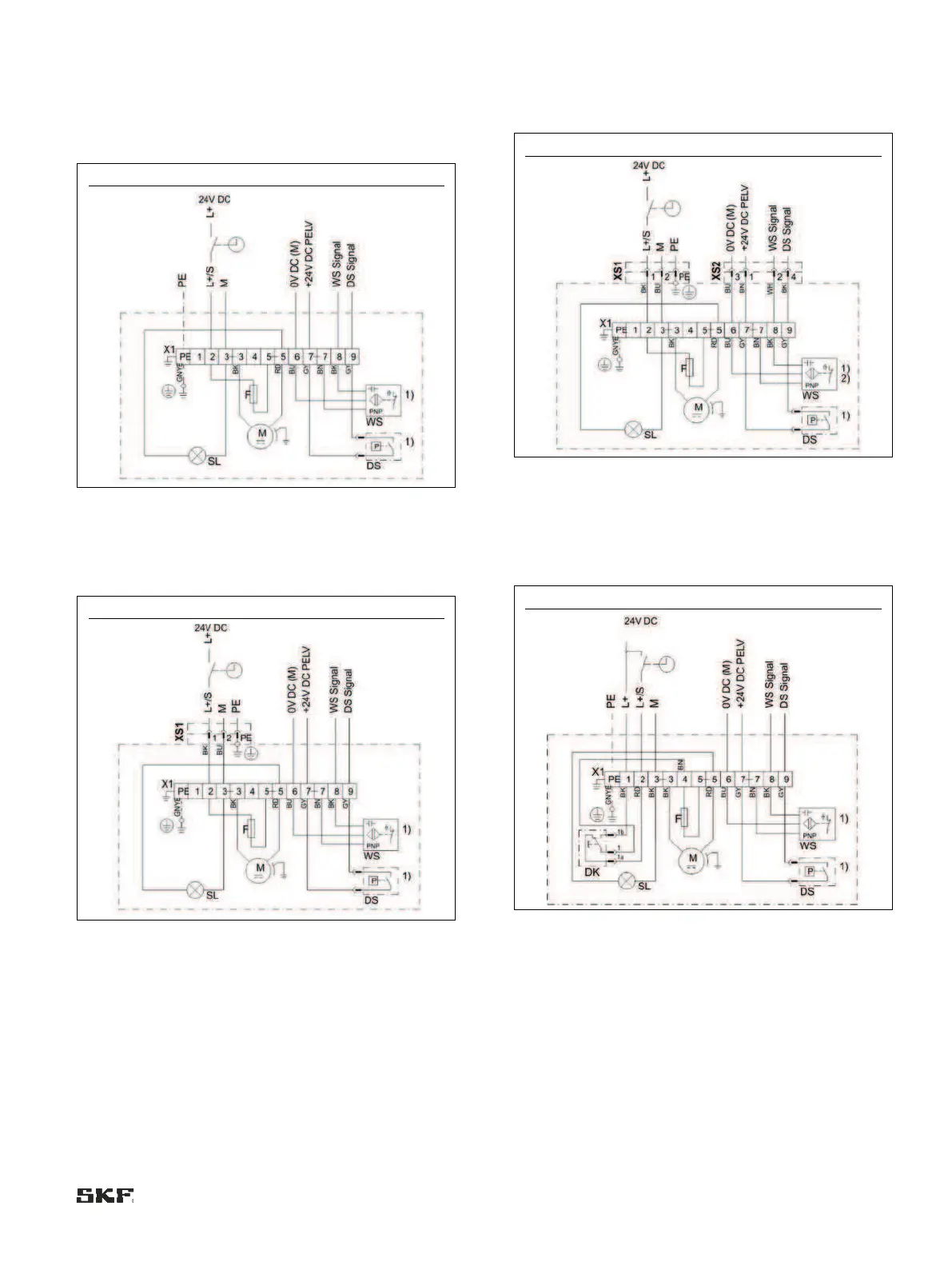

6.8.2.15 MKF, 3- or 6-liter reservoir, voltage design
24 VDC, without pushbutton
Connections via:
• 2x screwed glands
Fig. 74
MKF1-12 A _ _ 0000+924, MKF2-12(4)A _ _ 0000+924,
MKF2-12(4)A _ _ 3000+924
Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland
Fig. 75
MKF1-12 A _ _ 1000+924, MKF2-12(4)A _ _ 1000+924,
MKF2-12(4)A _ _ 4000+924
Connections via:
• XS1 connector (DIN EN 175301-803 A)
• XS2 connector (M12x1)
Fig. 76
MKF1-12 A _ _ 2000+924, MKF2-12(4)A _ _ 2000+924
6.8.2.16 MKF, 3- or 6-liter reservoir, voltage design
24 VDC, with pushbutton
Connections via:
• 2x screwed glands
Fig. 77
MKF1-12 B _ _ 0000+924, MKF2-12(4)B _ _ 0000+924,
MKF2-12(4)B _ _ 3000+924
