1. RH side driven pulley side
2. LH side brake disc side

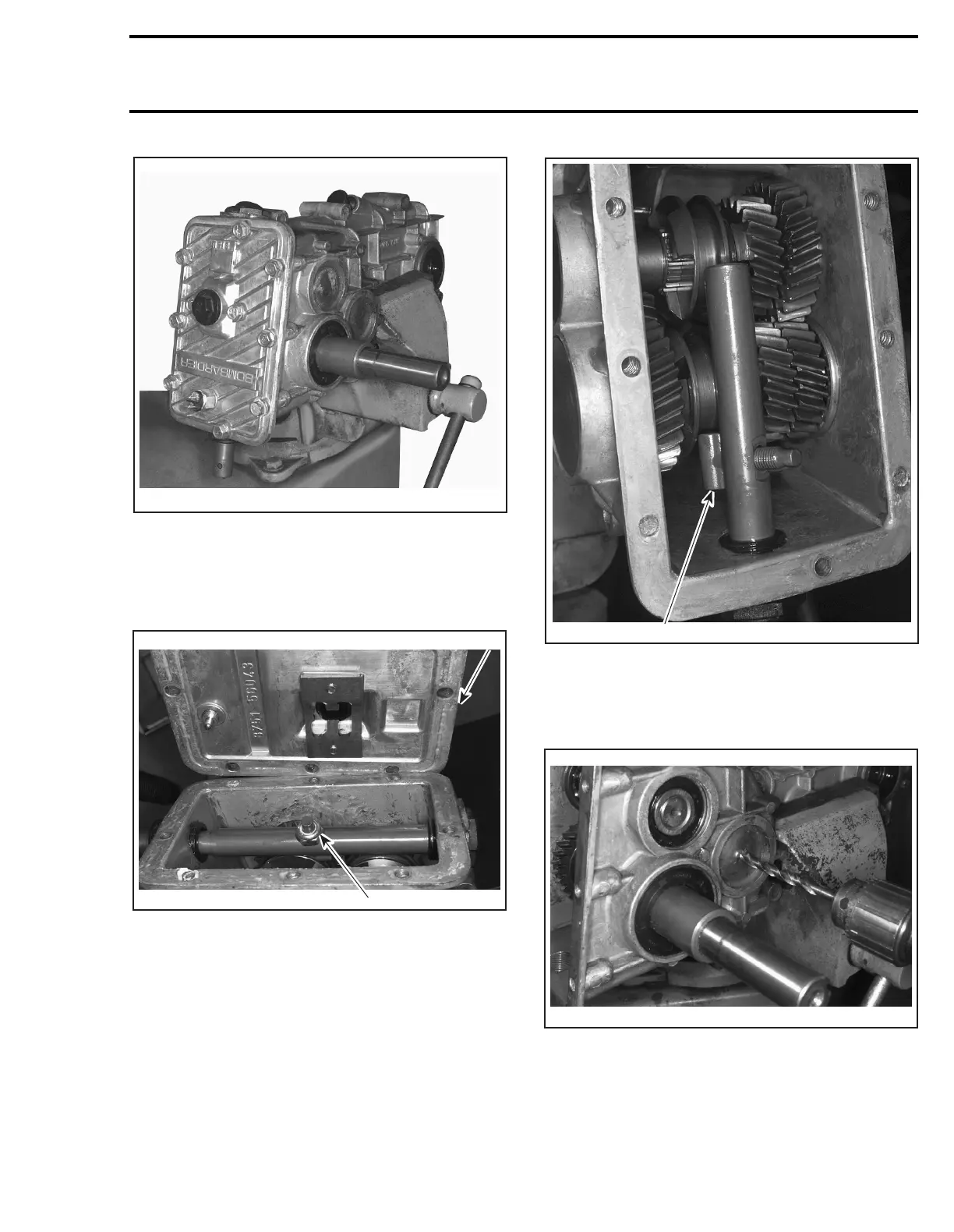

Remove dipstick
no. 17
. Unfasten cover
no. 2
from gearbox housing.
Remove nut
no. 3
retaining pin
no. 6
.
1. Cover
2. Nut
Unfasten sleeve nut
no. 4
, remove spring
no. 7
then, partially pull shaft
no. 5
and remove pin
no. 6
.
1. Pin
Completely remove shaft
no. 5
.
Drill a 10 mm (3/8 in) dia. hole through all plugs
no. 8
.
Remove all plugs
no. 8
from gearbox.
