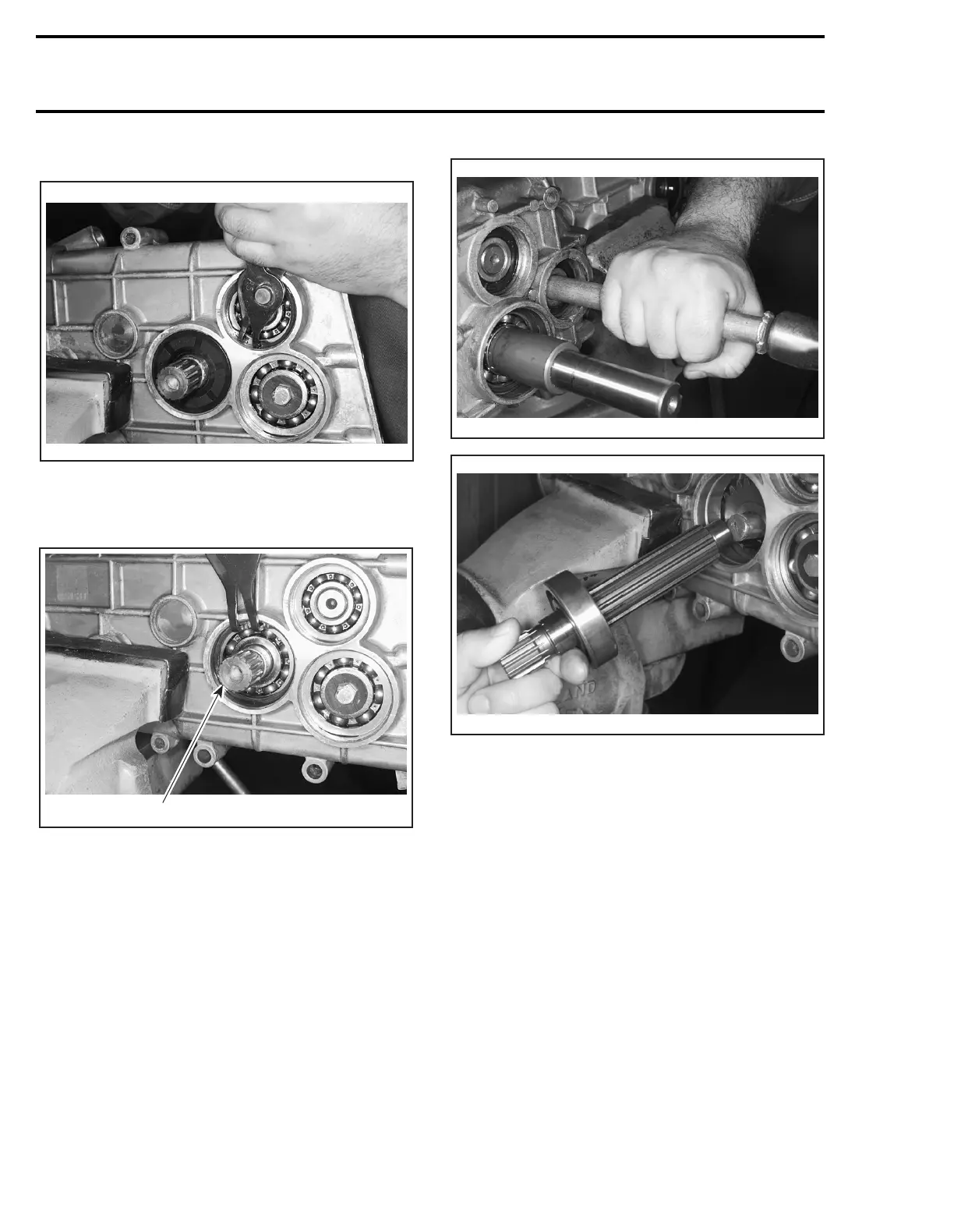

Remove all circlips
no. 9
.
IMPORTANT:
Note all shims quantity and loca-
tion.
Remove brake shaft oil seal then, circlip.
1. Brake shaft
Proceeding from right side, drive brake shaft out
of gearbox housing.
Remove sleeve
no. 23
.
NOTE:
Brake shaft gears remain in gearbox hous-
ing.
Remove bearing
no. 27
from brake shaft
no. 23
using a press.
A29D0TA
A29D0UA
1
A29D0VA
A29D0WA
