Section 01 TOOLS AND PRODUCTS
Subsection 01 (SERVICE TOOLS)
01-01-3

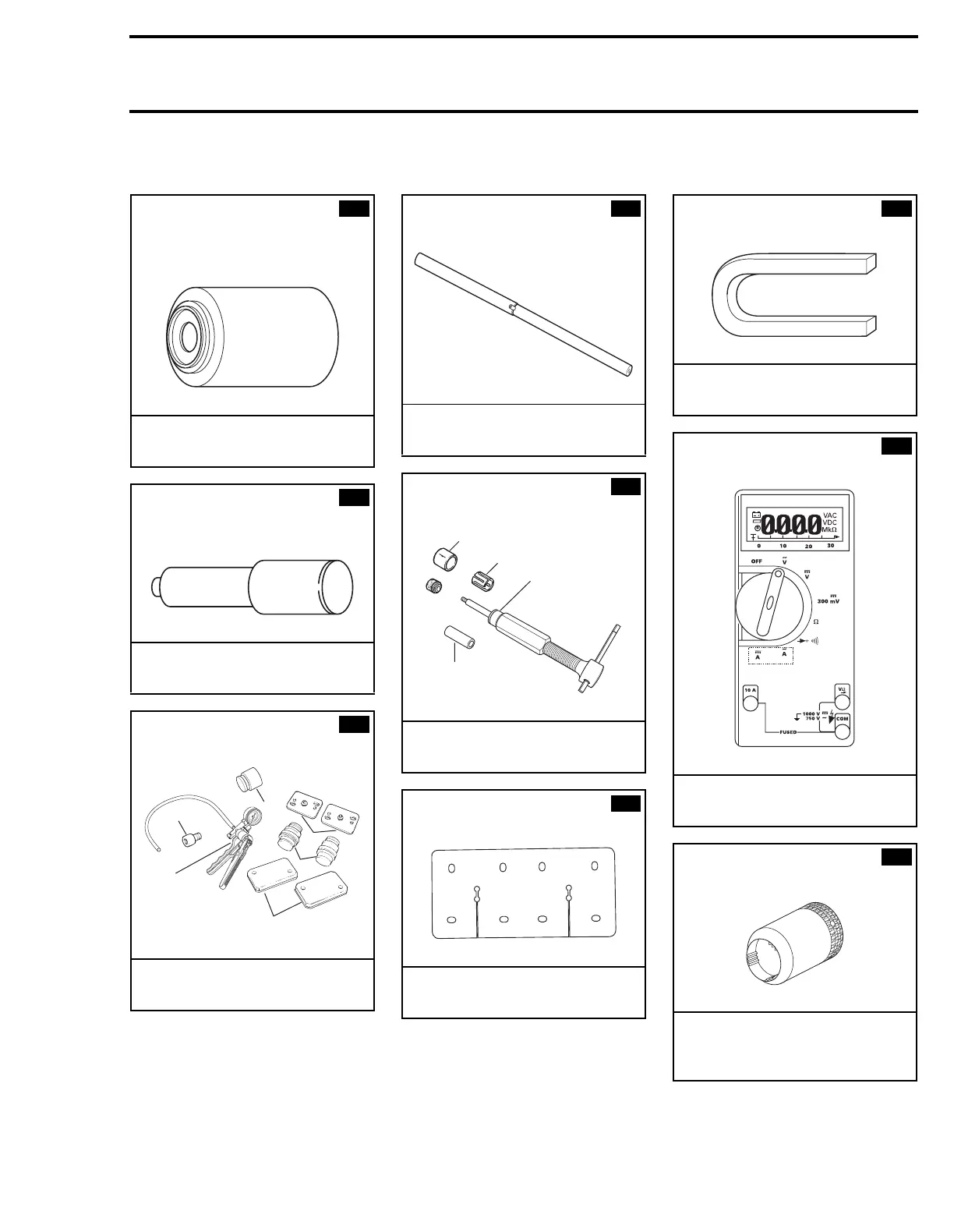

ENGINE (continued) — MANDATORY SERVICE TOOLS
Rotary valve shaft
seal pusher
(outer, water pump side)
(P/N 420 8770 50)
A00C0X4
APPLICATION
Rotary valve engines.
Bearing pusher
(rotary valve)
(P/N 420 8765 00)
A00B2J4
APPLICATION
Rotary valve engines.
Engine leak tester kit
(P/N 861 7491 00)
A01B2D4
APPLICATION
All engines.
11
12
14
1
2
4
6
5
3
Choke plunger tool
(P/N 529 0321 00)
A01C5D4
APPLICATION
All models equipped with chokes.
Piston pin puller
(P/N 529 0290 00)
A01B4H4
APPLICATION
All engines.
Rubber pad
(P/N 529 0234 00)
A01B4C4
APPLICATION
All cageless bearing engines.
19
16
1
2
4
3
17
Rotary valve circlip tool
(P/N 529 0291 00)
A00C3I4
APPLICATION
All rotary valve engines.
Fluke multimeter
(P/N 529 0220 00)
F01B1O4
APPLICATION
All models.
Choke nut tool
(P/N 529 0322 00)
A01B554
APPLICATION
All vehicles equipped with a
choke.
