Ski-Doo Summit 583 1998 - Page 23

Section 01 TOOLS AND PRODUCTS
Subsection 01 (SERVICE TOOLS)
01-01-4

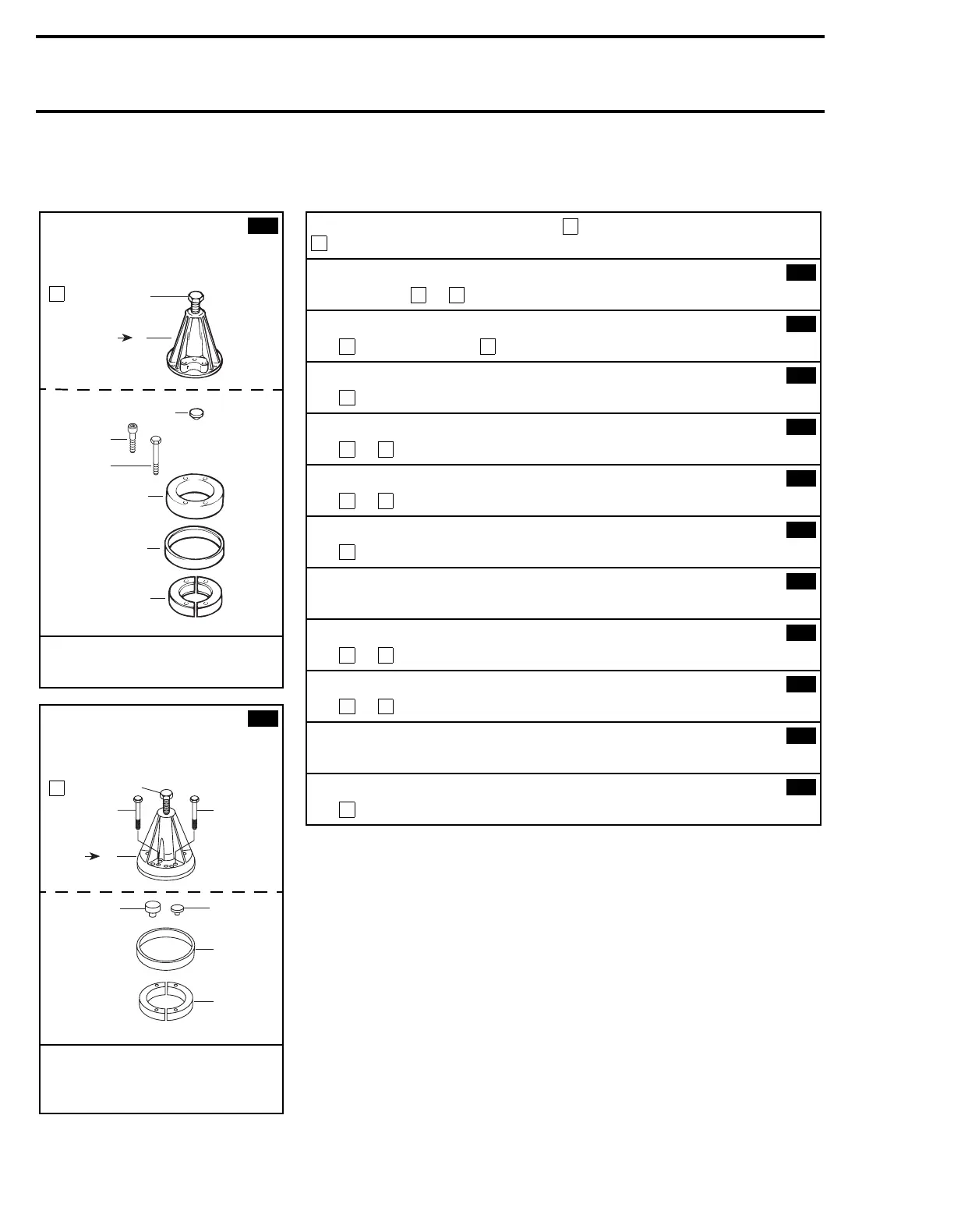

ENGINE (continued) — RECOMMENDED SERVICE TOOLS
The following tools are highly recommended to optimize your basic tool kit and reduce repair time.
1-2)Crankshaft bearing
puller with screw
(P/N 420 8762 98)
A00C3L5
APPLICATION
443, 503 and 583 engines.
1-2)Crankshaft bearing
puller with screw
(P/N 420 8776 35)
A01B545
APPLICATION
443, 494, 503, 583 and 670
engines.
200
2
3
4
9, 10
7
8
5,6
1 2
A
250
33
5
6
2
8,11
9,10,12
1 2
B
Use with crankshaft bearing pullers (P/N 420 8762 98) or
(P/N 420 8776 35).
2) Bolt (M16 x 1.5 x 150) (P/N 420 9407 55)
For either or pullers.
3) Screw M8 x 40 (qty 4) (P/N 420 8406 81)
puller MAG side, puller MAG and PTO side.
4) Screw M8 x 70 (qty 4) (P/N 420 8412 01)
puller only, PTO side.
5) Crankshaft protector PTO (P/N 420 8765 52)
or puller; all engines.
6) Crankshaft protector MAG (P/N 420 8765 57)
or puller; all engines.
7) Distance ring PTO (P/N 420 8765 69)
puller; 443, 503 and 583 engines.
8) Puller ring (P/N 420 9774 90)
Use with half rings (P/N 420 9774 75 or 420 2760 25).
9) Half ring (2) (P/N 420 9774 75)
or puller; for 72 mm O.D. bearings.
10) Half ring (P/N 420 2760 25)
or puller; for 62 mm O.D. bearings.
11) Puller ring (P/N 420 9774 94)
For half rings (P/N 420 9774 79).
12) Half ring (P/N 420 9774 79)
puller only; 80 mm O.D. bearings.
A
B
258
A B
559
A B
560
A
259
A B
554
A B
557
A
555
556
A B
558
A B
251
252
B
