Ski-Doo Summit 583 1998 - Page 24

Section 01 TOOLS AND PRODUCTS
Subsection 01 (SERVICE TOOLS)
01-01-5

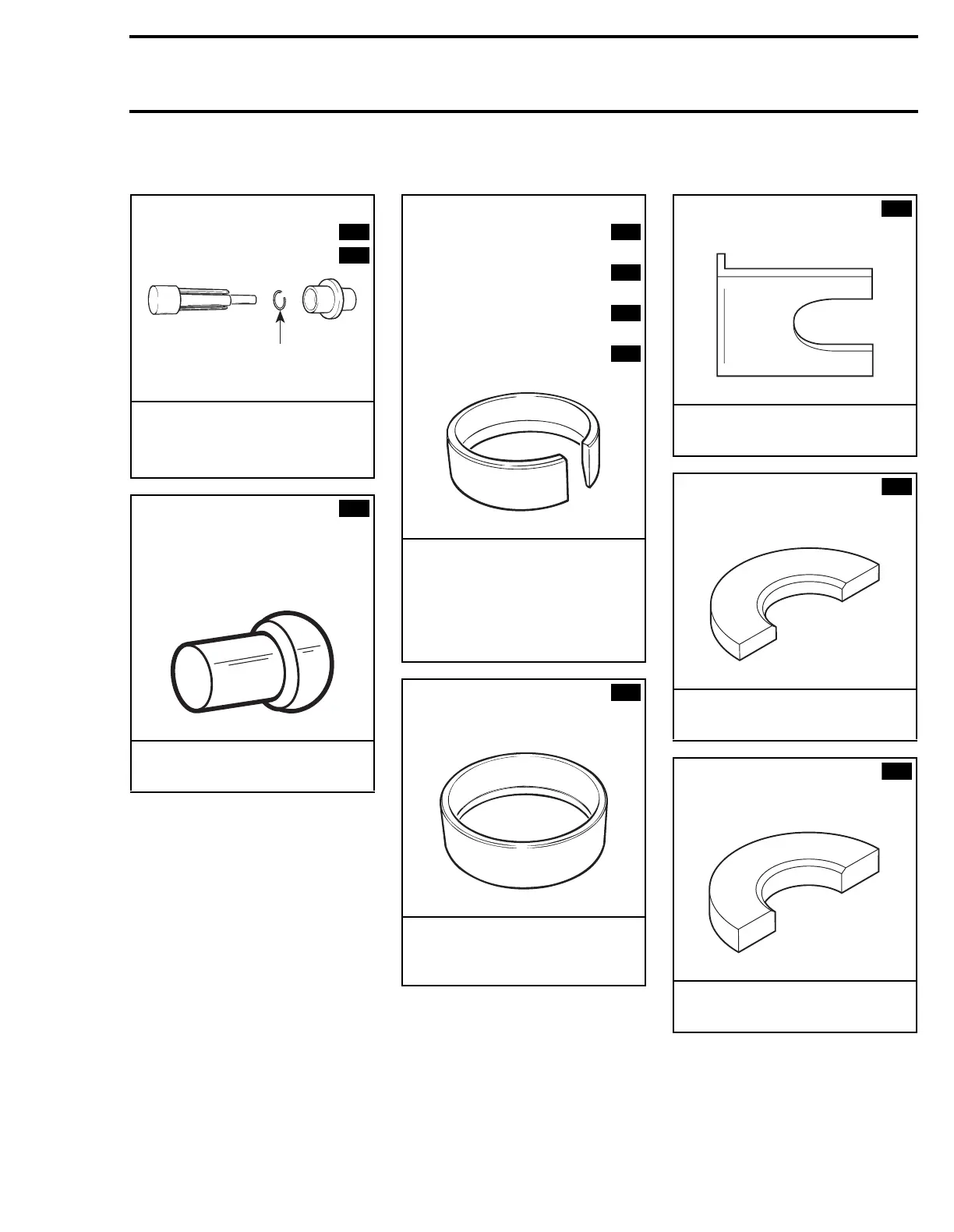

ENGINE (continued) — RECOMMENDED SERVICE TOOLS
Piston circlip installer
A) (P/N 529 0169 00)
B) (P/N 290 8770 16)
A01B1P4
APPLICATION
A) All engines except 670.
B) 670 engines.
Piston pin/connecting
rod bearing centering tool
(P/N 529 0091 00)
NOTE:
New diameter is 9.65 mm
(0.380’’).
A01B1R4
APPLICATION
All engines.
202
548
Piston
circlip
203
Ring compressor
A) (P/N 420 8760 90)
(62 mm)
B) (P/N 420 8769 70)
(72 mm)
C) (P/N 420 8769 72)
(76 mm)
D) (P/N 529 0308 00)
(78 mm)
A01B1T4
APPLICATION
A) 443 engine.
B) 503 engine.
C) 583 engine.
D) 670 engine.
Magneto coil centering
ring
(P/N 420 8769 22)
A01B1V4
APPLICATION
All engines with Nippondenso CDI
(160 W).
204
206
207
262
209
Crankshaft feeler gauge
(P/N 420 8766 20)
A00C114
APPLICATION
443 and 503 engines.
Crankshaft distance
gauge (5.7 mm)
(P/N 420 8768 22)
A00C294
APPLICATION
443 engine.
Crankshaft distance
gauge (12.7 mm)
(P/N 420 8768 24)
A00C3A4
APPLICATION
503 engine.
216
217
218
