SKOPE Reflex Underbench Fridge and Freezer
Replacement Procedures
Service Manual
Lights - Red
UNPLUG
Door switch - White
Ambient probe - White
Condenser probe - Red
Evaporator probe - Blue
Control probe - Black
UNPLUG
Controller to loom - White and Yellow
UNPLUG
Compressor - Blue
UNPLUG
Controller - Blue and Red
UNPLUG
Defrost element - Yellow
UNPLUG
Evaporator fan - White
UNPLUG
Condenser fan - Red
Cabinet elements - Black
Lights - White
To controller
To controller

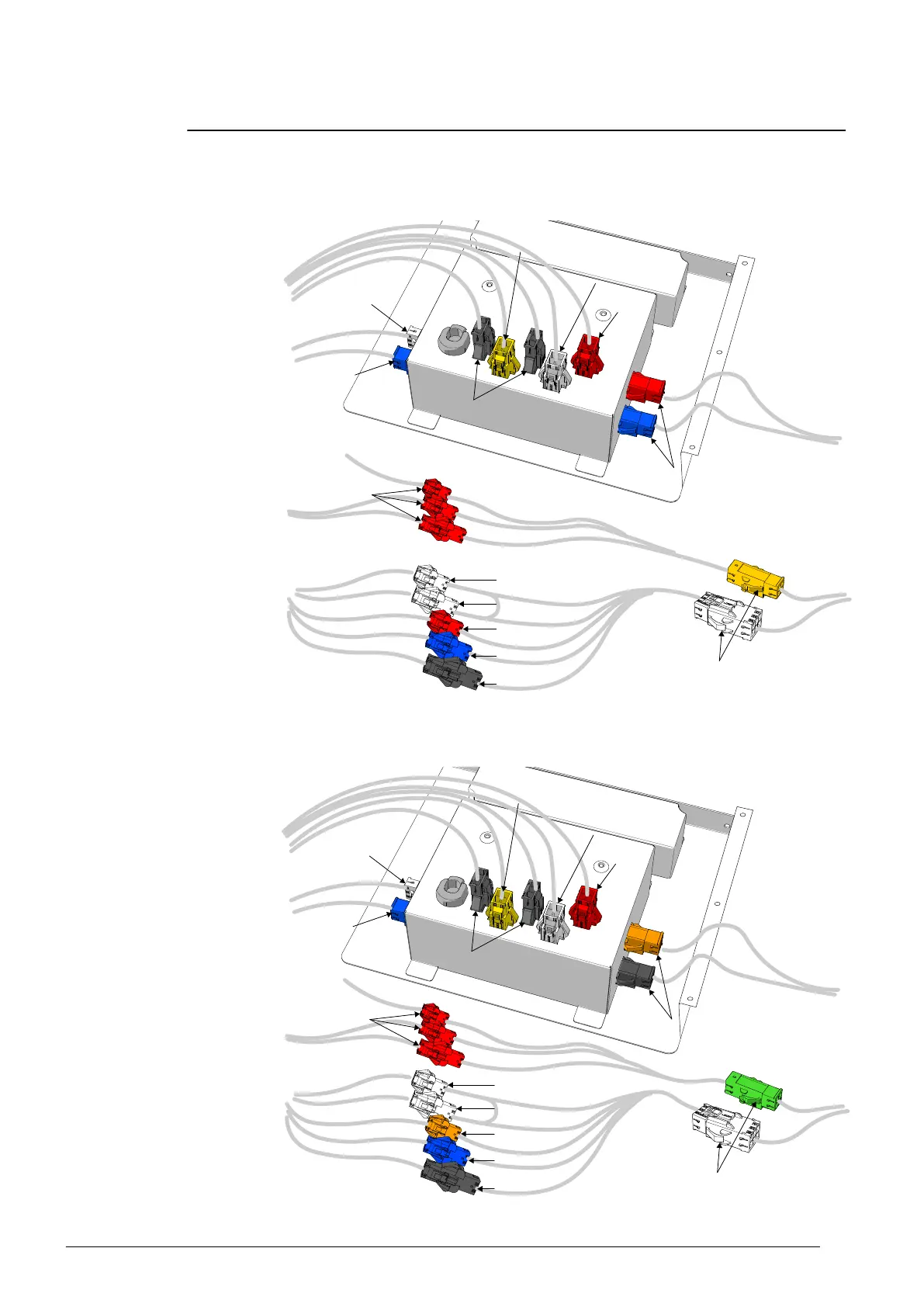

6. Electrics panel and loom electrical connections.
Unplug as pictured
Lights - Red
UNPLUG
Door switch - White
Ambient probe - White
Condenser probe - Orange
Evaporator probe - Blue
Control probe - Black
UNPLUG
Controller to loom - White and Green
UNPLUG
Compressor - Blue
UNPLUG
Controller - Black and Orange
UNPLUG
Defrost element - Yellow
UNPLUG
Evaporator fan - White
UNPLUG
Condenser fan - Red
Cabinet elements - Black
Lights - White
To controller
To controller
Manufactured before February 2020
Due to the use of limited colour connectors, 2 × red 4-way and 2 × yellow 4-way connectors have been used.
Always ensure that you reconnect the plugs correctly, as operational faults may occur otherwise.
Manufactured from February 2020 onwards
