Replacement Procedures
Service Manual
SKOPE Reflex Underbench Fridge and Freezer

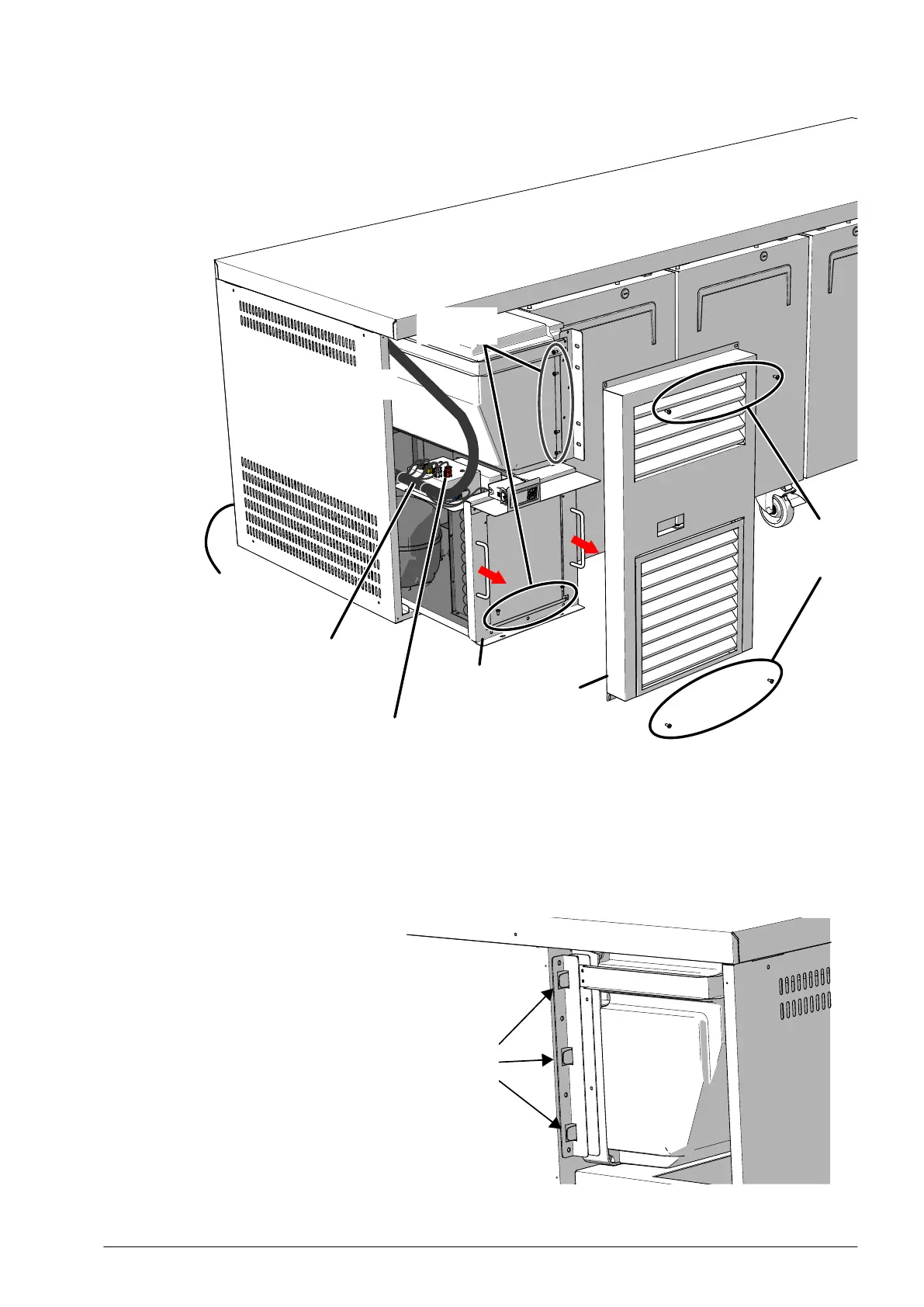

4. Electrical
cables and
cable ties
Cartridge
2. Front panel
3. Cartridge
screws
1. Power cord
and cable tie
7. Detach electrics panel and
electronic controller from
cartridge (5 × screws).
9. Tabs and
slots (back
panel
removed)
2. Front panel
screws
Numbers relate to Procedure 15, on page 32.
