Section 5 – Procedures Wear Pad Replacement

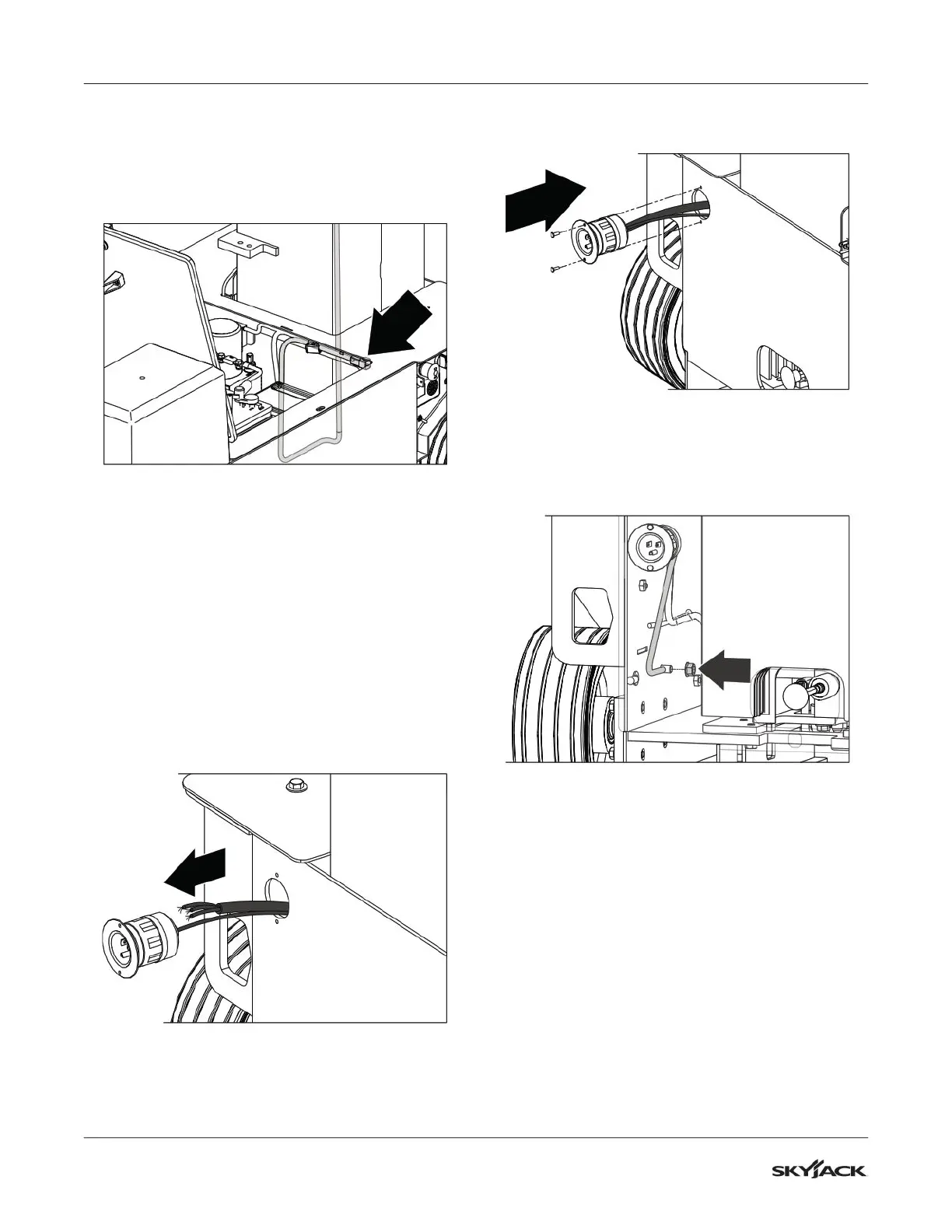

12. Open the service compartment cover.
13. Connect the mast connector to the main harness.
14. Use tie wraps to secure the mast cable to the
existing cable bundles.
15. Close the service compartment cover.
16. Route the AC power cable towards the rear of the
machine and out the AC inlet hole.
17. Connect the AC power cable to the inlet.
▪
Green wire to the green terminal
▪
Black wire to the bronze terminal
▪
White wire to the silver terminal
18. Use new pop rivets to mount the AC inlet to the
chassis.
19. Use the nut removed earlier to secure the green
ground wire from the AC inlet to the chassis.
20. Use tie wraps to secure the AC power cable to the
existing cable bundles.
5.13-8 Install the lift cylinders and platform
1. Install the lift cylinders. Refer to section 5.10 Lift
Cylinder Installation.
2. Install the platform. Refer to section 5.8 Platform
Installation.
