Skyjack SJ20 Service Manual

A B C D E F G H
V
Z
Y
X
W
48
SJ20
238886ABA

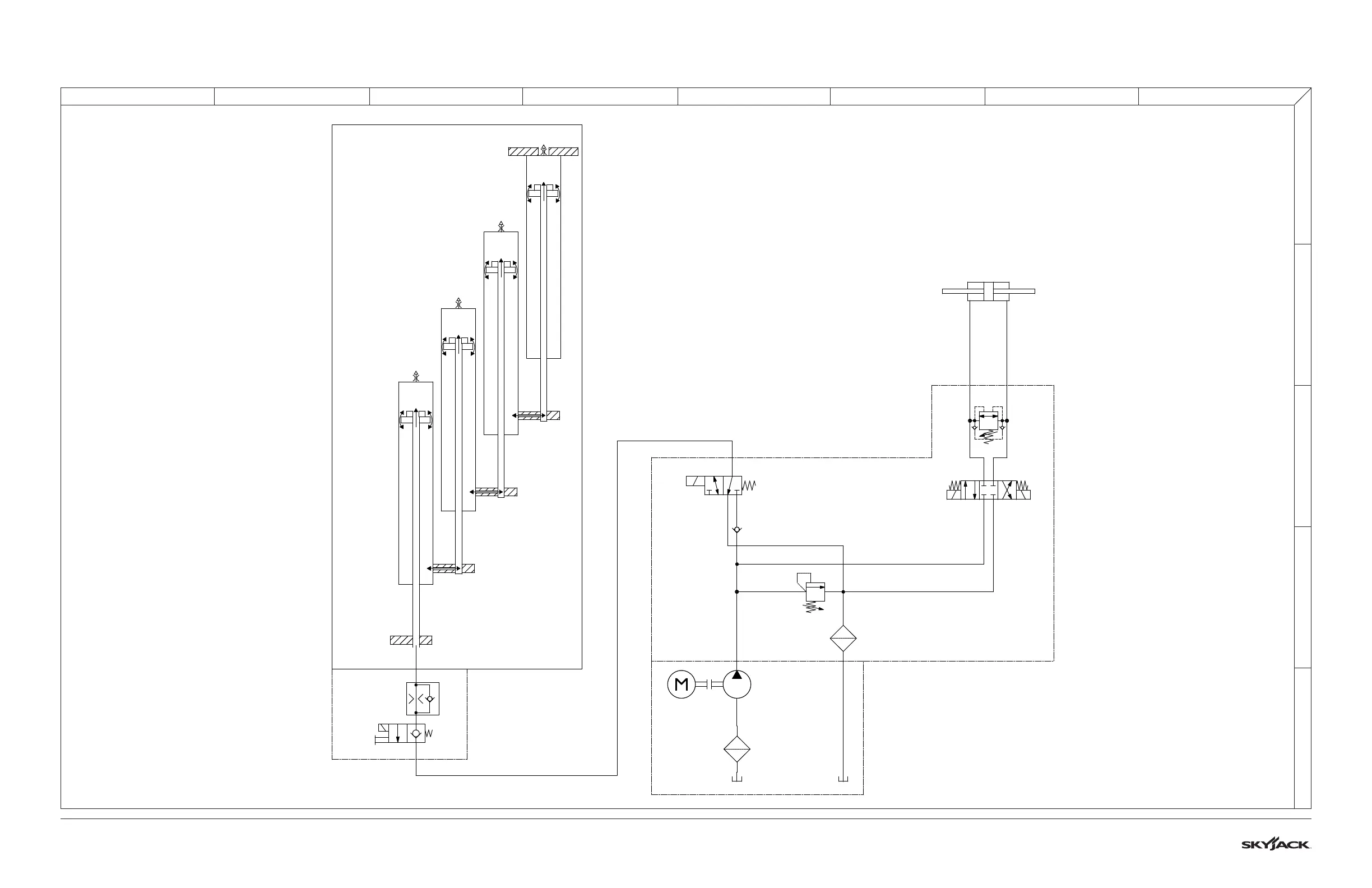

3.17 Hydraulic Schematic
M234001AB
0.079 in
C5
RV2
RV1
CV1
OR1
2H-13
3H-14
4H-23
4H-24
P1
F1
F2
3.59 CC/REV
LIFT
S1
S2
MB1
SV3
SV1
SV2
2900 - 6400 RPM
C1
C2
C3
C4
2000 psi
LIFT
CYLINDER
STEERING CYLINDER
3000
psi
CHASSIS
PLATFORM

Skyjack SJ20 Specifications

General

Brand	Skyjack
Model	SJ20
Category	Lifting Systems
Language	English
