101
SJ20 238886ABA

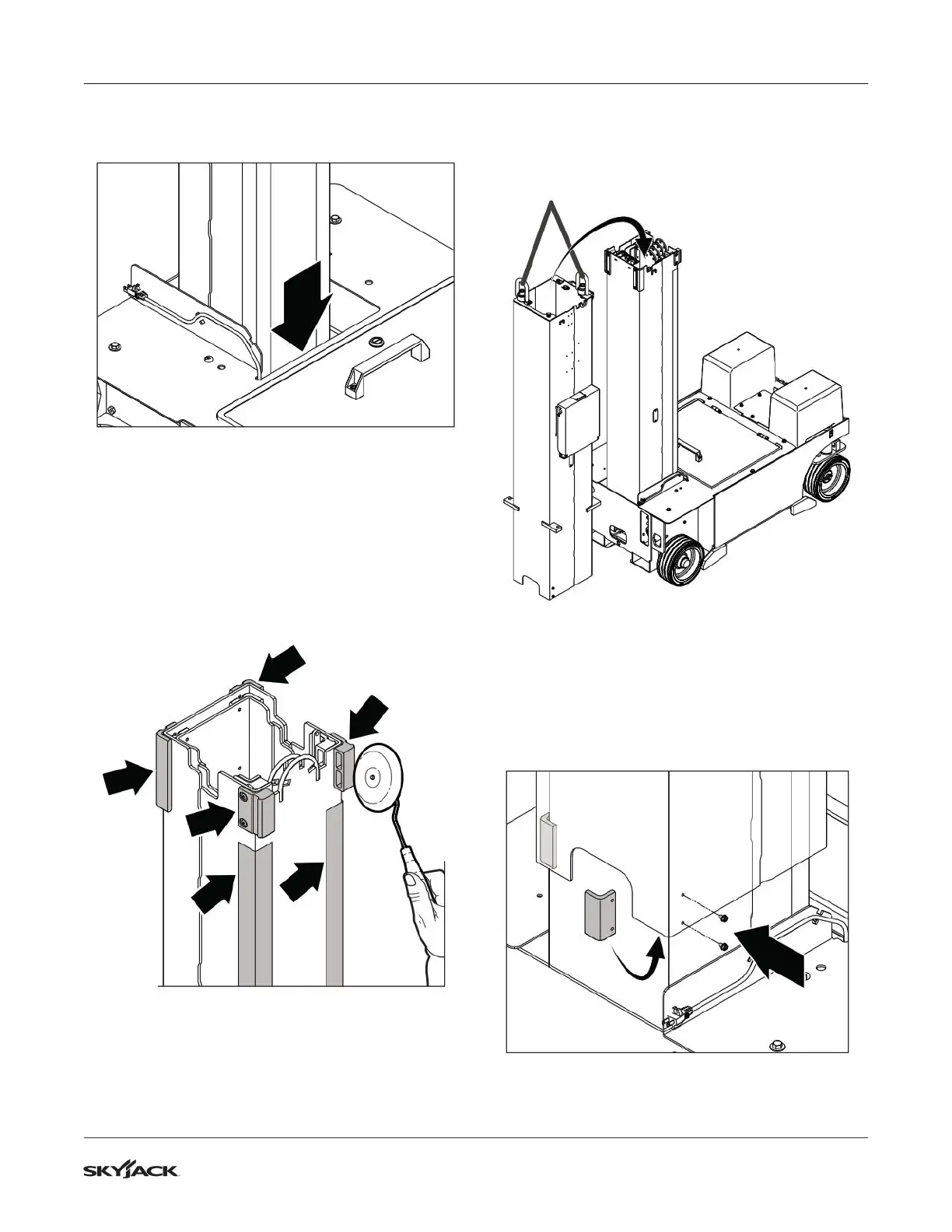

Section 5 – ProceduresWear Pad Replacement
10. Fully lower mast 2 onto the chassis.
11. Lubricate the four wear pads and the two front
corners all the way down mast 2.
12. Repeat steps 2 through 11 for masts 3 to 4.
5.13-7 Install the mast 5 and bottom wear
pads
1. Use hoist rings and lifting straps to put mast 5
onto the chassis.
2. Keep the mast 5 raised so that the bottom part is
visible.
3. Use new thread rolling screws to attach two new
thin and short wear pads (234169) to the rear of
the mas.
