45
SJ20 238886ABA
Section 3 – System Component Identification and SchematicsMotor and Controller Connections

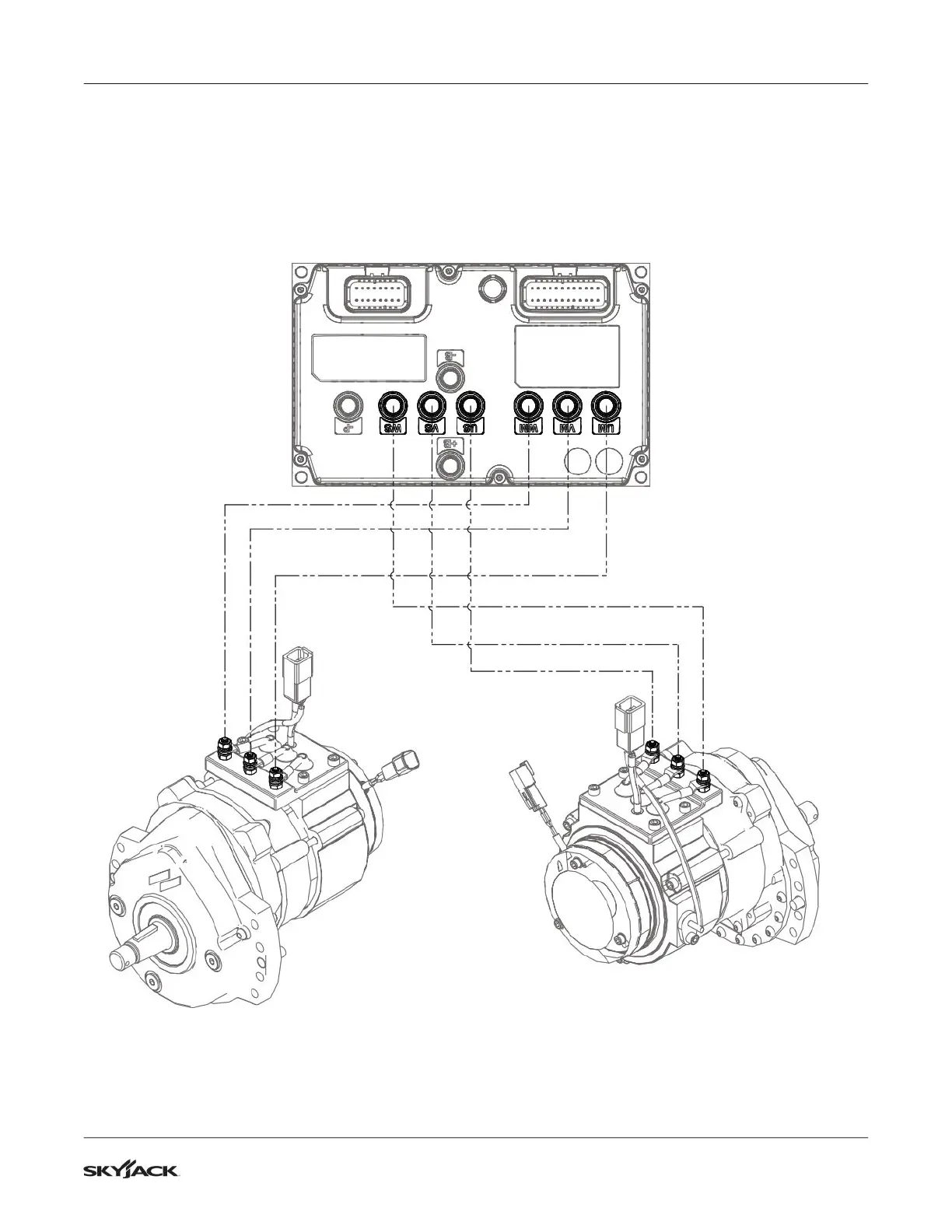

3.14 Motor and Controller Connections
M234099AC
Power Unit
Left Motor
Right Motor
SW
SW
SV
SV
SU
SU
