Section 5 – ProceduresMast and Lift Cylinder Installation
5.12 Mast and Lift Cylinder
Installation

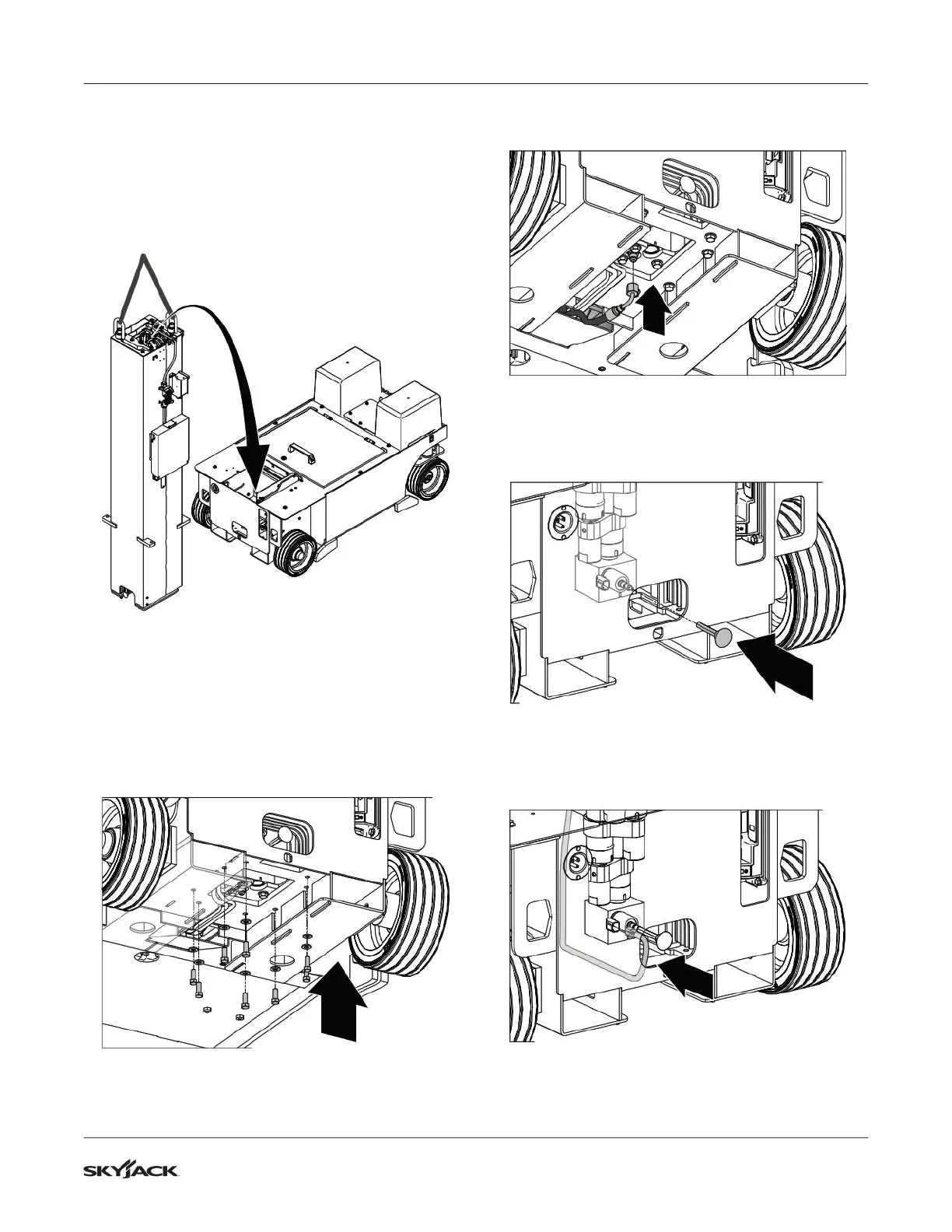

1. Use lifting straps and hoist rings to raise the mast
and lift cylinder and install it onto the chassis.
Make sure the holding valve coil faces the rear of
the machine.
2. Use the bolts and washers removed earlier to
secure the mast assembly to the chassis.
3. Connect the hydraulic hose to the holding valve
fitting.
4. Install the hex standoff and red knob on the
holding valve manifold.
5. Connect the electrical connector to the holding
valve coil.
