Section 5 – ProceduresMast and Lift Cylinder Removal
5.11 Mast and Lift Cylinder
Removal

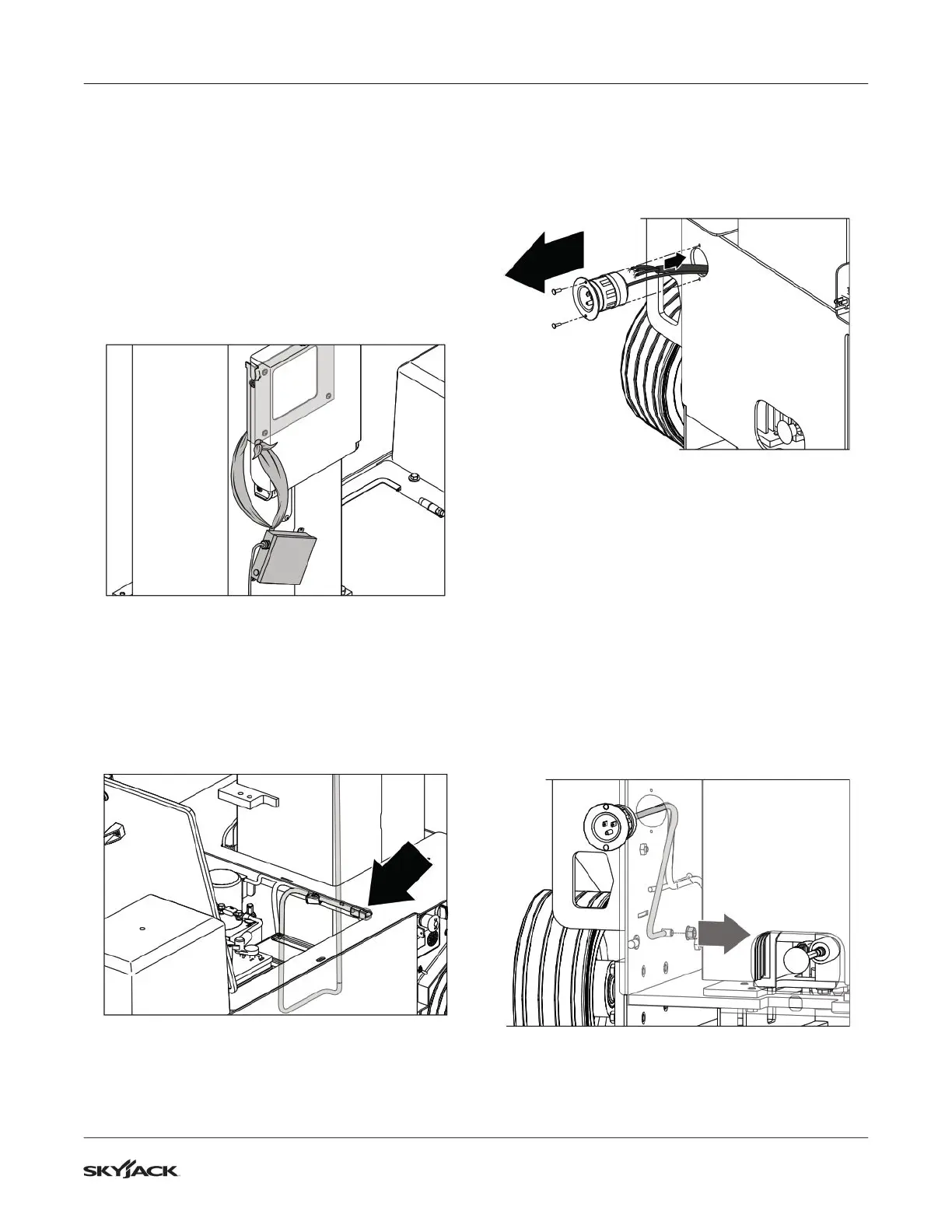

1. Remove the platform and set it aside on a
protective surface. Refer to section 5.7 Platform
Removal.
2. Use a sling to secure the junction box to the
manual box bracket. Make sure the junction box
does not hang from the load cell wires when the
mast assembly is removed later.
3. Open the service compartment cover.
4. Disconnect the mast connector from the main
harness.
5. Cut zip ties along the cable bundles to free the
mast cable.
6. At the rear of the machine, drill out the rivets that
secure the AC inlet to the chassis.
7. Pull out the AC inlet.
8. Disconnect the wires from the back of the AC
inlet.
9. Remove and set aside the nut that secures the
ground wire to the chassis. You may need to
remove the chassis cover to access the wire.
10. Cut the tie wraps that secure the AC power cable
to the cable carrier and existing cable bundles.
To Next Page
