85
SJ20
238886ABA
Section 5 – Procedures

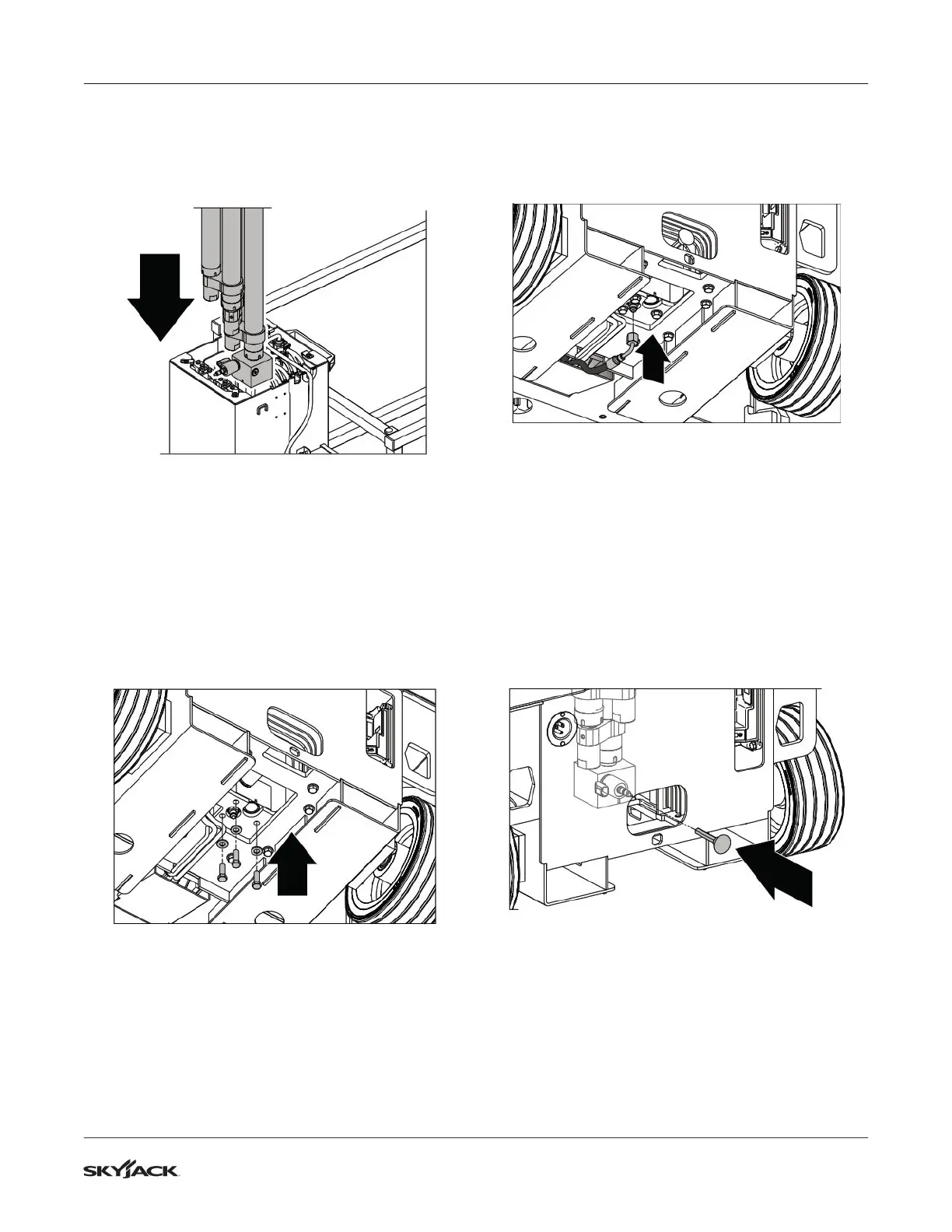

Lift Cylinder Installation
5.10
Lift Cy
lind
er In
stal
latio
n
1.
Use lifting straps to raise the lift cylinder and
install it inside the mast. Make sure the holding
valve coil faces the rear of the machine.
2.
Use the bolts and washers removed earlier to
secure the lift cylinder from the bottom of the
chassis.
3.
Connect the hydraulic hose to the holding valve
fitting.
4.
Install the hex standoff and red knob on the
holding valve manifold.
84
86
