90
Section 5 – Procedures Mast and Lift Cylinder Installation

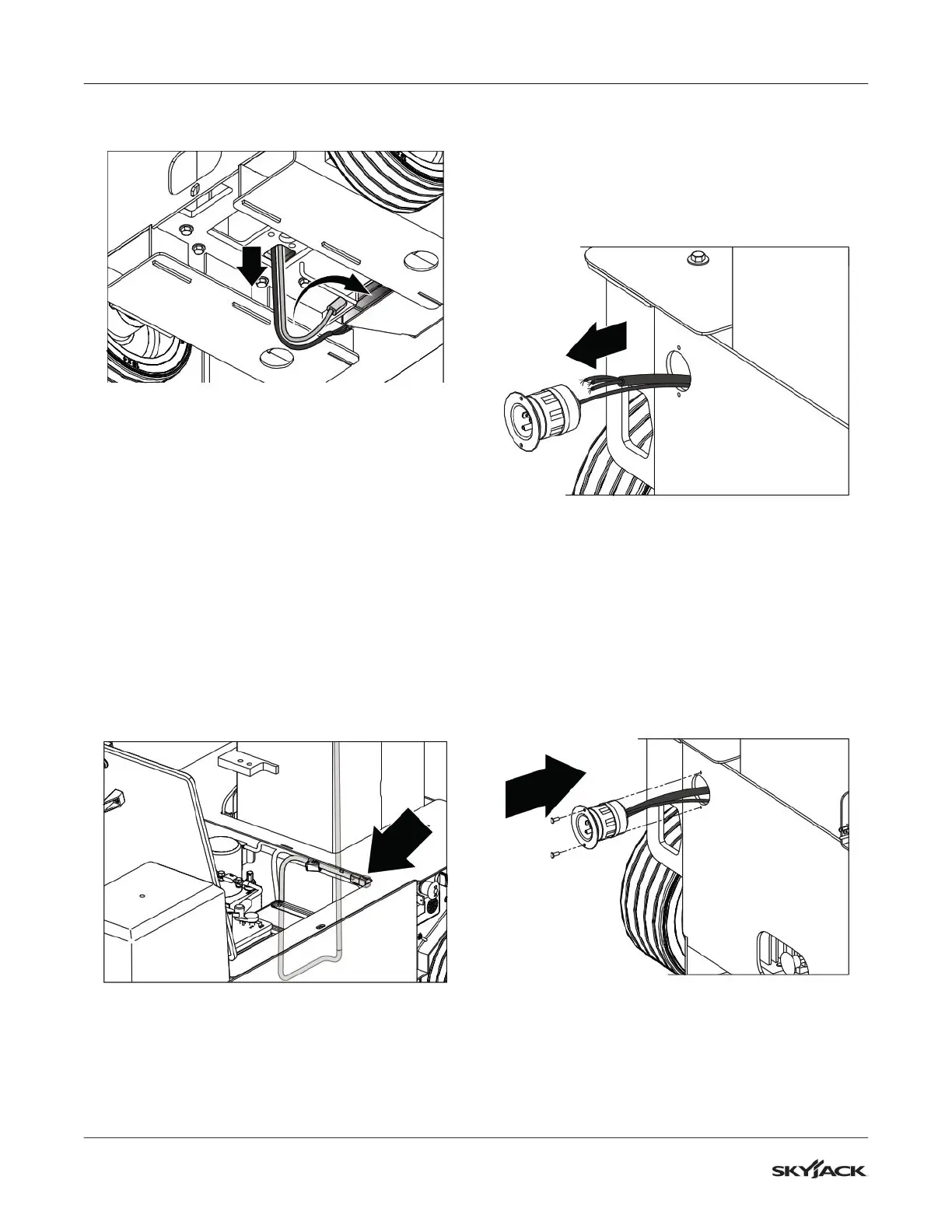

6. Route the mast cable and AC power cable
towards the hole below the chassis.
7. Open the service compartment cover.
8. Connect the mast electrical connector to the main
harness.
9. Use tie wraps to secure the mast cable to the
existing cable bundles.
10. Route the AC power cable towards the rear of the
machine and out the AC inlet hole.
11. Connect the AC power cable to the inlet.
▪
Green wire to the green terminal
▪
Black wire to the bronze terminal
▪
White wire to the silver terminal
12. Use new pop rivets to secure the AC inlet to the
chassis.
