91
SJ20
238886ABA
Section 5 – Procedures
Mast and Lift Cylinder Installation
13.

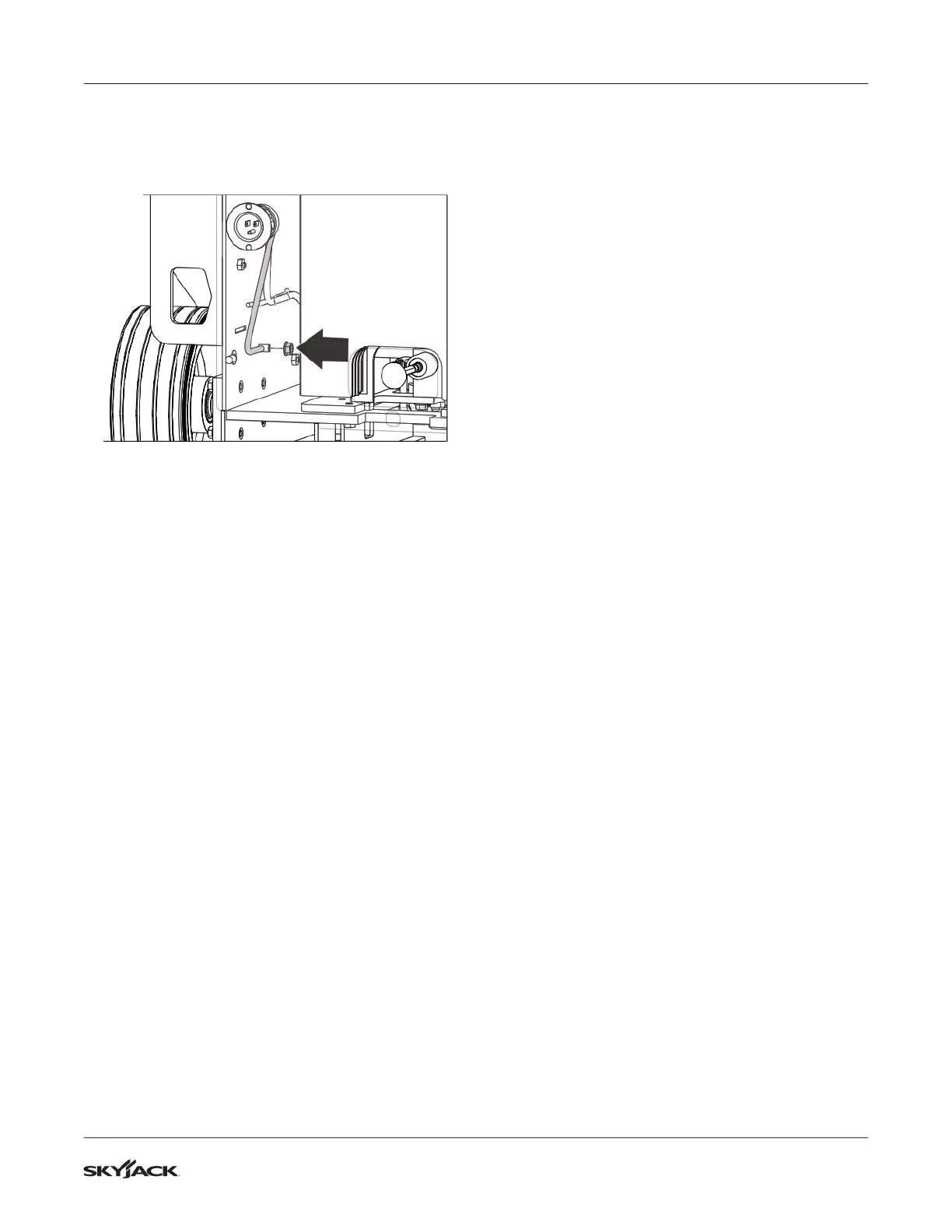

Use the nut removed earlier to secure the green
ground wire from the AC inlet to the chassis
14.
Use tie wraps to secure the AC power cable to the
existing cable bundles.
15.
Install the platform. Refer to section
5.8 P
latform
Instal
lation
.
90
92
