Section 5 – Procedures Wear Pad Replacement

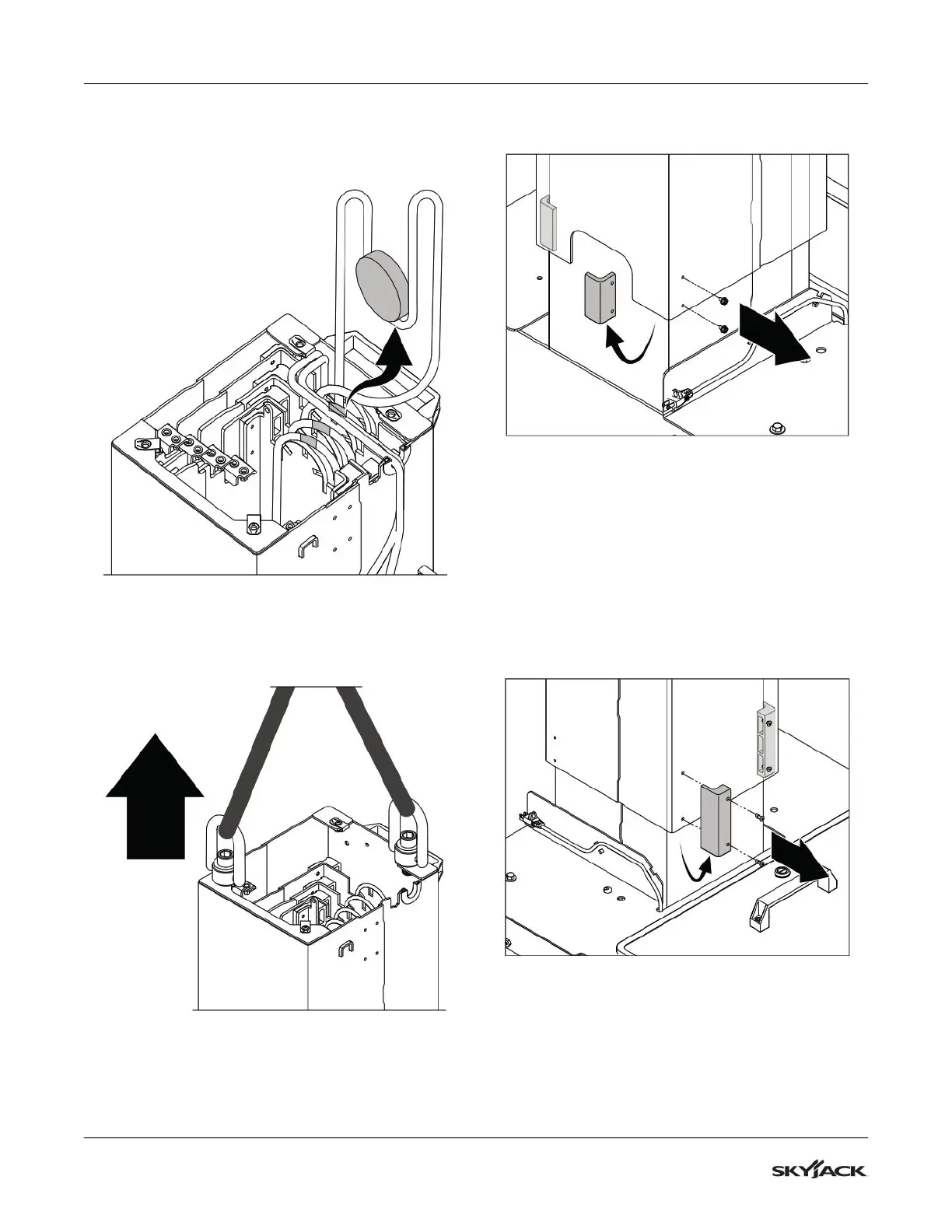

13. Slowly pull the loose mast cable upwards. There
will be four steel weighted rollers at the bottom of
each cable coil. Set the steel weights and mast
cable aside.
14. Use hoist rings and lifting straps to raise mast 5
until the bottom wear pads are visible.
15. Remove and discard the rear wear pads and
thread rolling screws from the bottom of the mast.
16. Remove and discard the front wear pads and pop
rivets from the bottom of the mast.
