Skyjack SJ30ARJE User Manual

158
SJ30AJE, SJ30ARJE196274AF
Section 5 – Procedures Base
IMPORTANT
Step “c” must be completed within a 5 second
period, or the switch will automatically exit
program mode and return to normal operation
using the previously stored data.
c. Press and release the set up button 3 times.
d. If the 5 second period has expired prior to
completion, repeat steps “a”, “b” and “c”.

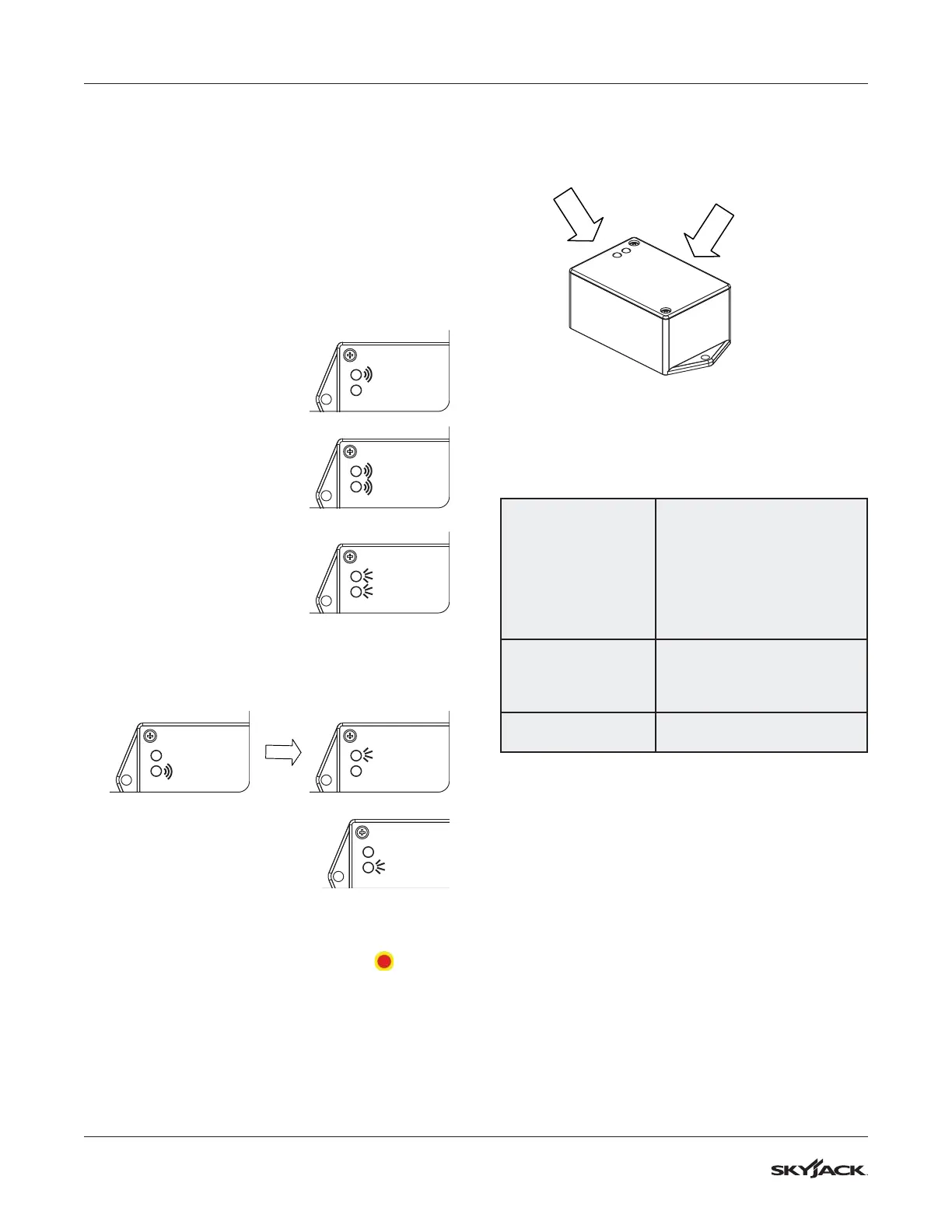

e. Observe the program
delay / stabilization
time (only the red LED
blinks for 4 seconds).
Red LED
Green LED
f. Both LEDs flash for
1 second.
Results: The switch is
learning the new zero
position.
Red LED
Green LED
g. Both LEDs turn on
solid for 1 second.
Results: The new
zero position has been
learned.
Red LED
Green LED
h. The green LED flashes and then the red LED
turns on solid for 2 seconds.
Results: The switch is verifying the new zero
position.
Red LED
Green LED
Red LED
Green LED
i. The green LED turns
on solid.
Results: The switch
is ready for normal
operation.
Red LED
Green LED
9. Disconnect one of the main power connectors.
10. Push in the emergency stop buttons .
11. Remove the chock or wheel blocks.
12. Proceed to Test and Verify Tilt Circuit.
Verify the Tilt Circuit
Red LED
Green LED
Indicator Lights
The set up button is located on this
face next to harness
Operations of the Tilt Switch
The following describes the LED’s and what they
indicate.
Green LED
Illuminated whenever both tilt
axes are within the specified
degrees of the zero/ home
learned position.
Flashes when transitioning in
or out of tilt angle limits, but
built in time delay has not fully
occurred.
Red LED
Illuminated whenever tilt on one
or more axes is more than the
specified degrees out from the
zero/ home position.
Green & Red LED
On together, no blinking when
fault detected.
