Skyjack SJ30ARJE User Manual

54
SJ30AJE, SJ30ARJE196274AF
Section 3 – System Component Identification and Schematics Jib Valves and Port Identifications

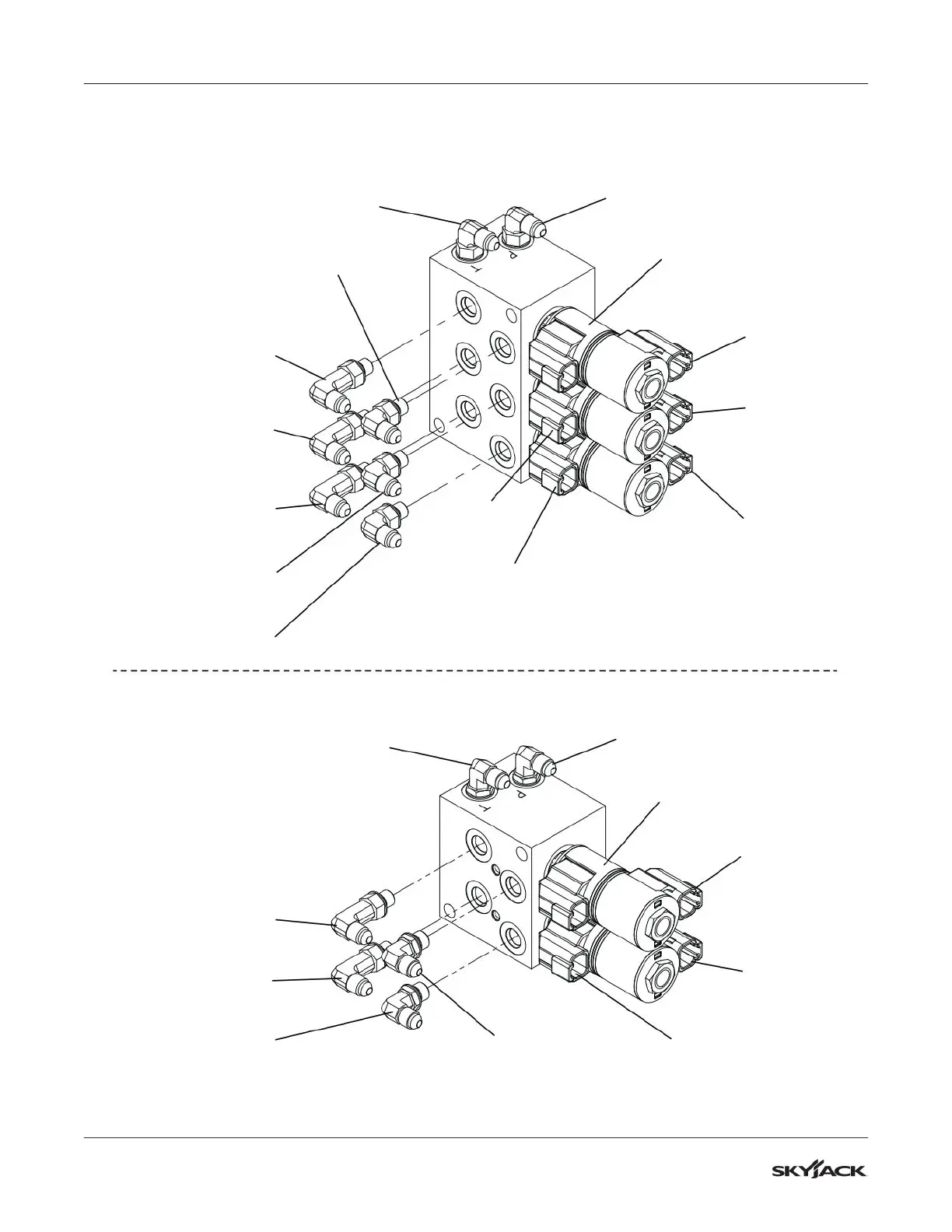

3.6 Jib Valves and Port Identifications
JL
JR
JA
JB
PA
PB
JA
JB
PA
PB
JB
To Jib Cylinder (Retract)
PB
To Platform Rotator (Left)
JL
To Jib Rotator (Left)
PA
To Platform Rotator (Right)
JA
To Jib Cylinder (Extend)
T
To Main Manifold (T2)
P
To Main Manifold (POUT)
JR
To Jib Rotator (Right)
4H-35
Jib Up
4H-34
Jib Down
4H-37
Platform Right
4H-36
Platform Left
4H-43
Jib Right
4H-42
Jib Left
JB
To Jib Cylinder (Retract)
PB
To Platform Rotator (Left)
JA
To Jib Cylinder (Extend)
T
To Main Manifold (T2)
P
To Main Manifold (POUT)
JR
To Jib Rotator (Right)
4H-35
Jib Up
4H-34
Jib Down
4H-37
Platform Right
4H-36
Platform Left
SJ30AJE
SJ30ARJE
