A B C D E F G H
V
Z
Y
X
W
55
SJ30AJE, SJ30ARJE 196274AF
EB
To Extension Cylinder (Extend)
RB
To Riser Cylinder (Retract)
EB
To Extension Cylinder (Retract)
SWA
To Swing Drive Motor
RA
To Riser Cylinder (Extend)
SWB
To Swing Drive Motor
LB
To Boom Lift Cylinder (Retract)
LA
To Boom Lift Cylinder (Extend)
PLB
To Master Cylinder
PLA
To Master Cylinder
STL
To Steer Cylinder
STR
To Steer Cylinder
GP
To Test Port
T1
To Hydraulic Tank
POUT
To Jib Manifold
T2
To Jib Manifold
EB
EA
POUT
T2
RA
RB
SWB
SWA
STR
STL
PLA
PIN
T1
PLB
LB
LA
PIN
To Pumps

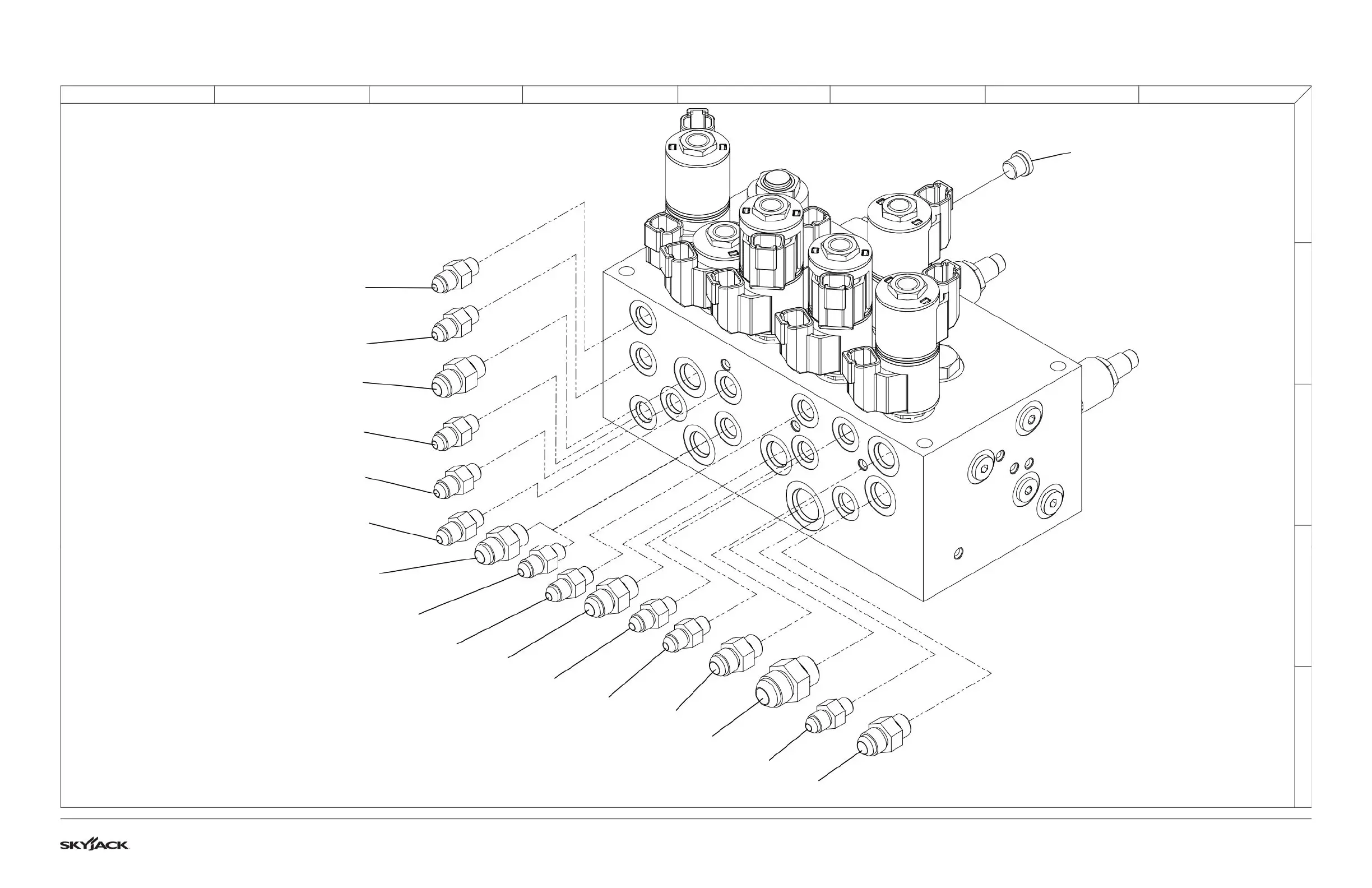

3.7 Main Manifold Hose Port Identification
M192161AC - 1
