HRX-OM-W002-A
Chapter 5 Display and Setting of Various Functions
5.5 Advanced setting mode
HRR Series
5-28

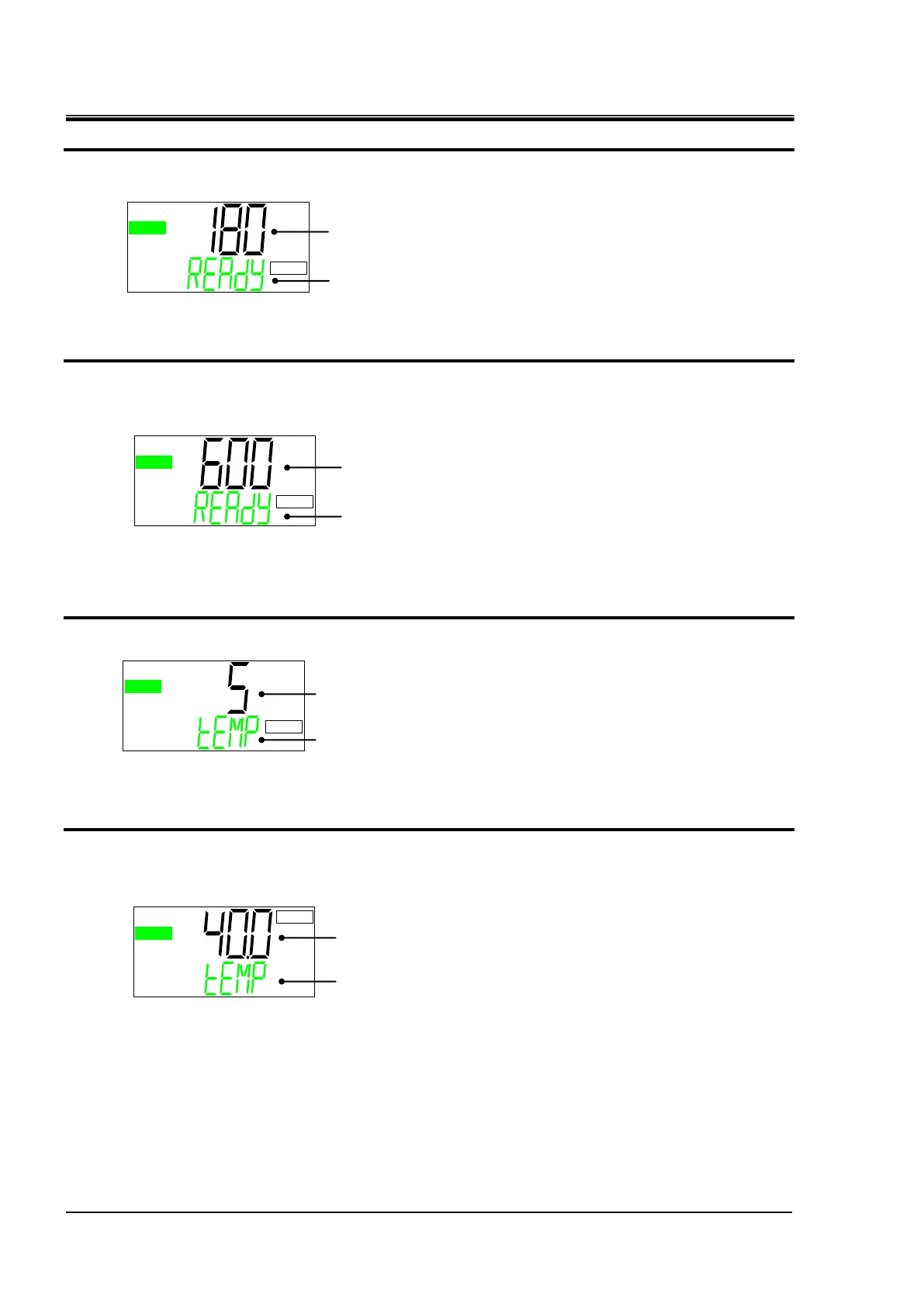

TEMP READY stability time
18. Press the [▼] key. Displays TEMP READY stability time setting screen.
TEMP READY alarm of monitoring start time
19. Press the [▼] key. Displays TEMP READY alarm of monitoring start time setting
screen.
For the function, refer to P.5 - 25 [TEMP READY function setting example].
Time TEMP READY remove
20. Press the [▼] key. Displays Time TEMP READY remove setting screen.
For the function, refer to P.5 - 25 [TEMP READY function setting example].
Maximum temperature range of temperature range monitoring function
21. Press the [▼] key. Displays Maximum temperature range of temperature range
monitoring function setting screen.
Temperature range monitoring function
When the circulating fluid temperature rises / falls, alarms "AL 14: circulating fluid
temperature range rise" or "AL15: circulating fluid temperature drop" can occur.
A TEMP OUT signal can be generated together with the alarm
signal.Here is an example showing these relationships.
RUN
SEC
READY TIME(Alternately displayed)
RUN
SEC
READY START(Alternately displayed)
RUN
SEC
Time TEMP READY remove (Setting range0 to 600 sec)
TEMP OVER(Alternately displayed)
RUN
TEMP READY stability time (Setting range10 to 9999 sec)
TEMP READY alarm of monitoring start time
(Setting range0 to 9999 sec)
Maximum temperature range of temperature range
monitoring function (Setting range10.0 to 45.0)
TEMP OUT HITMP(Alternately displayed)
