Chapter 5 Display and Setting of Various Functions
HRR Series 5.5 Advanced setting mode
5-31
State ⑥: Since the temperature range is again within the monitoring
range, "AL.14" will not be reported and "TEMP OUT" Output OFF continues.
State ⑦: AL.14 report since 45 sec has elapsed since the circulating fluid temperature deviated,
because it is outside the upper temperature monitoring range. TEMP OUT output ON.
State ⑧: The alarm is reset manually, the temperature monitoring upper and lower limit range is out,
so "AL.14", "AL.15" warning continue.
State ⑨: Since it is within the temperature monitoring upper limit range, "TEMP OUT" output OFF
State ⑩: Manual reset of alarm "AL.14", "AL.15" cancellation.

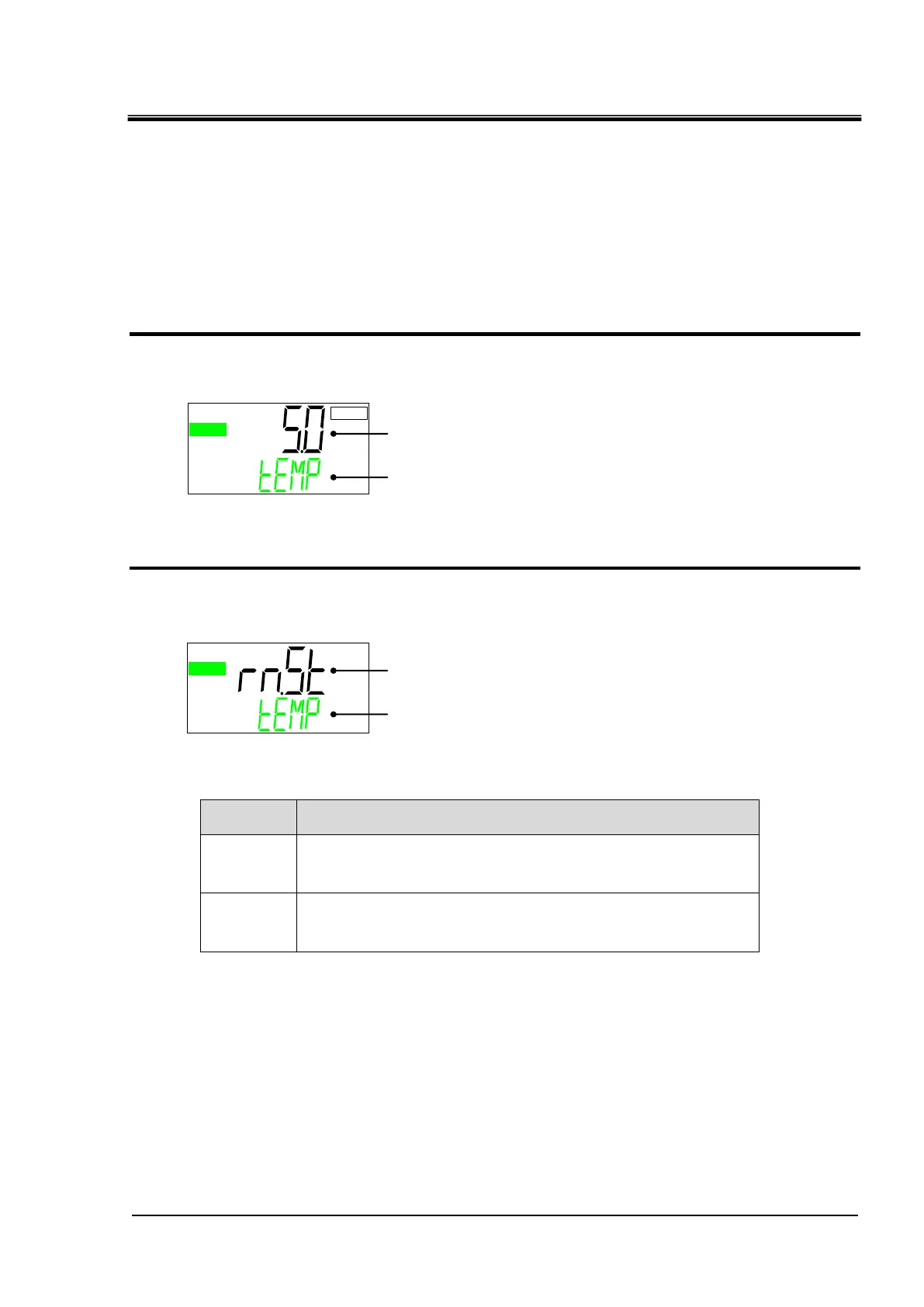

Low temperature limit of temperature range monitoring function
22. Press the [▼] key. Displays Low temperature limit of temperature range monitoring
function setting screen.
For the function, refer to P.5-28 [Temperature range monitoring function setting example].
Monitoring of temperature range monitoring function
23. Press the [▼] key. Displays monitoring of temperature range monitoring function
setting screen
Please select from the following items.
Set value
Contents
RNST
Monitoring during operation: The function is effective only
during operation.
PWON
Always Monitoring: The function is enabled even when
stopped (standby state).
For the function, refer to P.5-28 [Temperature range monitoring function
setting example].
RUN
℃
RUN
Monitoring of temperature range monitoring function
Low temperature limit of temperature range monitoring function
(Setting range：5.0 to 40.0℃)
TEMP ⇒ OUT ⇒ LOTMP(Alternately displayed)
TEMP ⇒ OUT ⇒ALARM(Alternately displayed)
