SMC Networks HRR012-A*-20 Series User Manual

HRX-OM-W002-A
Chapter 5 Display and Setting of Various Functions
5.5 Advanced setting mode HRR Series
5-36
Set value
Contents
Initial value
OFF
Alarm is not generated.
○
WRN
Operation of this product will continue when the
alarm occurs.
―
FLT
Operation of this product will stop when the
alarm occurs.
―
Output of NOT TEMP READY

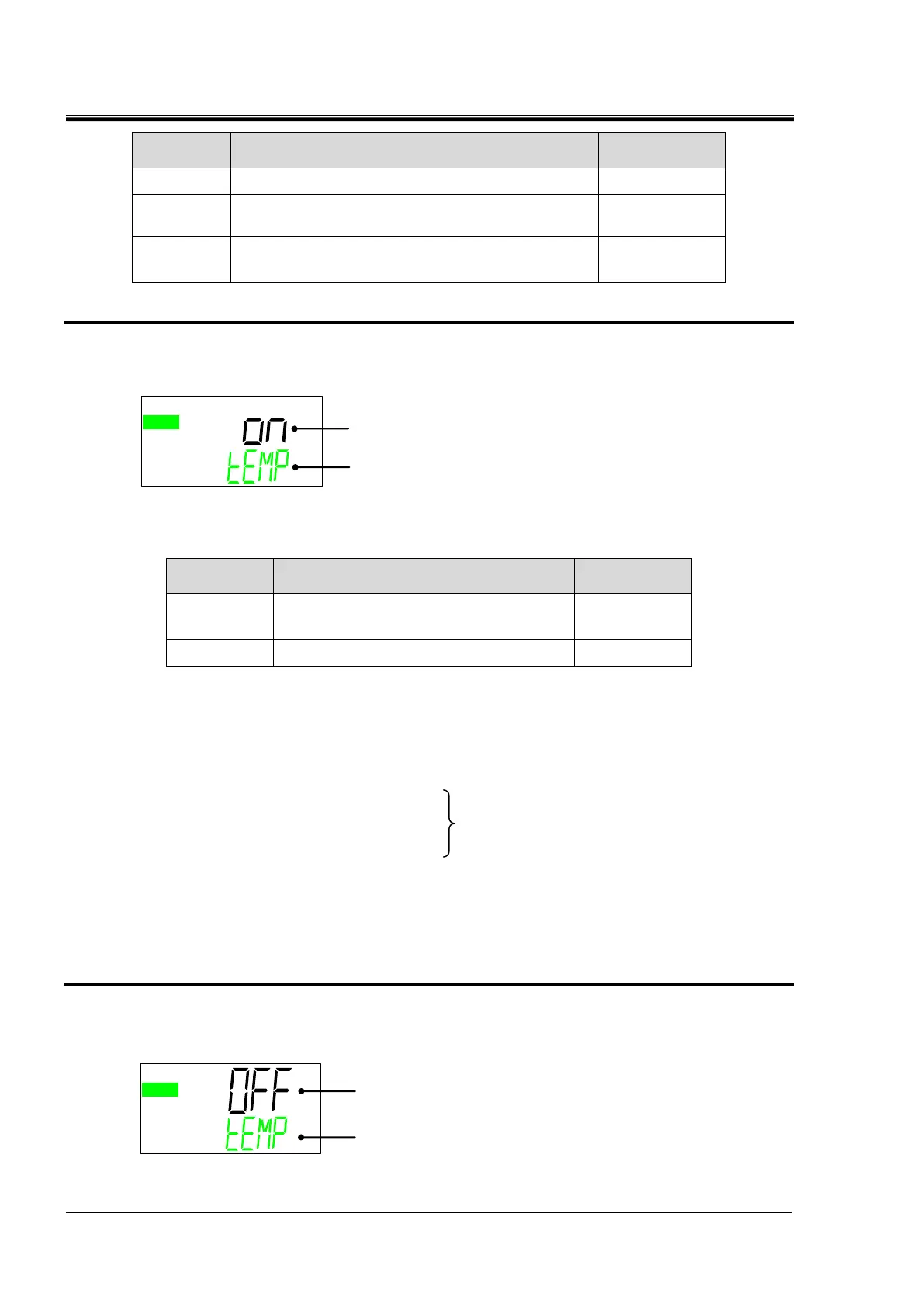

10. Press the [▼] key. Displays screen for setting the output of the NOT TEMP READY
signal.
The user can select whether thre is an output signal when alarm "AL13 NOT TEMP READY"
occurs.
Set value
Contents
Initial value
ON
Output signal to contact output or serial
communication.
○
OFF
No signal is output.
―
【Example】
If the user does not want to generate an alarm, but wants a signal for contact output or serial
communication when alarm "AL13: NOT TEMP READY" occurs, it can be set as follows.
・Chane NOT TEMP READY alarm：OFF
・Output of NOT TEMP READY signal：ON
Changing of circulating fluid temperature rise
11. Press the [▼] key. Displays screen for changing the chiller behaviour when the
circulating fluid temperature rise alarm occurs.
RUN
No alarm is generated,
but a signal is output.
RUN
Output of NOT TEMP READY signal
TEMP ⇒READY ⇒ OUTP(Alternately displayed)
TEMP ⇒OUTHI ⇒ ALARM(Alternately displayed)
Operation at occurrence of circulating fluid
temperature rise alarm
