SMC Networks HRR012-A*-20 Series User Manual

HRX-OM-W002-A
Chapter 5 Display and Setting of Various Functions
HRR Series 5.5 Advanced setting mode
5-37

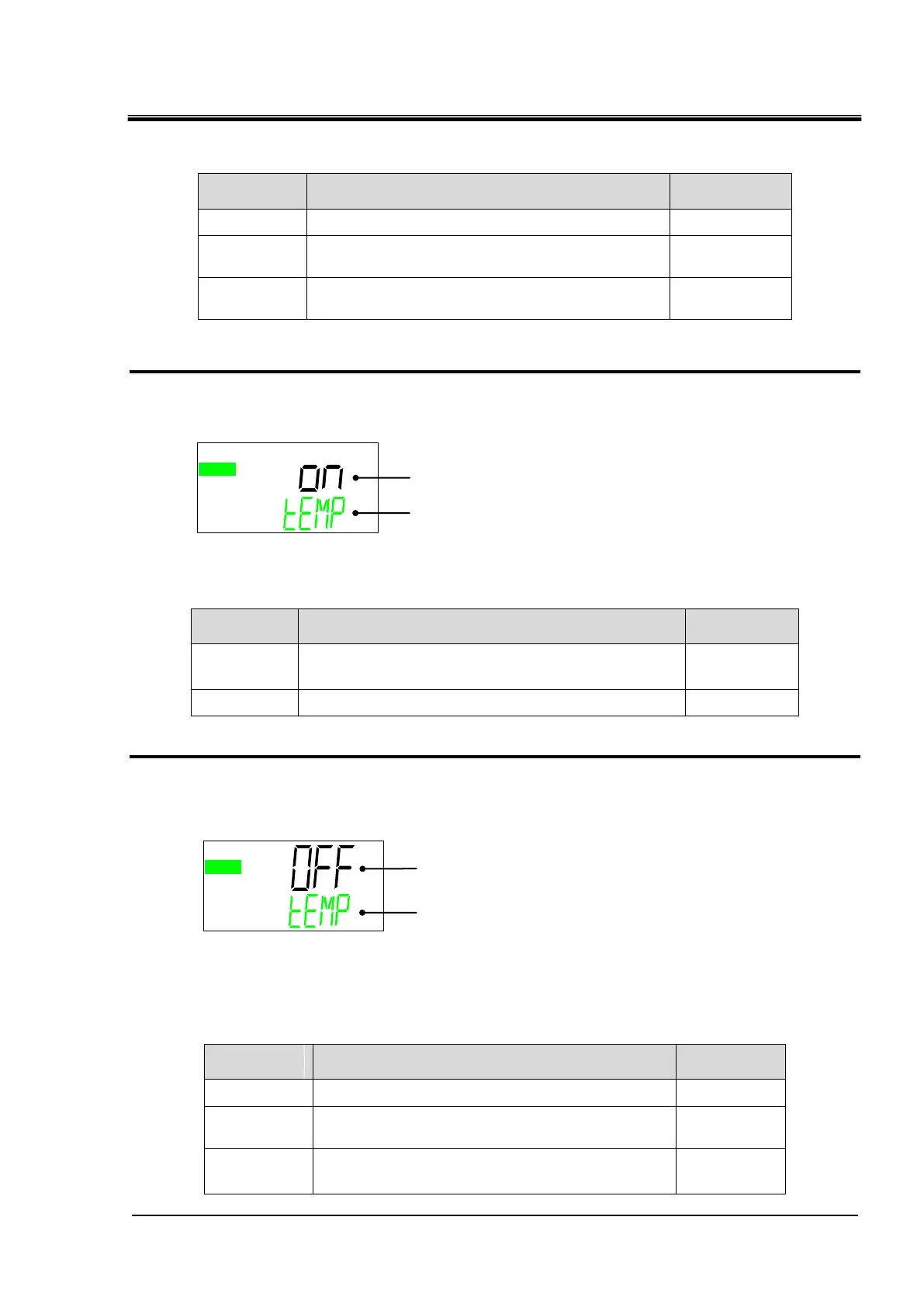

The user can decide the chiller behavior if alarm "AL14 circulating fluid temperature rise"
occurs.
Set value
Contents
Initial value
OFF
Alarm is not generated.
○
WRN
Operation of this product will continue when the
alarm occurs.
―
FLT
Operation of this product will stop when the
alarm occurs.
―
Output of circulating fluid temperature rise signal
12. Press the [▼] key. Displays screen for setting the output of circulating fluid temperature
rise signal.
The user can select whether there is an output signal when alarm "AL14 circulating fluid
temperature rise" occurs.
Set value
Contents
Initial value
ON
Output signal to contact output or serial
communication.
○
OFF
No signal is output.
―
Changing of circulating fluid temperature drop alarm behaviour
13. Press the [▼] key. Displays screen for changing the chiller behaviour when the
circulating fluid temperature drop alarm occurs.
The user can decide select the chiller behavior if alarm "AL15 circulating fluid temperature drop
" occurs.
Set value
Contents
Initial value
OFF
Alarm is not generated.
○
WRN
Operation of this product will continue when the
alarm occurs.
―
FLT
Operation of this product will stop when the
alarm occurs.
―
RUN
RUN
Output of circulating fluid temperature rise signal
TEMP ⇒OUTHI ⇒ OUTP(Alternately displayed)
TEMP ⇒OUTLO ⇒ ALARM(Alternately displayed)
Operation at occurrence of circulating fluid
temperature drop alarm
