SMC Networks HRSH Series User Manual

HRX-OM-Q026
Chapter 8 Documents
8.2 Dimensions HRSH Series
8-8
8.2.3 HRSH250/300-A-20-, HRSH250/300-A-40-

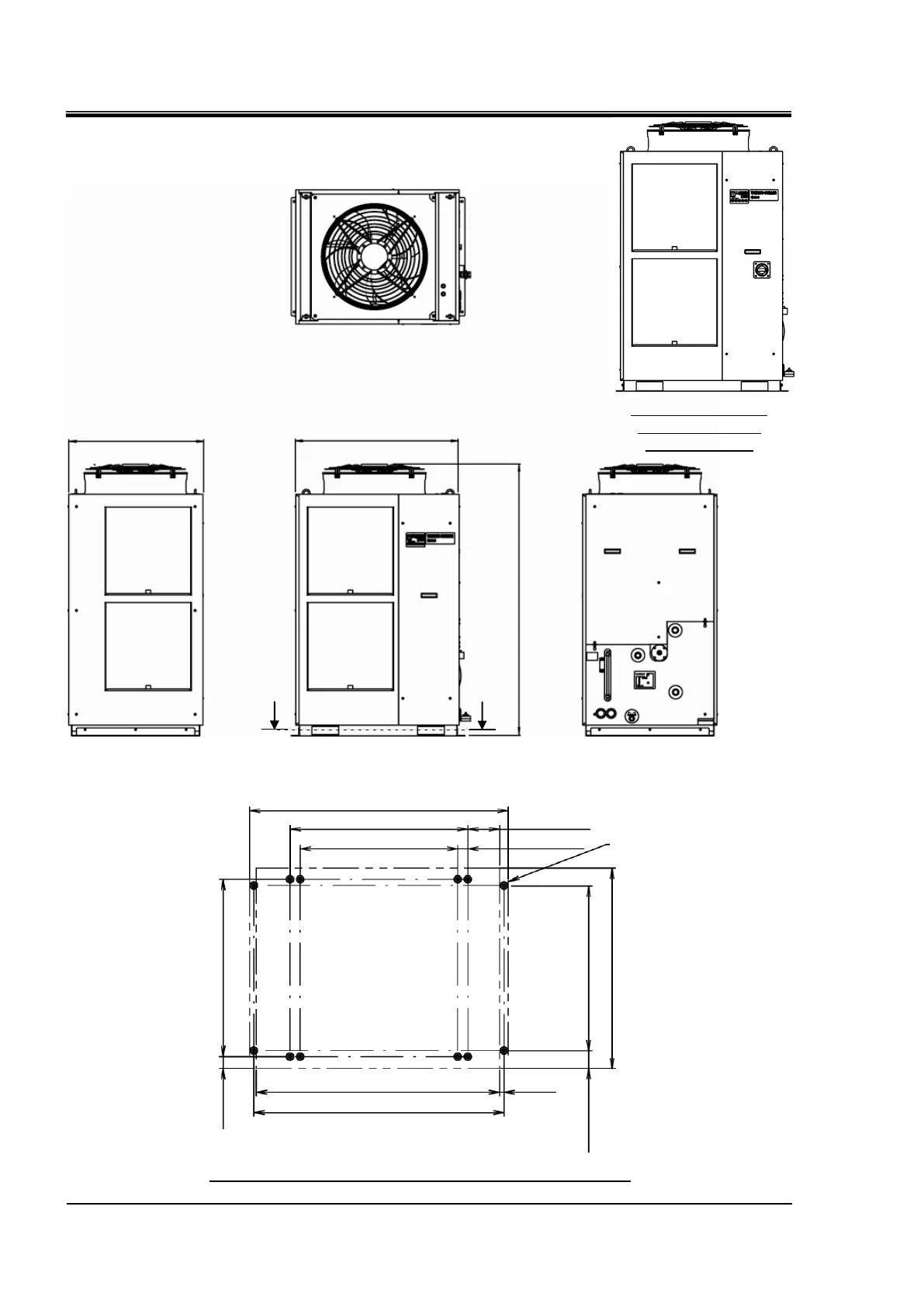

Fig. 8-3: Dimensions
850 mm (33.5 inch)
1035 mm (40.7 inch)
1720 mm (67.7 inch)
a
a
HRSH250-A-20-B1,
HRSH250-A-20-S
HRSH250-A-40
Dimensions for the positions of the anchor bolts (View a-a)
752 mm (29.6 inch)
50 mm (2 inch)
756 mm (29.8 inch)
670 mm (26.4 inch)
1100 mm (43.3 inch)
136 mm (5.4 inch)
43 mm (1.7 inch)
12x12mm(0.5in)
(850 mm) (33.5 inch)
700 mm (27.6 inch)
76 mm (3 inch)
(1035 mm) (40.7 inch)
1064 mm (41.9 inch)
19 mm
(0.7 inch)
12x ø12mm (0.5 inch)
