SMC Networks HRSH Series User Manual

HRX-OM-Q026
Chapter 3 Transport and Setting Up
HRSH Series 3.3 Installation
3-27
3.3.9 RS-232C communication wiring
Serial communication RS-232C, operation start/stop, setting and reading of
circulating fluid temperature, and reading of alarm condition can be
performed by remote control.
Refer to Operation Manual Communication Function for more details.
 Wiring of communication cable
Be sure to wire as shown in the figure below.

Configuration
One thermo-chiller for one master.

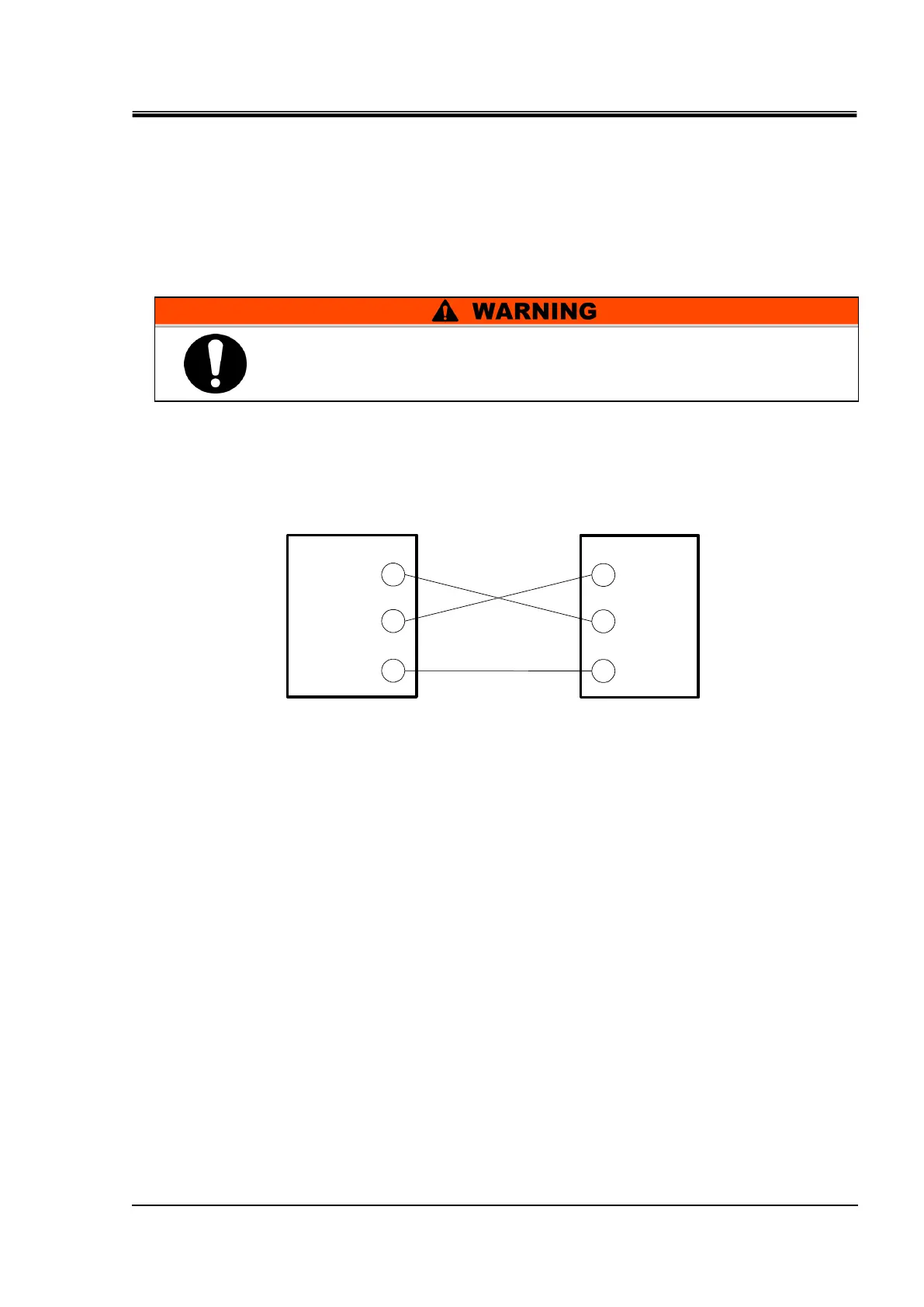

Fig. 3-15 Connection of RS-232C
2
3
5
RD
SD
SG
2
3
5
RD
SD
SG
Master This product
Be sure to turn OFF the breaker of the facility power supply (the
user's machine power supply) before wiring.
