SMC Networks HRSH Series User Manual

HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
HRSH Series 5.14 Pressure Unit Change
5-33

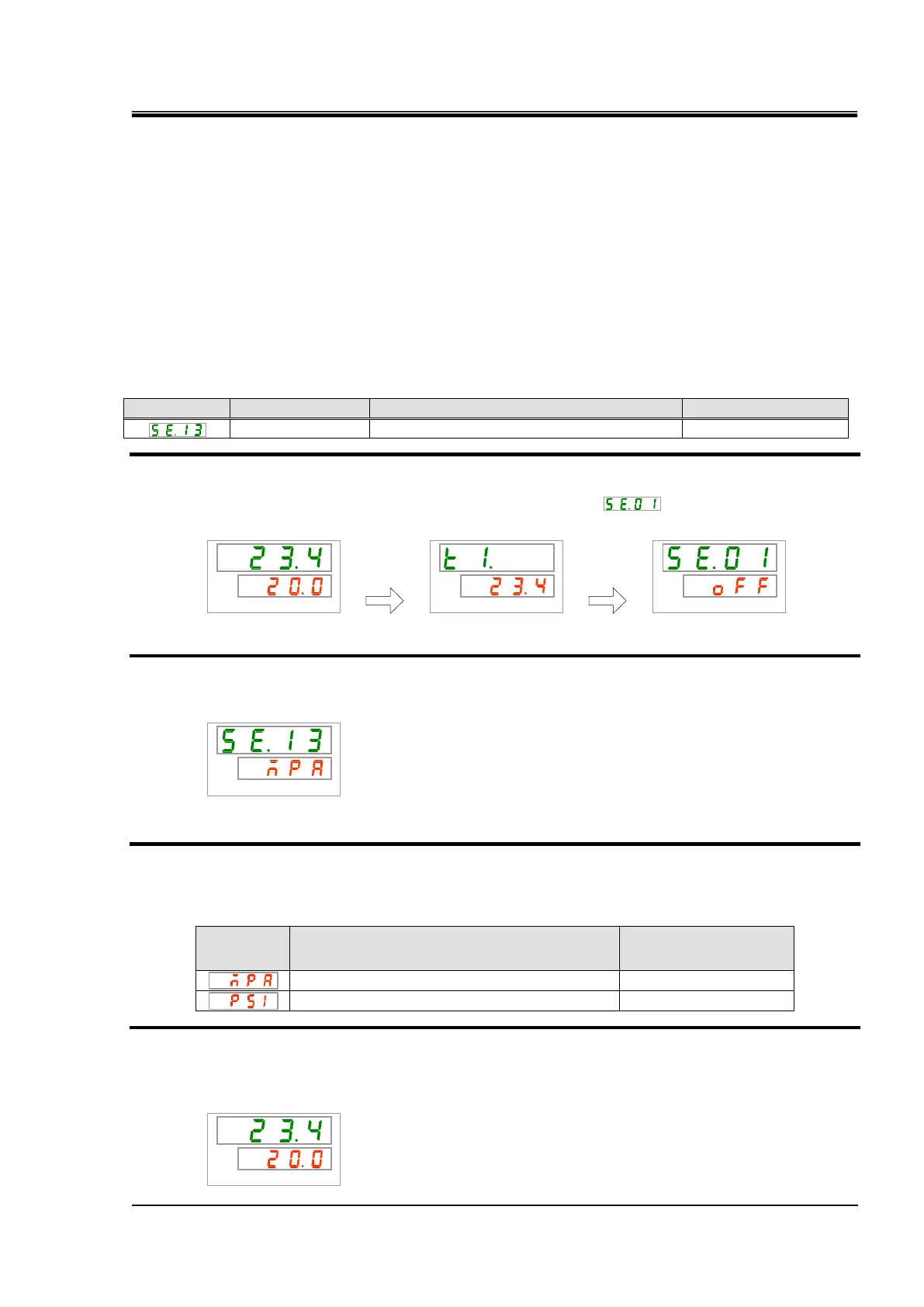

5.14 Pressure Unit Change
5.14.1 Pressure unit change
Pressure unit used for the thermo-chiller can be selected MPa or PSI. This
setting determines the pressure unit which is displayed/ output. The default
setting is MPa.
-This feature is not valid with Option W, the unit is fixed at MPa.
5.14.2 Setting/checking of pressure unit change
The table below shows the set item for the pressure unit change and the
default setting.
Table 5.14-1 Set item for pressure unit change
Display
Item
Contents
Default setting
Pressure unit
Sets pressure unit.
MPa
1. Press and hold the [MENU] key for approximately 2 seconds.
Repeat pressing the key until the key-lock setting screen [ ] appears on the digital
display.
Setting/Checking: Pressure unit
2. Press the [SEL] key 12 times.
Setting screen of temperature unit appears on the digital display.
3. Select a pressure unit with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.14-2 Setting for pressure unit
Set value
Explanation
Default
Sets the pressure unit to MPa.
✓
Sets the pressure unit to PSI.
4. Press the [MENU] key once.
Returns to the main display (which shows the circulating fluid temperature).
PV
SV
PV
SV
PV
SV
PV
SV
PV
SV
Press and
hold [MENU]
key.
Press and
hold [MENU]
key.
