Chapter 3 Transport and Setting Up
3.3 Installation HRSH Series
3-24
 Setting items

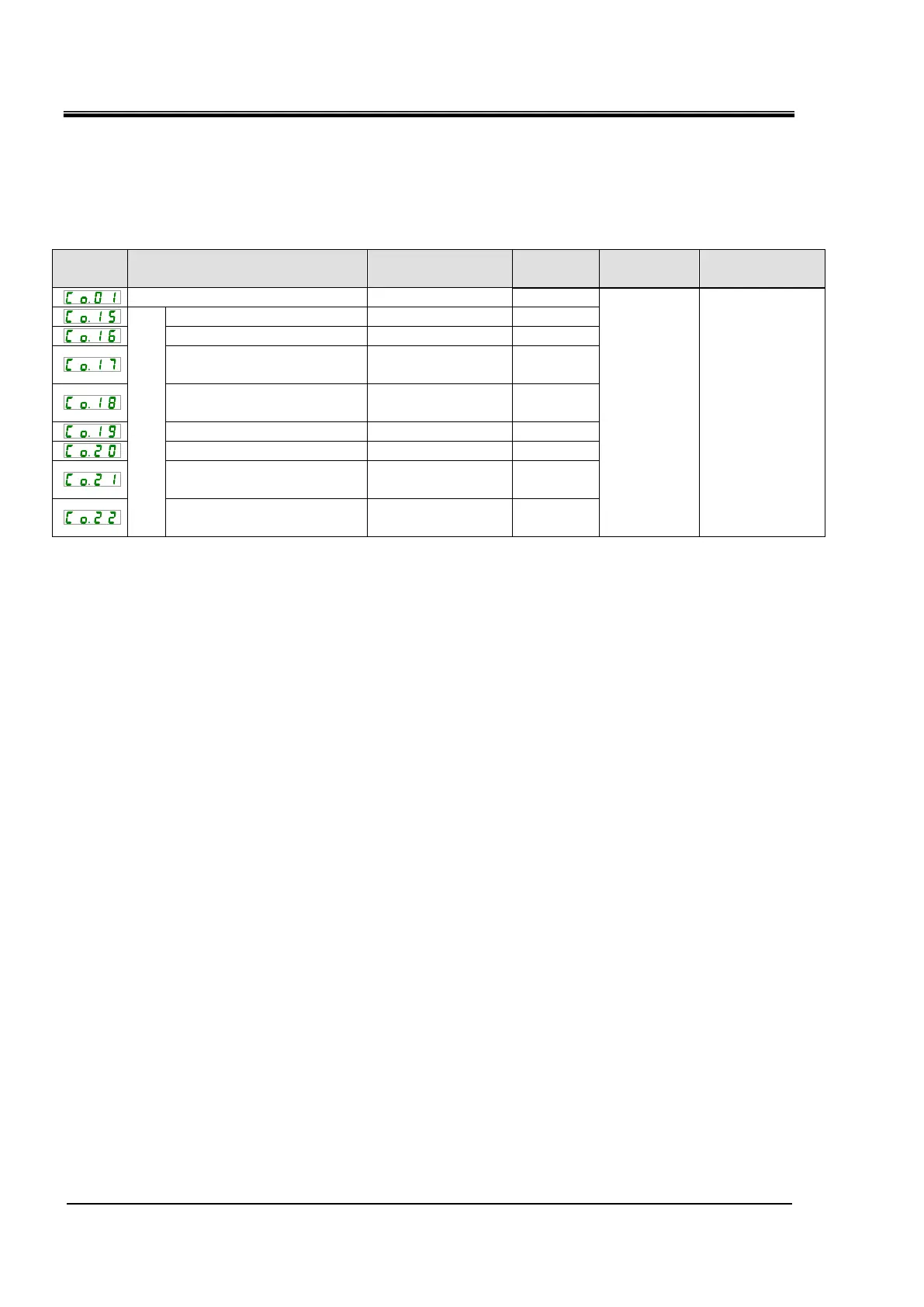

Table 3-10 shows the setting items of the external switch. For details, refer
to “5.22 Communication Function”.
Table 3-10 Setting list of the external switch
Display
Item
Initial value
(Default setting)
Example
*
Reference
page
Category
Communication mode
LOC
LOC
5.22
Communication
setting menu
Contact input/output
communication
Contact input signal 1
RUN
SW_A
Contact input signal 1 type
ALT
ALT
Contact input signal 1 delay
time (time delay) for reading
0
0
Contact input signal 1 OFF
detection timer
0
2
Contact input signal 2
OFF
OFF
Contact input signal 2 type
ALT
-
Contact input signal 2 delay
timer (time delay) for reading
0
-
Contact input signal 2 OFF
detection timer
0
-
* Example: Connect N.O. type flow switch to contact input signal 1 in local mode.
