Chapter 5 Display and Setting of Various Functions
5.2 Function HRSH Series
5-4
5.2.2 List of parameters

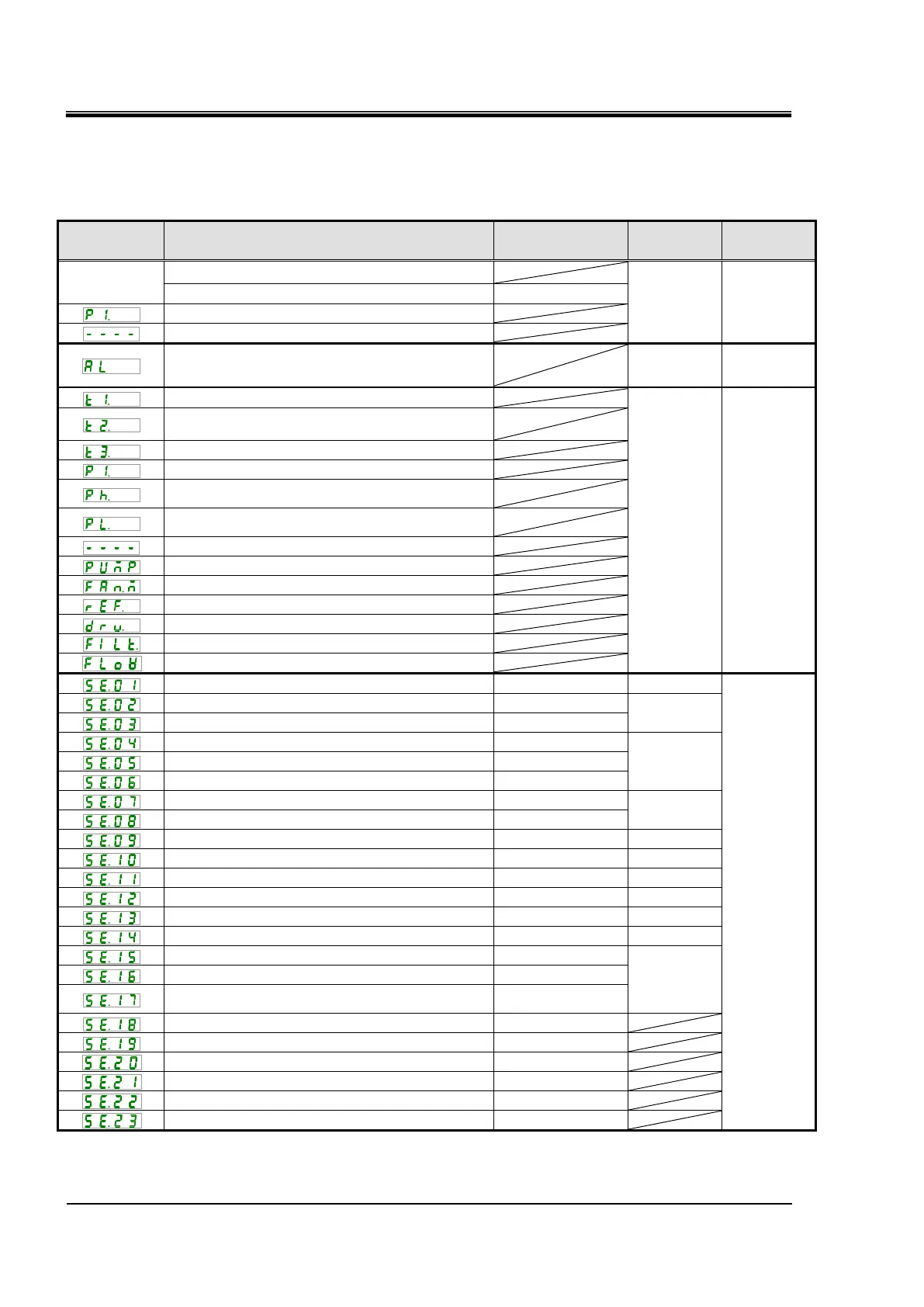

“Table 5.2-1 List of parameters (1/3)” to “Table 5.2-3 List of parameters
(3/3)” show the parameters of the thermo-chiller.
Table 5.2-1 List of parameters (1/3)
Display
Content
Default*
1
Reference
page
Category
Temperature
Circulating fluid temperature (TEMP PV)
5.3
Main
display
Circulating fluid set temperature (TEMP SV)
20
o
C (68
o
F)
Circulating fluid discharge pressure
Unused
Alarm No.
5.4
Alarm
display
menu
Circulating fluid discharge temperature
5.5
Check
monitor
menu
Circulating fluid return port temperature
Compressor inlet temperature
Circulating fluid discharge pressure
Refrigerant circuit pressure on the high pressure
side
Refrigerant circuit pressure on the low pressure
side
Unused
Accumulated operating time of the pump
Accumulated operating time of the fan
Accumulated operating time of the compressor
Accumulated operating time of the thermo-chiller
Accumulated operating time of the dust-proof filter
Circulating fluid flow rate
Key-lock
OFF
5.6
Setting
menu
Run timer
0.0H
5.7
Stop timer
0.0H
READY mode
OFF
5.8
READY band width
---- (0
o
C (0
o
F)
*2
READY time
---- (10)
*2
Offset mode
OFF
5.9
Offset temperature
---- (0
o
C (0
o
F)
*3
Operation restoration after power failure
OFF
5.10
Anti-freezing function
OFF
5.11
Key click sound setting
ON
5.12
Temperature unit
C
5.13
Pressure unit
MPa
5.14
Data reset
NO
5.15
Accumulated operating time reset of the pump
NO
5.16
Accumulated operating time reset of the fan
NO
Accumulated operating time reset of the
compressor
NO
Unused
----
Unused
----
Unused
----
Unused
----
Unused
----
Unused
----
*1: Initial values are shown in Fahrenheit (□□ oF) when the temperature unit is set to F for SE12.
*2: Default when SE04 is set ON.
*3: Default when SE07 is set to MD1, 2 or 3.
