Chapter 5 Display and Setting of Various Functions
HRSH Series 5.2 Function
5-5

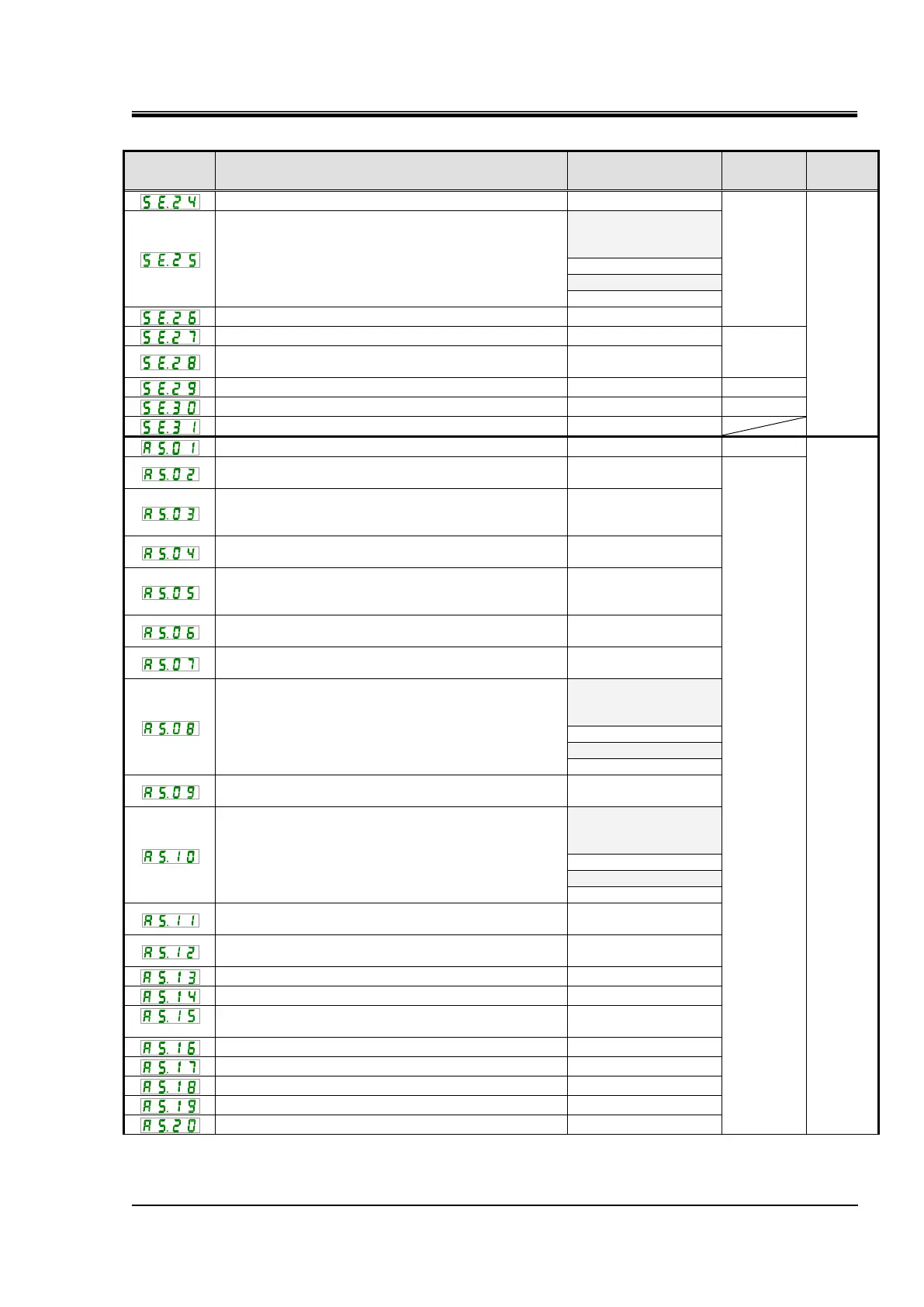

Table 5.2-2 List of parameters (2/3)
Display
Content
Default
*4
Reference
page
Category
Pump operation mode setting
PRS
5.17
Setting
menu
Circulating fluid discharge pressure setting
HRSH100/150/200-A
HRSH150/200-W
HRSH250-W
0.45MPa (65PSI) (----)
*5
HRSH250/300-A
0.50MPa (72PSI) (----)
*5
Pump operation frequency setting
---- (30)
*5
Warming up function
OFF
5.18
Set temperature for warming up
----
20.0
o
C (68.0 ﾟ F)
*6
Anti-snow coverage
OFF
5.19
Dust-proof filter accumulated time reset
NO
5.16
Unused
----
Alarm buzzer
ON
5.20
Alarm
setting
menu
Operation setting when "Low level in tank" is
generated
A.STP
5.21
Operation setting when "Detection temp. for the
circulating fluid discharge temp. rise" alarm is
generated
A.RUN
Threshold temperature setting for "Detection temp. for
the circulating fluid discharge temp. rise" alarm
40.0
o
C (104.0 ﾟ F)
(----)
*7
Operation setting when "Detection temp. for the
circulating fluid discharge temp. drop" alarm is
generated
A.RUN
Threshold temperature setting for "Detection temp. for
the circulating fluid discharge temp. drop" alarm
1.0
o
C (33.8 ﾟ F)
(----)
*7
Operation setting when "Circulating fluid discharge
pressure rise" alarm is generated
A.STP
Threshold pressure setting for "Circulating fluid
discharge pressure rise" alarm
HRSH100/150/200-A
HRSH150/200-W
HRSH250-W
0.70MPa (102PSI) (----)
*7
HRSH250/300-A
1.00MPa (145PSI) (----)
*7
Operation setting when "Circulating fluid discharge
pressure decrease" alarm is generated
A.STP
Threshold pressure setting for "Circulating fluid
discharge pressure decrease" alarm
HRSH100/150/200-A
HRSH150/200-W
HRSH250-W
0.03MPa (7PSI) (----)
*7
HRSH250/300-A
0.05MPa (4PSI) (----)
*7
Operation setting when "Communication error" alarm
is generated
OFF
Threshold monitoring time setting for "Communication
error"
---- (30)
*7
Setting function for “Contact input signal 1” detection
A.STP
Setting function for “Contact input signal 2" detection
A.STP
Operation setting when "DC line fuse cut" alarm is
generated
A.STP
Unused
----
Unused
----
Unused
----
Unused
----
Unused
----
*4: Values are shown in
o
F when the unit is set to F for SE12, and in PSI when the unit is set to PSI for SE13.
*5: Default values when FREQ is set for SE24.
*6: Default value when SE27 is ON. *7: For more details of the default settings, refer to “5.21 Alarm Customizing Function”.
