HRX-OM-Q026
Chapter 3 Transport and Setting Up
HRSH Series 3.5 Circulating Fluid Supply
3-33
3.5.2 Fluid supply without using the automatic water fill function
To supply the circulating fluid without using automatic water fill function,
remove the upper panel on the right side, and supply the fluid to the water fill
port on top of the tank.
1. Remove the screws to remove the upper panel on the right side.

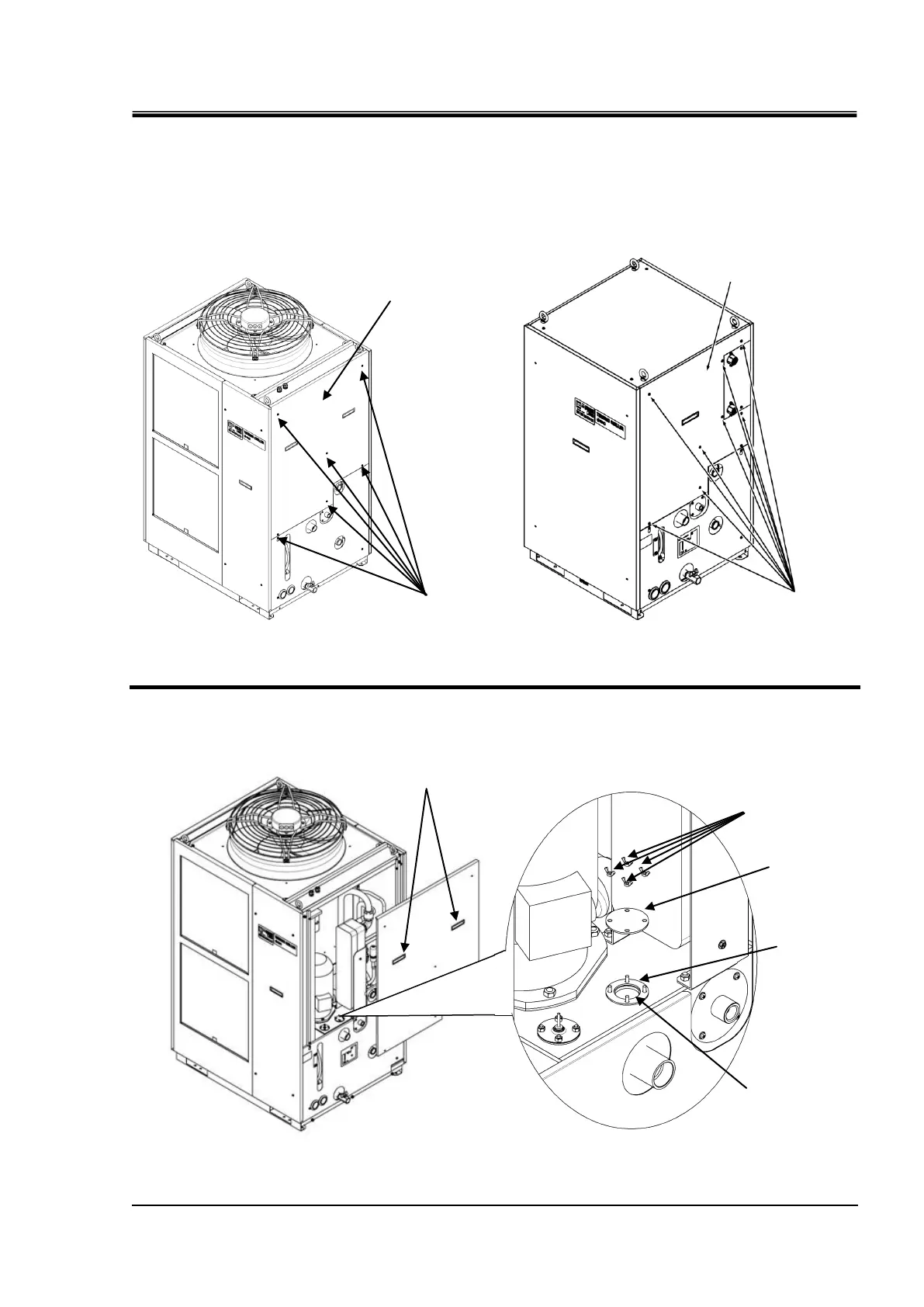

Fig. 3-21 Removal of the right side panel
2. Hold the handles and lift the upper right side panel, and remove it.
Remove the wing nuts (4 portions) on top of the tank and remove the lid also.
Fig. 3-22 Removal of the right side panel and the lid of the water fill port
Note: Pay attention not to lose
the wing nuts.
To Next Page
