SMC Networks HRSH Series User Manual

HRX-OM-Q026
Chapter 3 Transport and Setting Up
HRSH Series 3.3 Installation
3-21
2. Connect the signal cable and switch to the terminal as shown below. (This wiring is an
example. Refer to Operation Manual Communication Function for more details.)

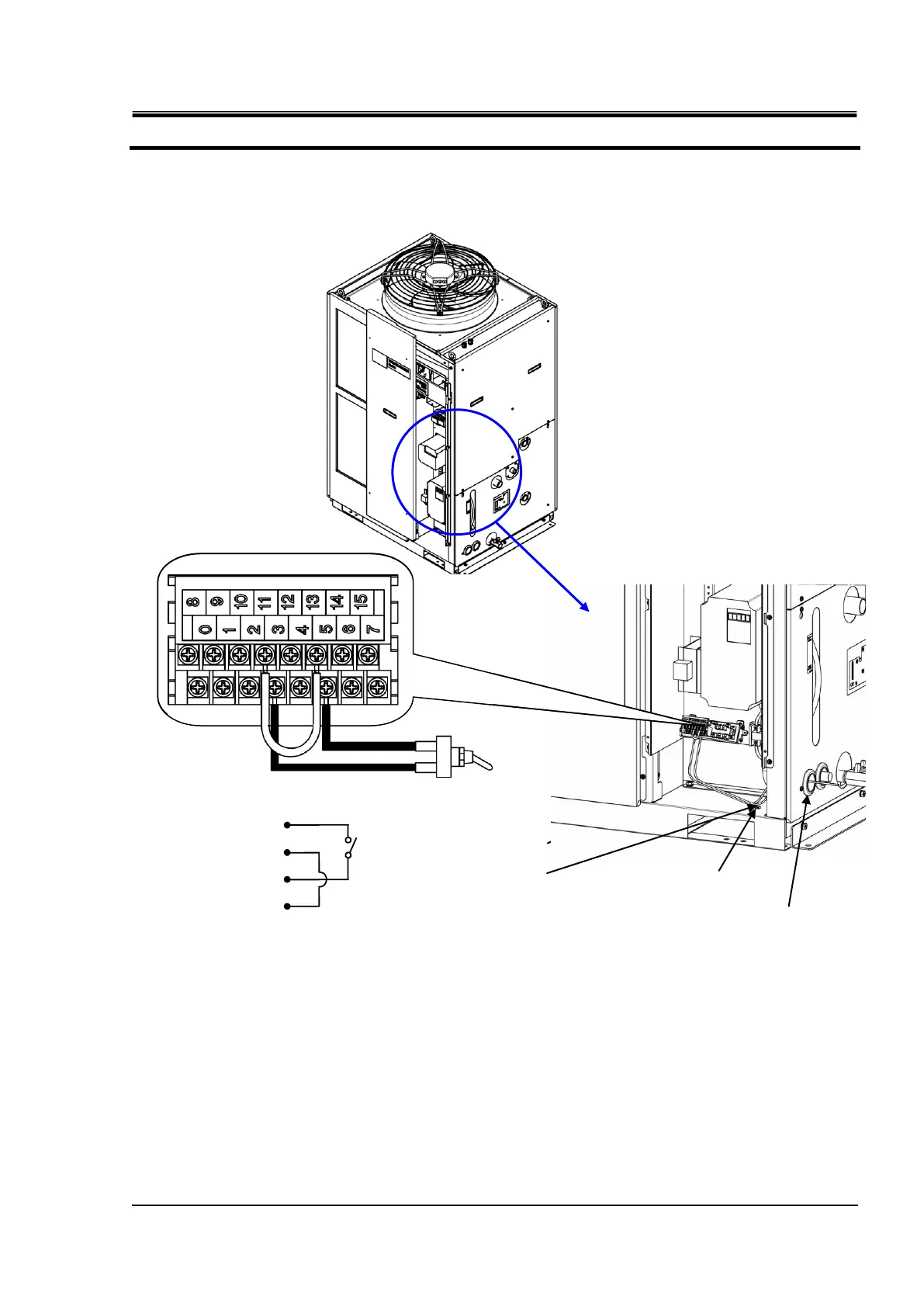

Fig. 3-11 Wiring of run/stop signal input and remote signal input (Example)
Inlet of the signal
cable
Note: Prepare a cable tie.
Fasten the signal cable to the
mount on the base with the
cable tie.
Terminal No. 5
Terminal No.13
T
e
inal No. 3
Terminal No.11
Switch
Mount for cable tie
Terminal No. 3
