Chapter 5 Display and Setting of Various Functions
5.21 Alarm Customizing Function HRSH Series
5-58
Setting/Checking: Operation setting when "Circulating fluid discharge pressure rise" alarm is generated
12. Press the [SEL] key once.

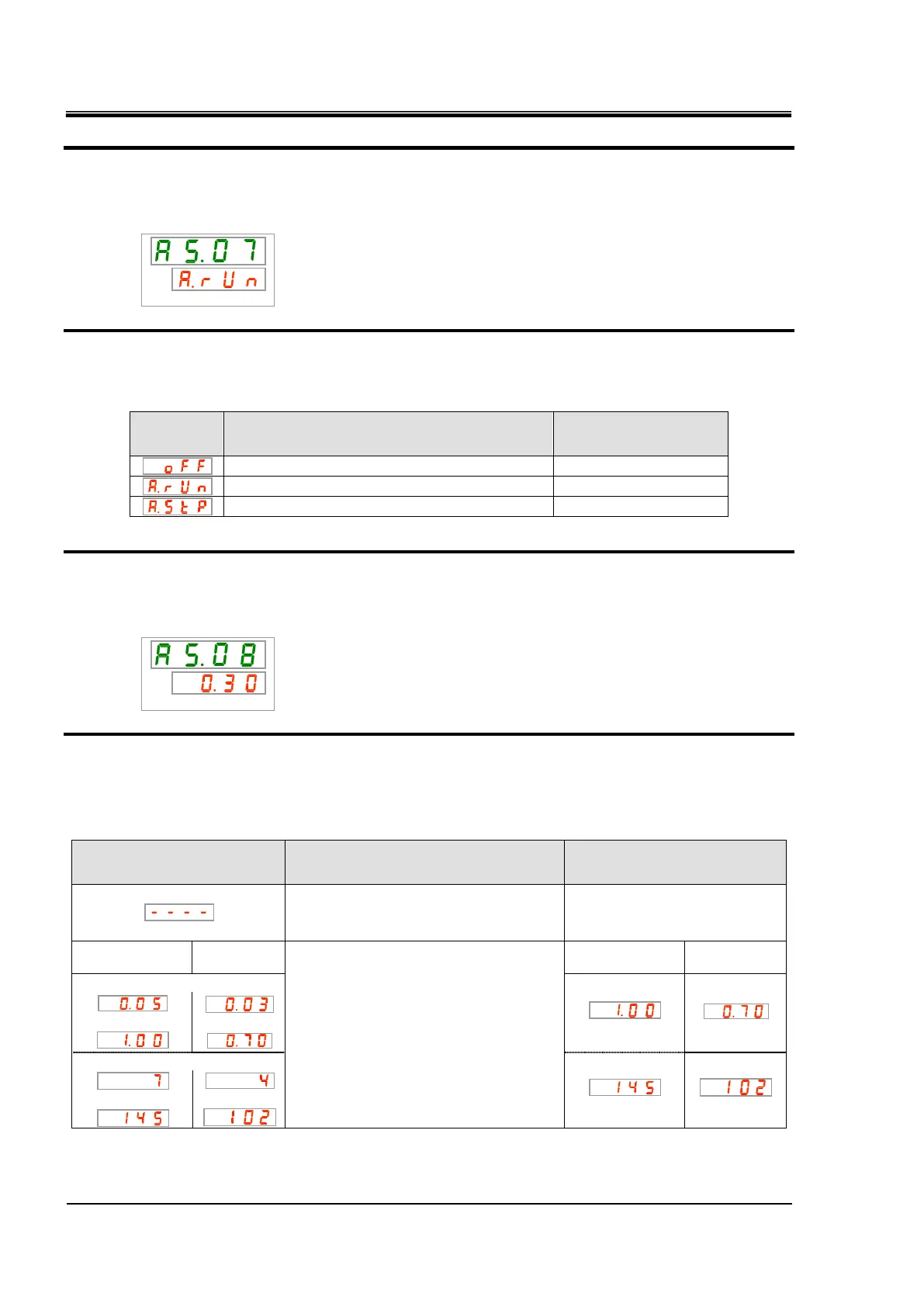

Operation setting screen when "Circulating fluid discharge pressure rise" alarm is generated
appears on the digital display.
13. Set the product operation when "Circulating fluid discharge pressure rise" alarm is
generated with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.21-13 Operation setting when “Circulating fluid discharge pressure rise” alarm is generated
Set value
Explanation
Default
This alarm is not detected.
Operation continues when this alarm is generated.
Operation stops when this alarm is generated.
✓
Setting/Checking: Threshold pressure setting for "Circulating fluid discharge pressure rise" alarm
14. Press the [SEL] key once.
Threshold detecting pressure setting screen for "Circulating fluid discharge pressure rise" alarm
generation appears on the digital display.
15. Set the threshold detection pressure for "Circulating fluid discharge pressure rise"
alarm generation with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.21-14 Threshold detecting pressure setting for "Circulating fluid discharge pressure rise" alarm
Set value
Explanation
Default
Setting/checking of the alarm is impossible
when the "Circulating fluid discharge
pressure rise" alarm is set OFF.
HRSH250/300-A
Series*
Other
models
Sets threshold detection pressure
for ”Circulating fluid discharge pressure
rise” alarm generation.
Pressure setting unit for MPa: 0.01 MPa
Pressure setting unit for PSI: 1 PSI
HRSH250/300-A
Series
Other
models
MPa
to
to
PSI
to
to
When SE.19 is set to "dI.2", the maximum value becomes 0.7 MPa (102 PSI).
PV
SV
PV
SV
