SMC Networks HRSH150-A*-40 Series User Manual

HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
HRSH Series 5.21 Alarm Customizing Function
5-59

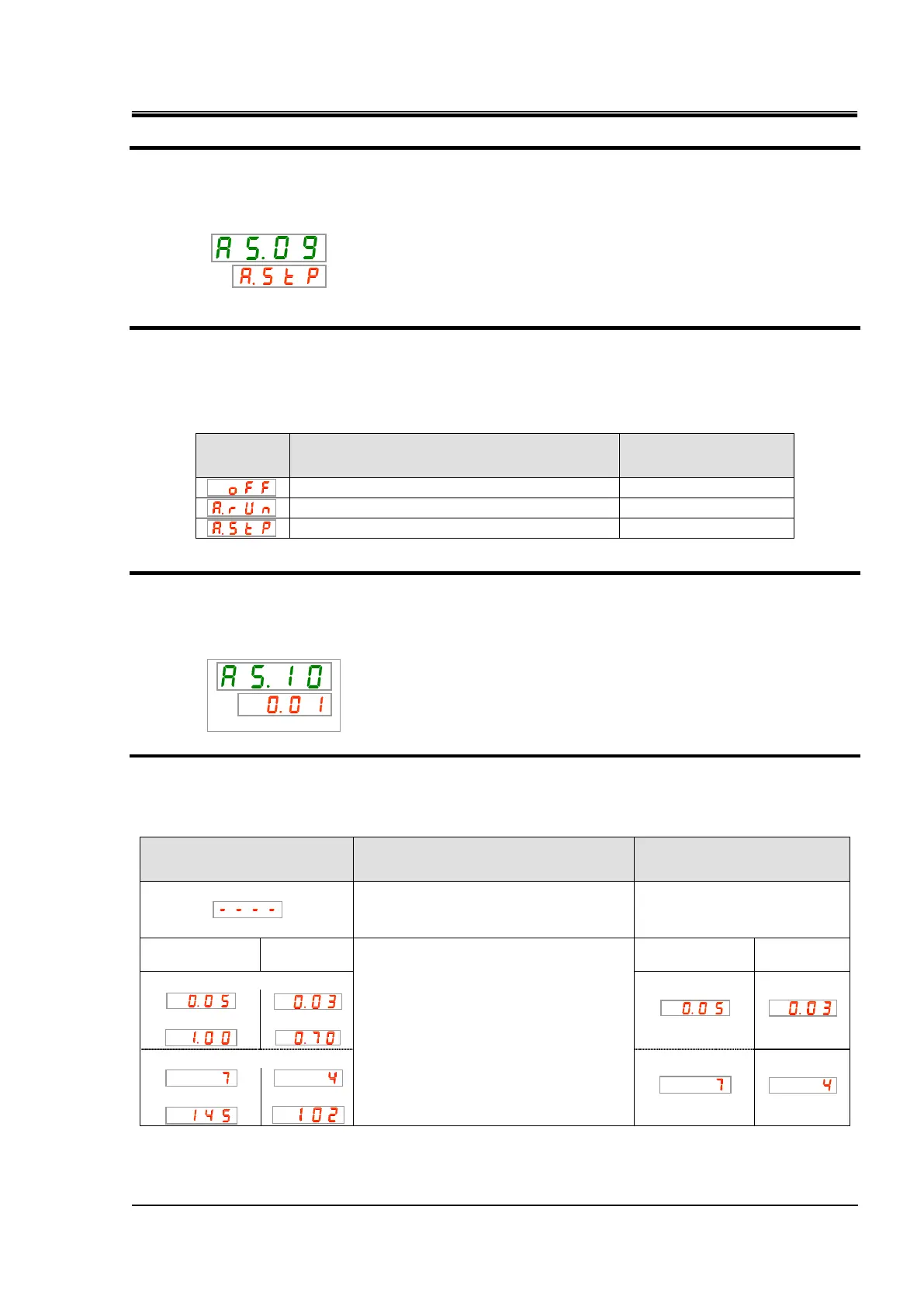

Setting/Checking: Operation setting when "Circulating fluid discharge pressure drop" alarm is generated
16. Press the [SEL] key once.
Operation setting screen when "Circulating fluid discharge pressure drop" alarm is generated
appears on the digital display.
17. Set the product operation when "Circulating fluid discharge pressure drop" alarm is
generated with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.21-15 Operation setting when "Circulating fluid discharge pressure drop" alarm is generated
Set value
Explanation
Default
This alarm is not detected.
Operation continues when this alarm is generated.
Operation stops when this alarm is generated.
✓
Setting/Checking: Threshold pressure setting for "Circulating fluid discharge pressure drop" alarm
18. Press the [SEL] key once.
Threshold detecting pressure setting screen for "Circulating fluid discharge pressure drop"
alarm generation appears on the digital display.
19. Set the threshold detection pressure for "Circulating fluid discharge pressure drop"
alarm generation with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.21-16 Threshold detecting pressure setting for "Circulating fluid discharge pressure drop" alarm generation
Set value
Explanation
Default
Setting/checking of the alarm is
impossible when the "Circulating fluid
discharge pressure drop" alarm is set OFF.
HRSH250/300-A
Series*
Other
models
Sets threshold detection pressure for
"Circulating fluid discharge pressure drop"
alarm generation.
Pressure unit for MPa: 0.01 MPa
Pressure unit for PSI: 1 PSI
HRSH250/300-A
Series
Other
models
MPa
to
to
PSI
to
to
* When SE.19 is set to "dI.2", maximum value becomes 0.7 MPa (102 PSI).
PV
SV
PV
SV
