Chapter 3 Transporting and Installation
HRZ Series 3.3 Procedure for Installation
3-9
3-9
 Selection of the breaker for the customer’s equipment (primary side)
This product is equipped with the breaker which has different
operating characteristics depending on each model. For the
customer’s equipment (primary side), use the breaker whose
operating time is equal to or longer than the breaker of this product. If
the breaker with shorter operating time is connected, the customer’s
equipment could be cut off du eto the inrush current of the motor of
this product.

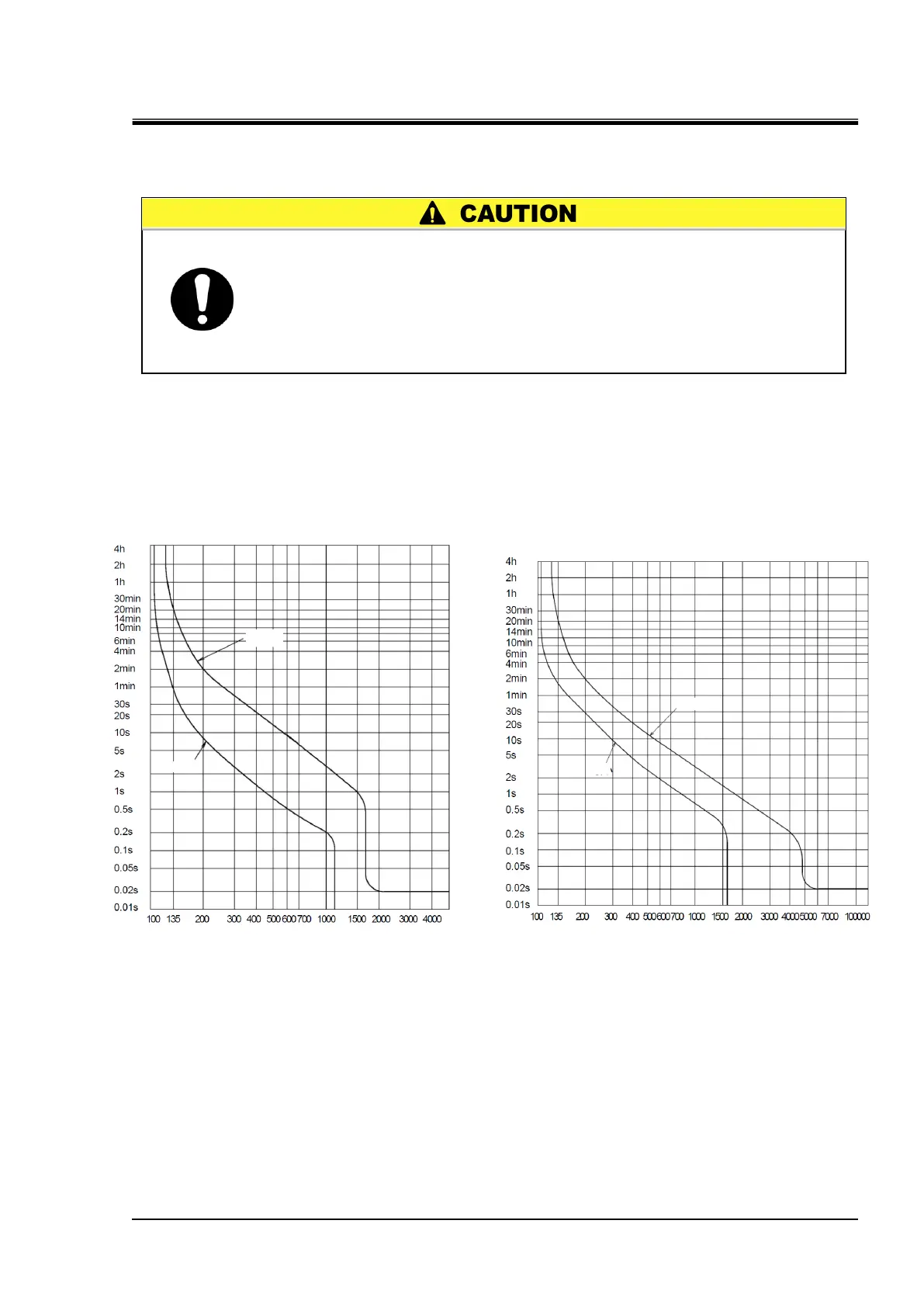

Current (% to the capacity of the main breaker of this product)
Figure 3-6 Breaker operating characteristics curve
HRZ010-WS-F HRZ010-W1S-F HRZ010-W2S-F
HRZ002-WS-F HRZ002-W1S-F HRZ002-W2S-F
HRZ004-WS-F HRZ004-W1S-F HRZ004-W2S-F
HRZ008-WS-F HRZ008-W1S-F HRZ008-W2S-F
HRZ010-WS-F
HRZ010-W1S-F
HRZ010-W2S-F
HRZ010-WS-F
HRZ010-W1S-F
HRZ010-W2S-F
HRZ010-WS-F
HRZ010-W1S-F
HRZ010-W2S-F
Operating time
MAX
MIN
Operating time
MAX
MIN
