IMU User Guide revision 3.1 SMC Ship Motion Control www.shipmotion.eu

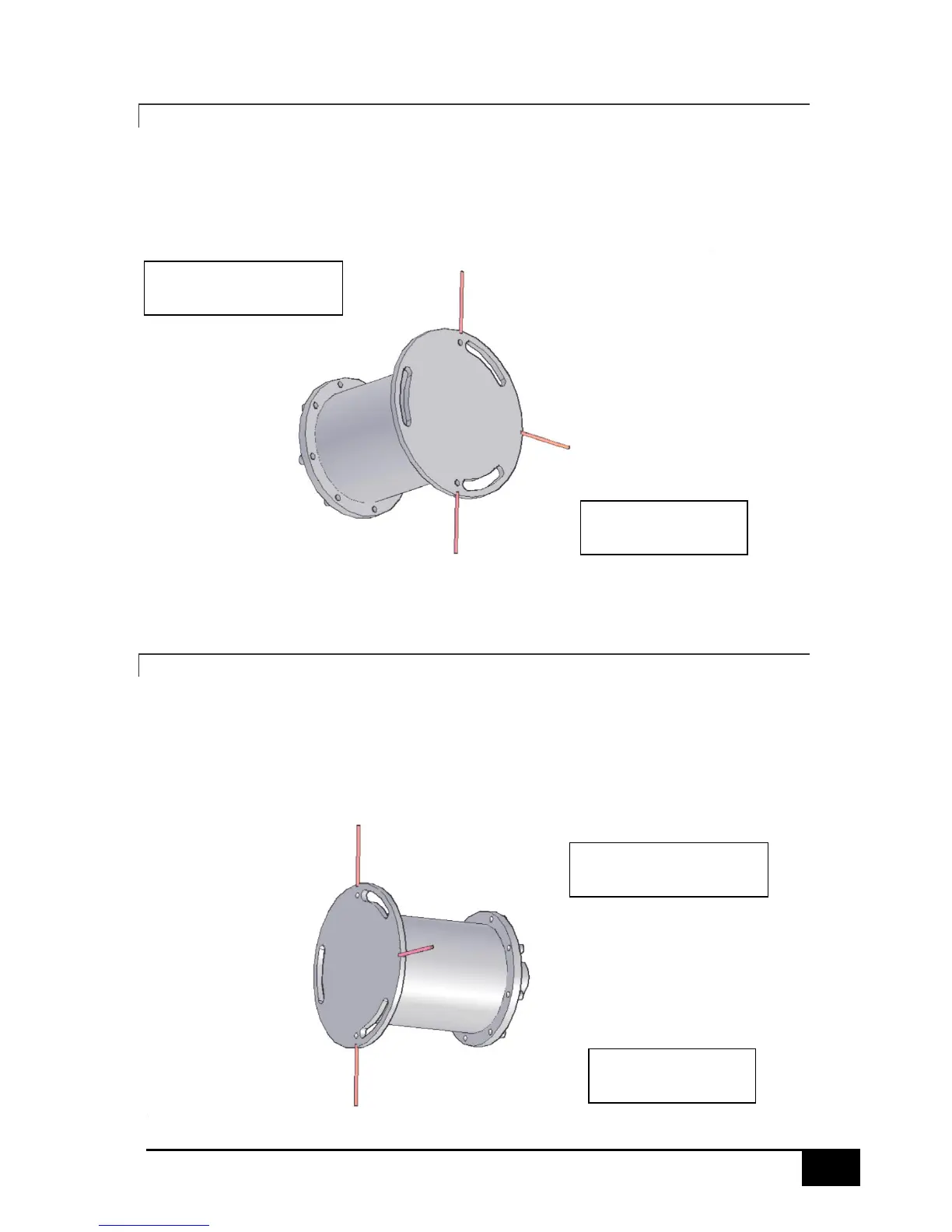

3.5.2 Top of the motion sensor pointing to the starboard
When the Motion sensor top, where the connector is located, is pointing to the Starboard of the
vessel the single notch must be pointing horizontally to the Stern.
In the SMC IMU Configuration Software IMU top to the Starboard must be selected.
3.5.3 TOP OF THE MOTION SENSOR POINTING AT THE STERN
When the Motion sensor top, where the connector is located, is pointing to the Stern of the vessel
the single notch must be pointing horizontally to Port.
In the SMC IMU Configuration Software IMU top to the Stern must be selected.
Motion Sensor Connector
Pointing to Starboard
Single Notch Pointing
to the Stern
Motion Sensor Connector
Pointing to the Stern
Single Notch Pointing
to Port
