3.5.4 TOP OF THE MOTION SENSOR POINTING TO THE PORT
When the Motion sensor top, where the connector is located, is pointing to the Port of the vessel the
single notch must be pointing horizontally to the Bow.
In the SMC IMU Configuration Software IMU top to the Port must be selected.

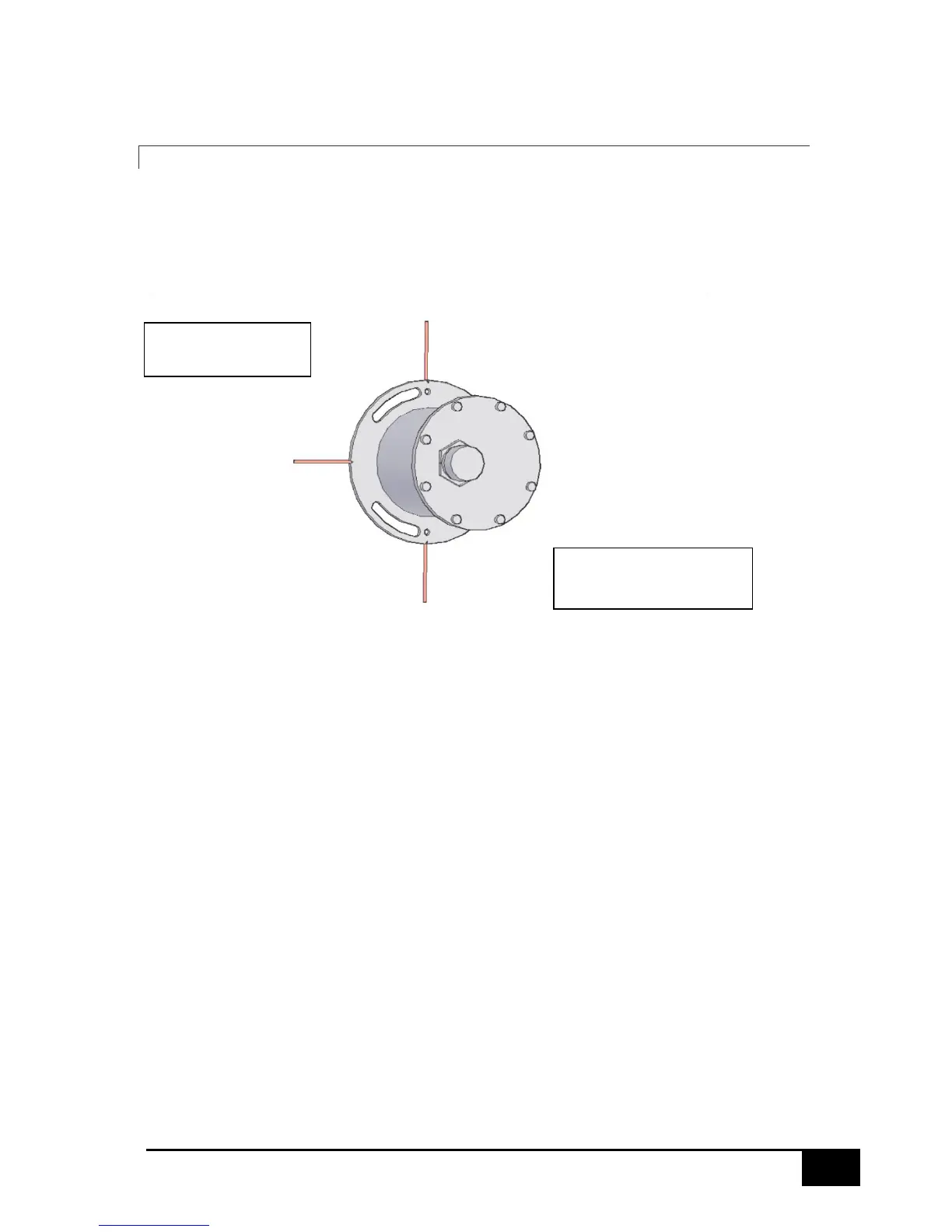

Single Notch Pointing
to the Bow
Motion Sensor Connector
Pointing to Port
