(1) Select input Step No.1. (Turn IN0 ON.)
↓
(2) Turn the DRIVE input ON.
↓
The Motor starts to move to the position set in Step No.1.
↓
(3)Step No.1 output is turned ON.
(OUT0 output is turned ON)
↓
(4)INP output is turned OFF.
↓
(5)BUSY output is turned ON.
↓
(6)Turn the DRIVE input OFF.
↓
(7)INP output is turned ON.
↓
(8)BUSY output is turned OFF.
↓
The move to the position set in Step Data No.1 is
completed.
↓
(9)Select input Step No.2. (Turn the IN0 input OFF, and the
IN1 input ON.)
↓
(10)Turn the "DRIVE" input ON.
↓
Start moving to a point at 100mm on Axis 1 and 50mm on
Axis 2.
↓
(11)Step No.2 output is turned ON.
(OUT1 output is turned ON)
↓
(12) INP output is turned OFF.
↓
(13) BUSY output is turned ON.
↓
(14) DRIVE input is turned OFF.
↓
(15) INP output is turned ON.
↓
(16) BUSY output is turned OFF.
↓
Move to a point at 100mm on Axis 1 and 50mm on Axis 2.

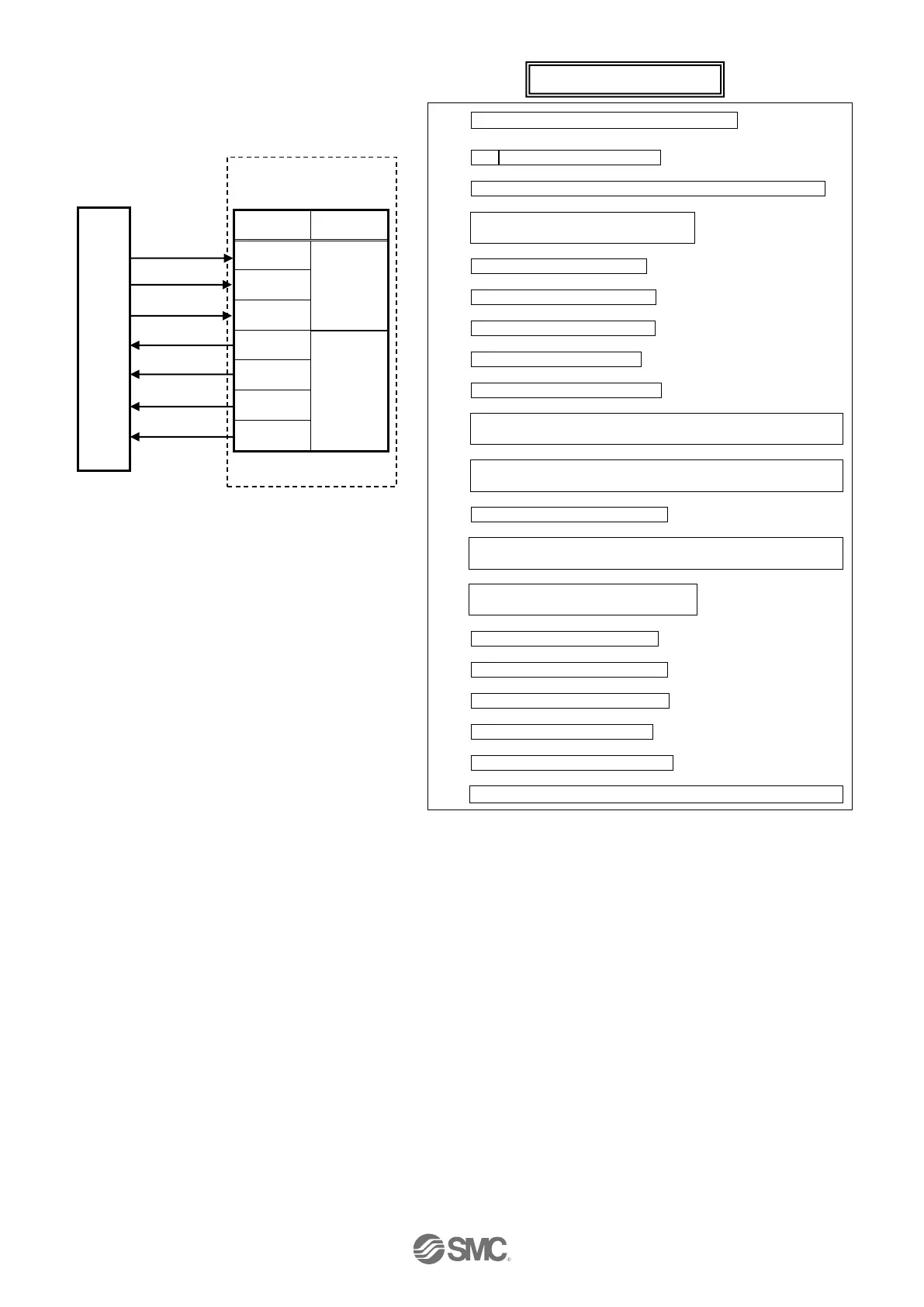

Flow chart (Reference)
Parallel I/O signals
PLC
(2)(6)(10)(14)
⑭
(15), (12), (7), (4)
(16), (13), (8), (5)
(11)
(3)
」
(9)
(1)
Controller
Signal name
Category
DRIVE
Input
IN0
IN1
OUT0
Output
OUT1
INP
BUSY
