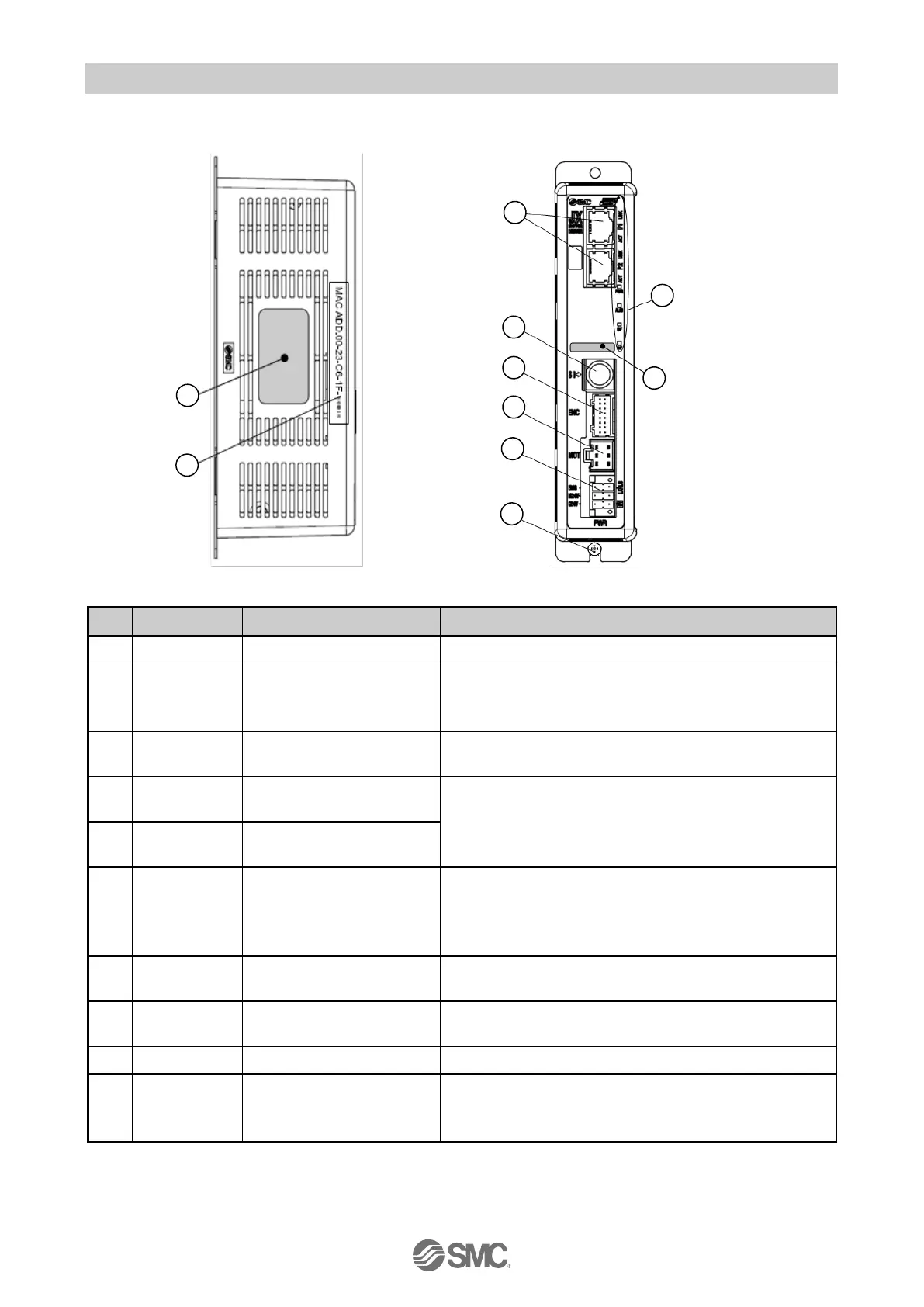

3.2 Parts Description
Details of the parts of the controller.
No.
Display
Name
Details
1
-
Display
LED’s to indicate the controller status.
2
P1, P2
PROFINET
communication
connectors
Connect to the PROFINET network.
3
SI
Serial I/O connector
(8 poles)
Connector for the teaching box (LEC-T1) or the
setting software (JXC-W2).
4
ENC
Encoder connector
(16 poles)
Connect to the actuator cable.
5
MOT
Motor driving connector
(6 poles)
6
PWR
Power supply connector
(5 poles)
Connect to the controller power supply (24VDC)
using the power supply plug.
Control power (+), Stop signal (+), Motor power (+),
Lock release (+), Common power (-)
7
-
Applicable actuator part
number label
Label indicating the actuator part number which can
be connected to the controller.
8
-
Controller part number
label
Label indicating the controller part number.
9
-
MAC address
Label indicating the PROFINET MAC address.
10
-
FE
Functional Ground
When the controller is mounted, tighten screws and
connect the grounding cable.
9
2
4
5
6
7
8
3
10
1
