13. Operation Instructions
13.1 Overview of the Operation Instructions
Shows operation instruction method of each function shown in 8. Operation methods (P.29).
13.2 Operation procedure for Operation by Step No.
Refer to the following "Procedures" and "Timing charts" for details of the Return to Origin, operation
mode procedures and the signal timing. Refer to 9.1 Memory allocation (P.30) for the memory
allocation of signals.
[1] Power on and Return to Origin position

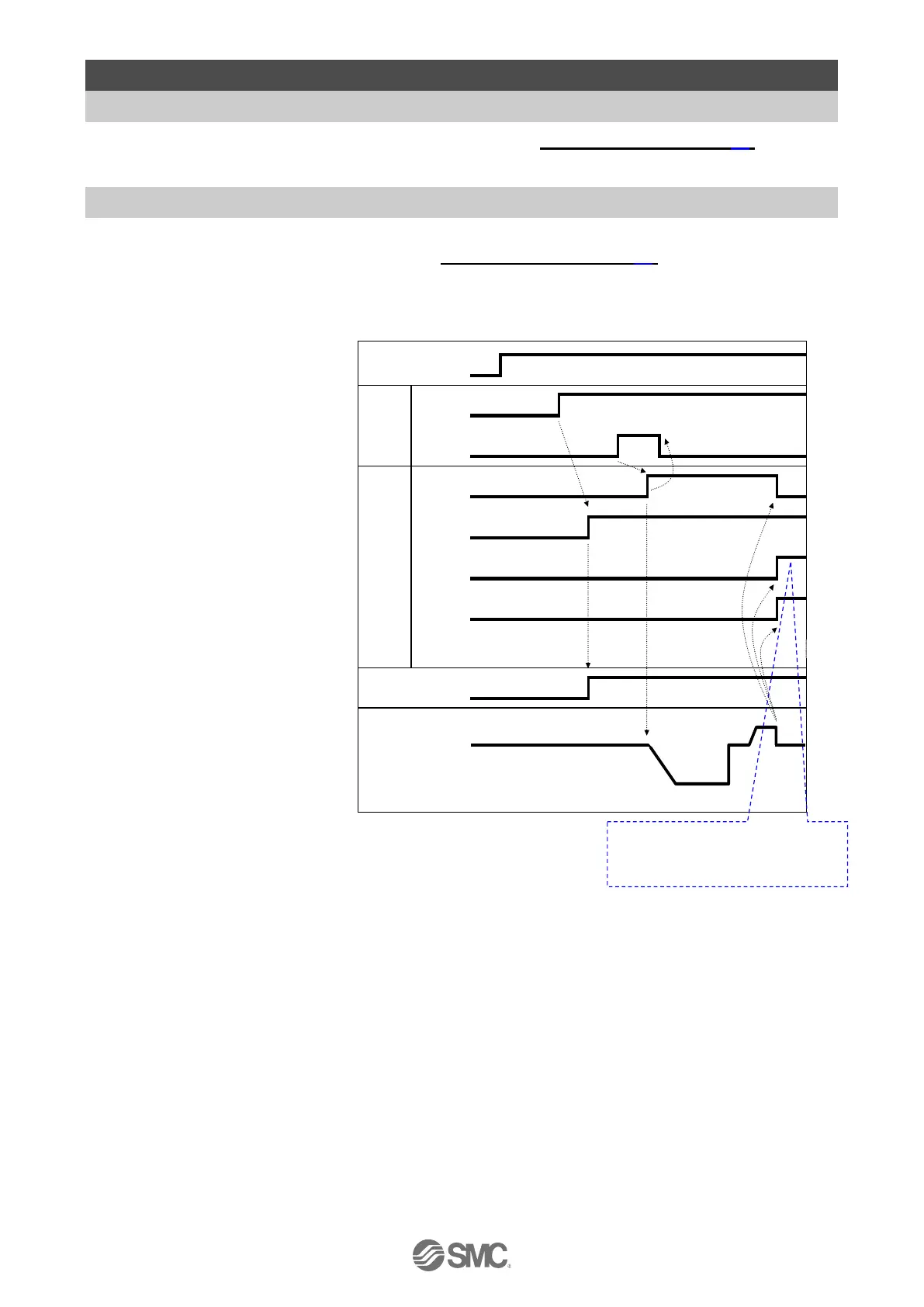

- Procedure - - Timing chart -
(1) Turn the power supply ON.
(2) Turn ON “SVON”.
(3) "SVRE" turns ON.
 The time when “SVRE” turns
ON depends on the type of
actuator and the customers
application.
 The actuator with lock is
unlocked.
(4) Turn ON "SETUP".
(5) "BUSY" turns ON.
(The actuator starts the
operation.)
After "BUSY" turns ON,
"SETUP" will turn OFF.
(6) "SETON" and "INP" will turn ON.
Return to origin is completed
when "INP" turns ON.
SVON
SETUP
BUSY
SVRE
SETON
INP
External lock
Output
signal
Input
signal
Power supply
Speed
24V
0V
INP signal is ON when the current position
is within the step data position range.
Otherwise, the signal is OFF
Unlock
Held
Return to origin
ON
OFF
ON
OFF
0mm/s
.
.
.
.
.
.
.
.
