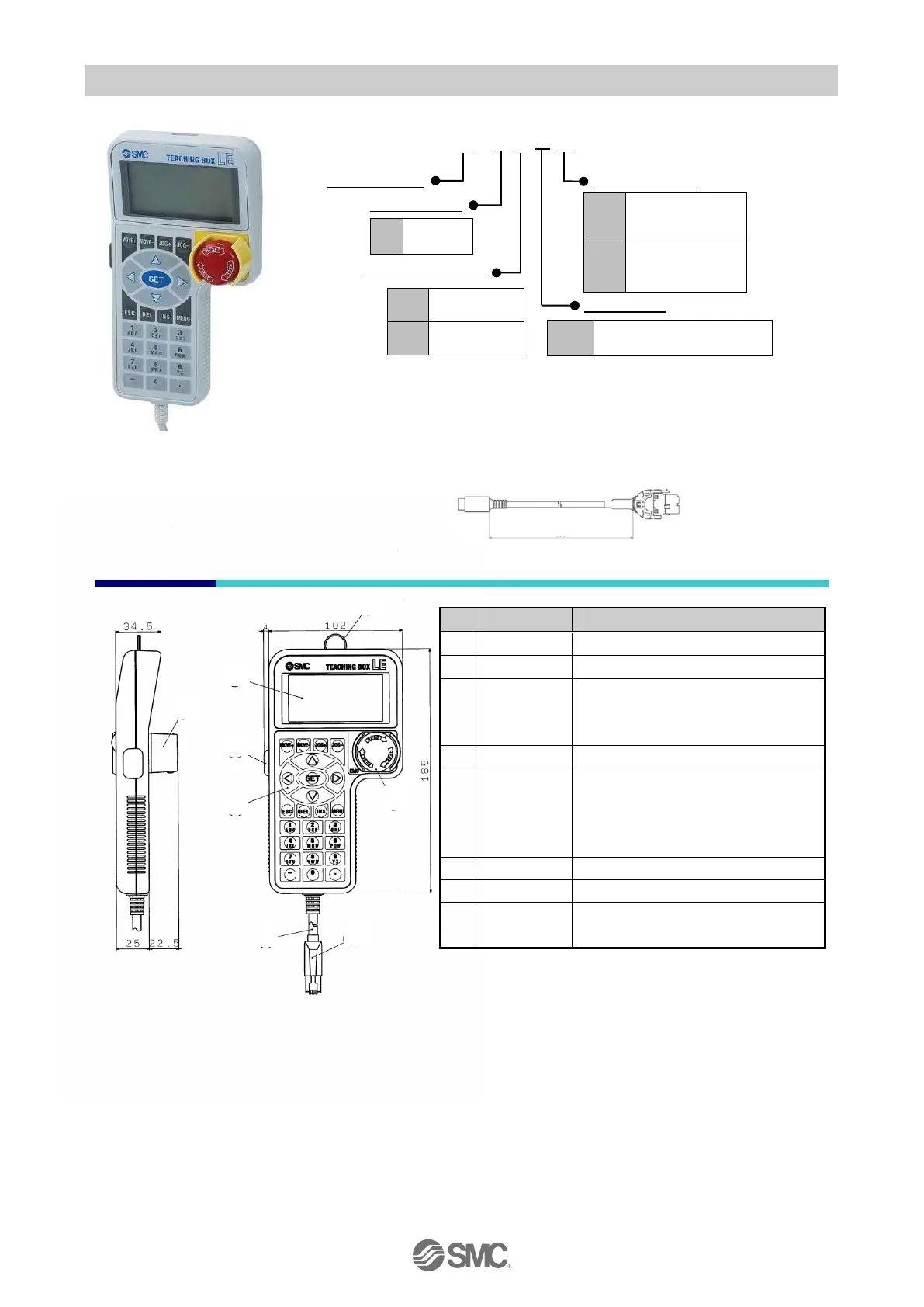

14.7 Teaching box
Conversion Cable
P5062-5 (Cable length: 0.3m)
This cable is necessary only when connecting the teaching
box to the JXC controller
No
Indication
Function
(1)
LCD
Liquid crystal display (with backlight)
(2)
Ring
The ring to hang the teaching box.
(3)
Stop switch
When the switch is pressed, the switch
locks and it stops.
Turn clockwise to release the lock.
(4)
Stop guard
Protector for the stop switch
(5)
Enable
switch
(Option)
Switch to prevent unintentional
operation of Jog test function.
 Does not apply to other functions
e.g. data change
(6)
Key switch
Entry switches
(7)
Cable
3m length
(8)
Connector
The connector to be connected to the
CN4 of the controller
Teaching box
Cable length
3m
3
Enable switch
Equipped with
enable switch
S
No enable
switch
Nil
Original language
Stop switch
With Stop switch
G
Japanese
J
English
E
Dimensions
(8)
(3)
(7)
(6)
(5)
(1)
(2)
(4)
LEC- T1 - 3 □ G □
300
