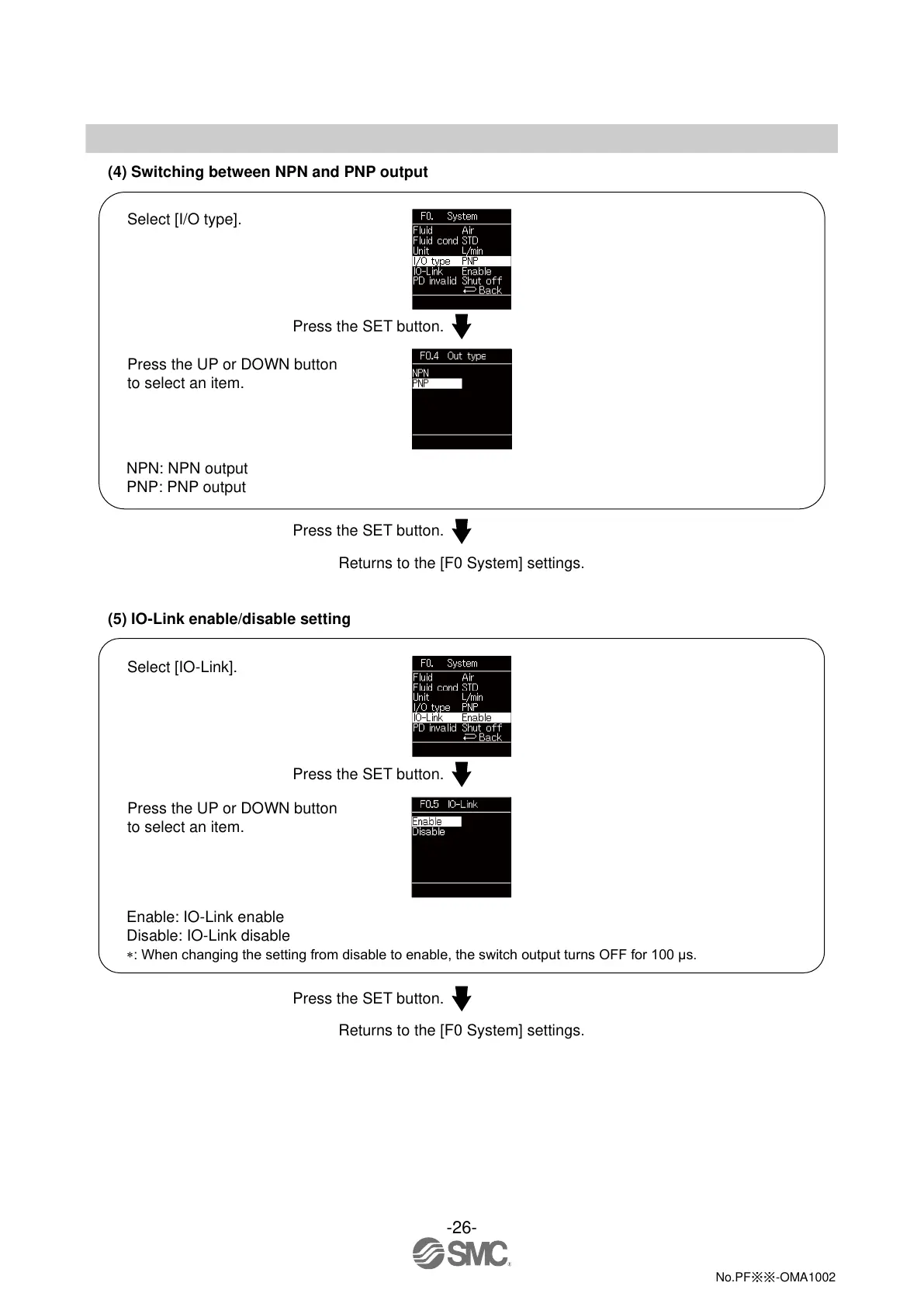

(4) Switching between NPN and PNP output
Press the SET button.
NPN: NPN output
PNP: PNP output
Press the SET button.
Returns to the [F0 System] settings.
(5) IO-Link enable/disable setting
Press the SET button.
Enable: IO-Link enable
Disable: IO-Link disable
: When changing the setting from disable to enable, the switch output turns OFF for 100 μs.
Press the SET button.
Returns to the [F0 System] settings.
Press the UP or DOWN button
to select an item.
Select [I/O type].
Select [IO-Link].
Press the UP or DOWN button
to select an item.
