3. Select a test option and the test screen displays (Figure 7-8).

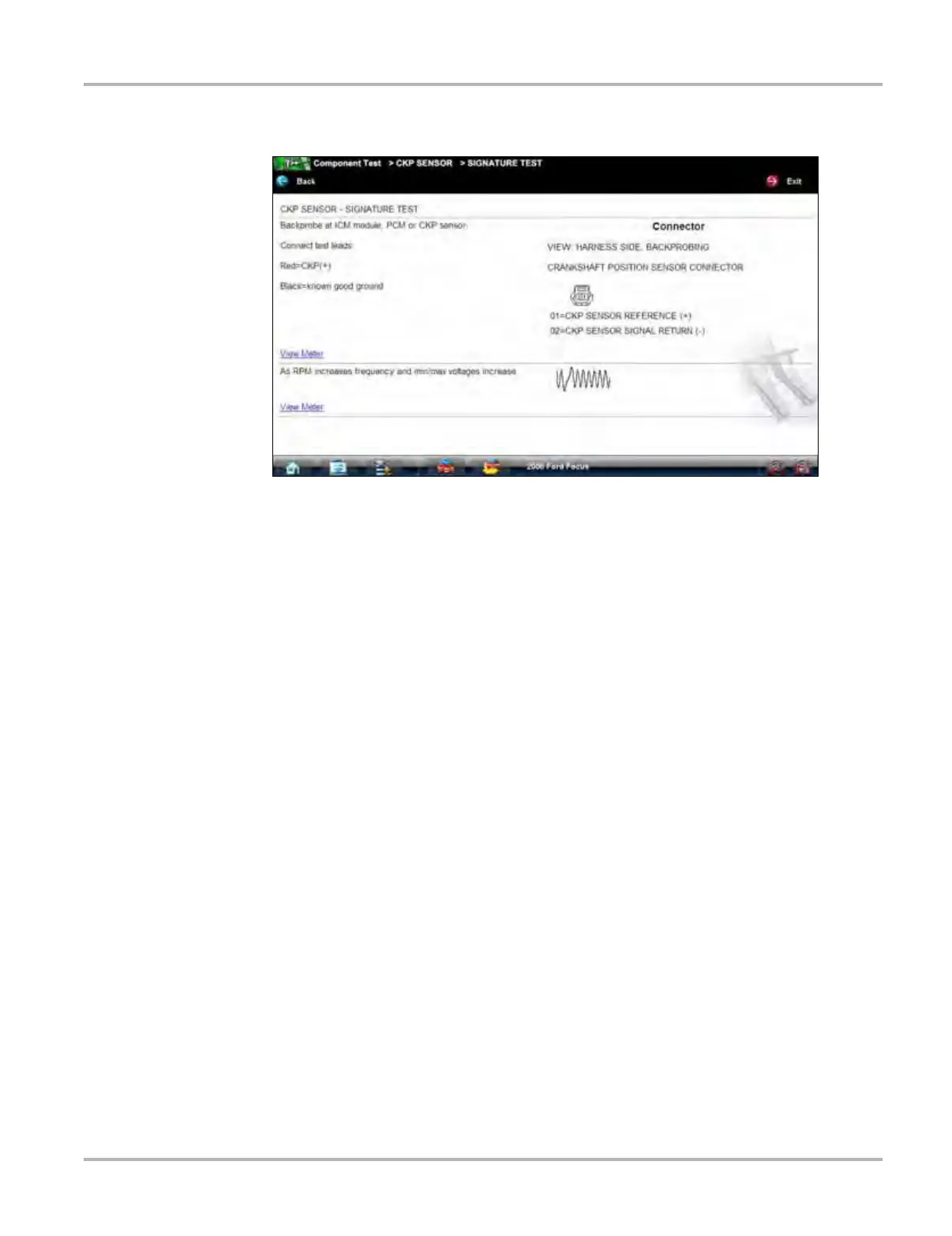

Figure 7-8 Sample Test screen
A scroll indicator along the right edge of the screen appears if there is additional information
below what is on the screen.
4. Gesture sweep to view any additional information.
5. Select Back at any time to return to the previous screen, or select Exit to return to the main
component menu.
Hyperlinks
Component test screens contain hyperlinks that either take you to another page that contains
additional information or open an additional window on top of the current screen. Hyperlinks
display as blue lettering with an underline, the color changes once the link has been selected.
Common hyperlinks are:
– View Meter—opens a live meter set up to perform the test in the lower portion of the
screen (Figure 7-9). Once the meter view is open, the Component Test toolbar at the top
of the screen is replaced by the Scope Multimeter toolbar, which allows you to make
adjustments to the settings. See “Scope Multimeter Toolbar” on page 94 for details.
– Show More Information—advances to a new screen with more detailed information
about a particular test, select Back to return to the test screen.
View Meter
A Meter button, which is only available in the Component Test view meter mode, appears on the
upper toolbar (Figure 7-9).
