D385 User Manual Appendix 3
Appendix 3 - Wall Mounting
The four screws and two screw anchors/molly bolts/wall plugs appropriate for your type of wall are
not included in the delivery.
Distance to wall
Abstand zur Wand
Distance au mur
Distanza dalla parete
Distancia a la pared
Distância à parede
∼ 5 mm (0.197")
ø max
8 mm
(0.315")
ø max
4,5 mm
(0.177")
")
185,00 mm (7.284")

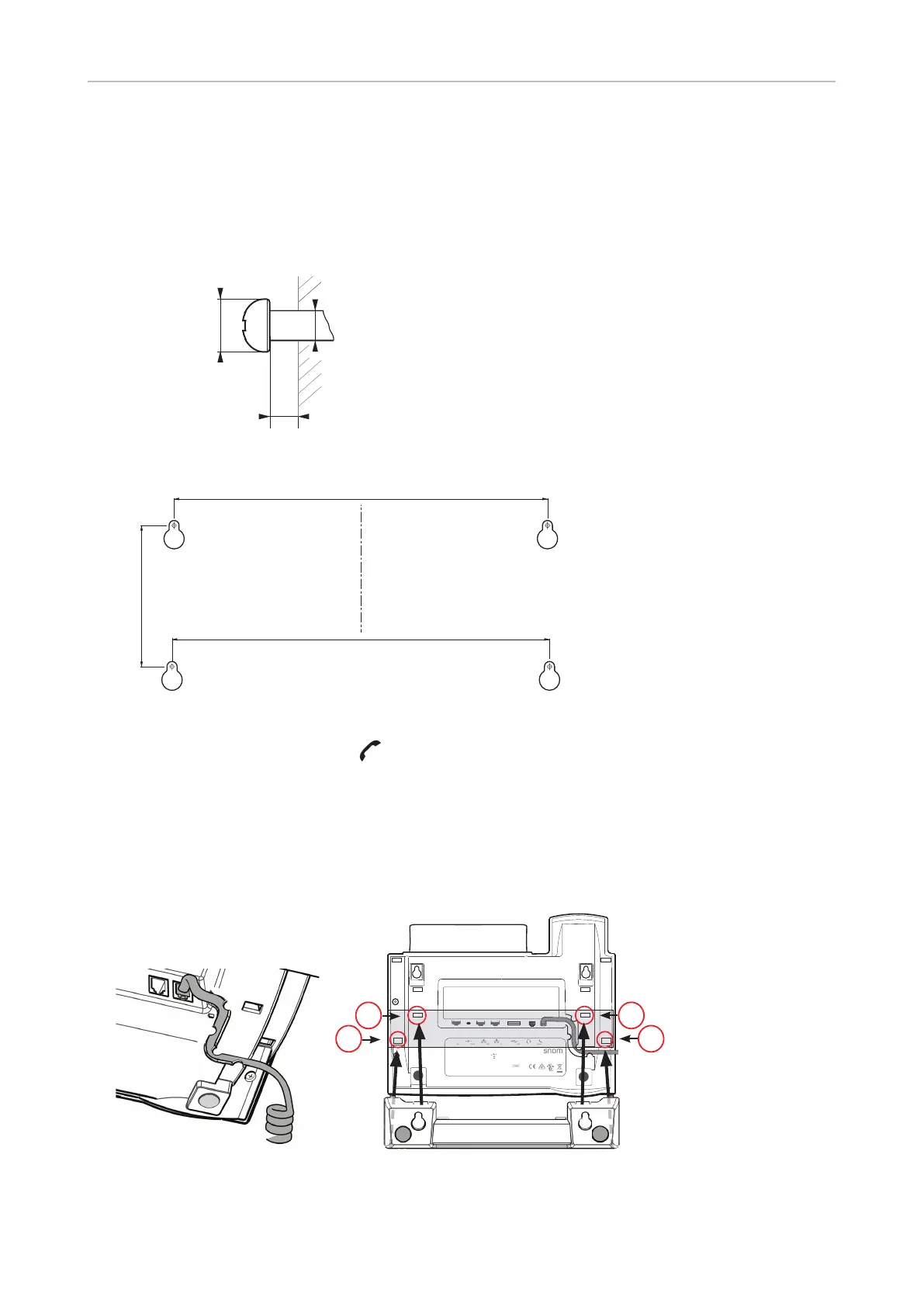

1. Before attaching the footstand in the position for wall mounting, plug the long end of the handset
cord into the connector labelled "
" on the bottom of the phone and place the cord in the cable
guide (Fig. 1).
2. Insert the snap-fits on the longer ends of the footstand into the holes marked (Fig. 2).
3. Tilt the footstand away from you and insert the snap-fits on the shorter ends into the holes
marked (Fig. 2 and 3). Make sure that all four snap-fits have securely locked in place before
mounting the phone on the wall.
D385
PN 00004340
EHS DC 5V NET PC USB AUDIO
S/N
MAC address
Use only power supply
listed in the user guide.
Snom Technology GmbH
Wittestr. 30 G, 13509 Berlin, Germany
© 20XX by Snom Technology GmbH.
All Rights Reserved. Made in XXXXX
RnX
Adapter 5V 2A
PoE 48V 0.25A
7B02
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
XXXXXXX
2 2
1
1
Fig. 1 Fig. 2
