8. PRODUCT INSTALLATION
Prior to installation of the product ensure that the padlocking setting screw (located at the back of the
product) is congured as per your requirements.
For locking in Positions I, II and 0, refer to the following procedure.

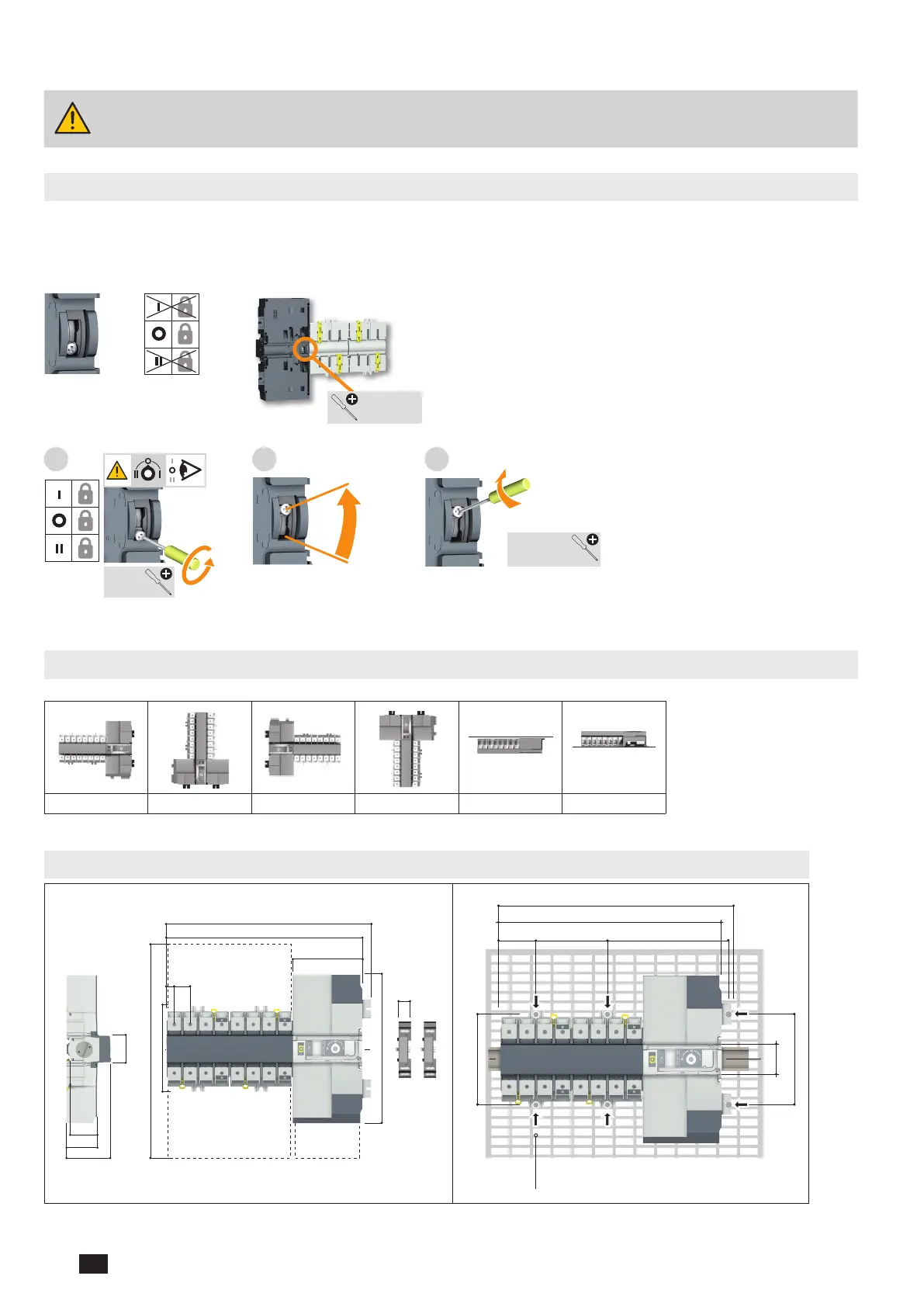

8.1. Changing the padlocking conguration
To congure the locking in the 3 positions:
STEP1: loosen the screw at the back of the product as shown below.
STEP2: slide the screw upwards.
STEP3: tighten the screw in the top position as shown.
2
2x
3
Posidriv PZ2
2,2 lb-in
0,25 Nm
Posidriv PZ2
2x
1
Posidriv PZ2
2x
8.2. Recommanded orientation
OK OK OK OK OK OK
OK OK OK OK OK OK
OK OK OK OK OK OK
OK OK OK OK OK OK
OK OK OK OK OK OK
OK OK OK OK OK OK
Recommended Ok Ok Ok Ok Ok
8.3. Dimensions 8.4. Back plate mounted
MAX : 2
340
26
116
53
46
73,5
245
143 350
18
45
13
324
MAX : 2
340
26
116
53
46
73,5
245
143
350
18
45
13
324
340
326
131,5
131,5
52 104 176
47
6 mounting brackets
6x M6 screw - 2,5 Nm
