ATyStM - 542931D - SOCOMEC
25EN

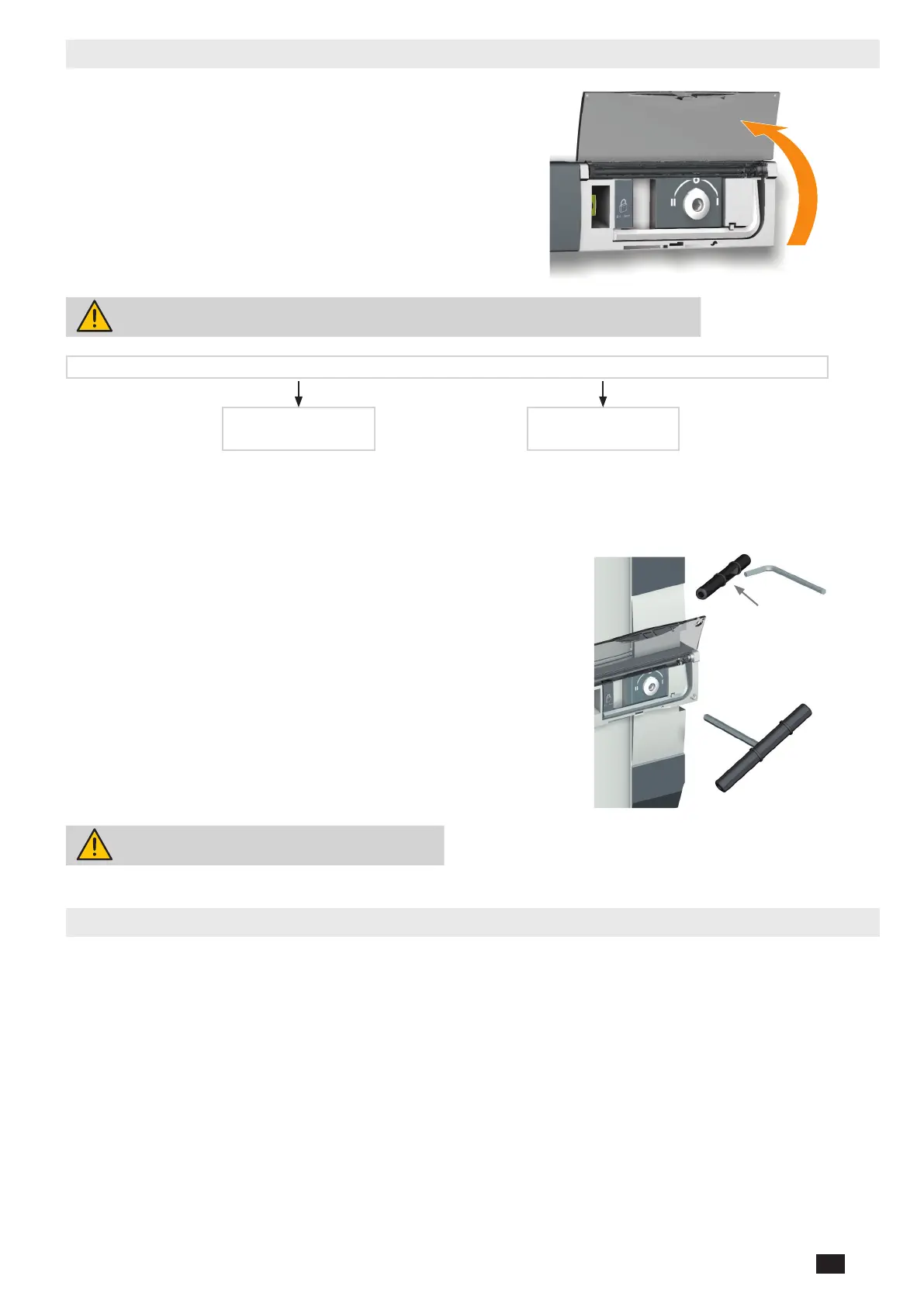

13.2. Manual mode
To access manual mode, open the Aut/Man cover.
Once manual mode is active (cover open) it is possible:
To lock the changeover switch (padlock).
To manually operate the changeover switch using the handle.
As soon as manual mode is activated, remote orders are is inhibited.
Locking
Manual changeover
switching
MANUAL MODE
13.2.1. Manual switching
Use the handle situated on the front panel under the cover to manoeuvre
the changeover switch. To simplify the operation, it is advised to also
use the handle extension that is delivered with the product.
Check the changeover switch position on the indicator situated on the
front panel before making any operation.
From position I, turn anti-clockwise to get to position 0
From position 0, turn anti-clockwise to get to position II
From position II, turn clockwise to get to position 0
From position 0, turn clockwise to get to position I
(Max 8 Nm)
Extension
Do not force the product (Max 8 Nm).
13.3. Padlocking
Enables locking in the 0 position (factory conguration) or in positions I, 0 or II (user congurable).
It is necessary to congure padlocking to all positions before installation as access to conguration is at the back of the
product. Refer to section «8.1. Changing the padlocking conguration», page 17
