socomec ATyS Series Installation And Operating Manual

ATyStM - 542931D - SOCOMEC
22 EN

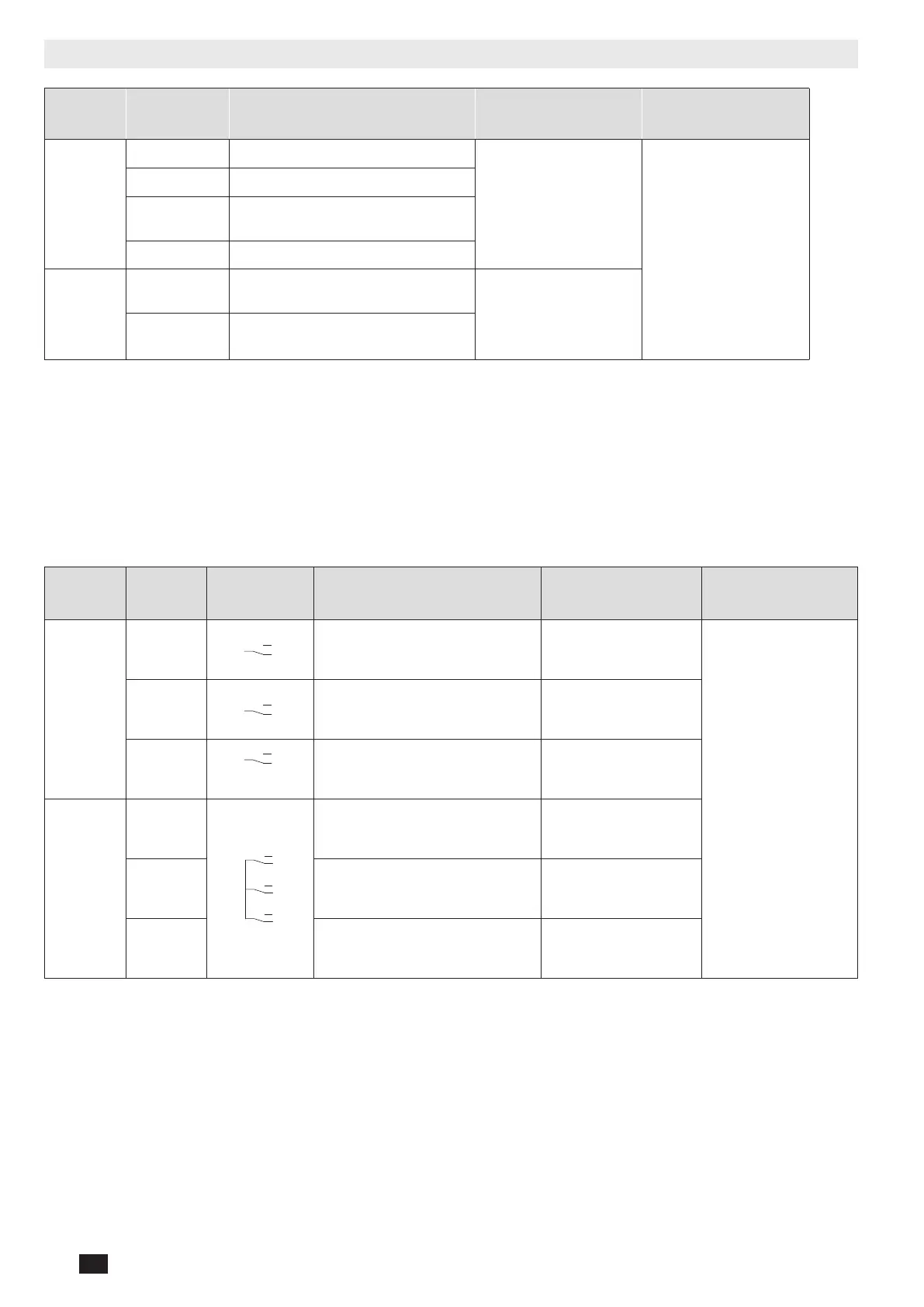

12.1. Terminal connectors designation
TYPE TERMINAL NO. DESCRIPTION CHARACTERISTICS
RECOMMANDED
CONNECTION
CROSS-SECTION
Inputs 207 Common
Do not connect to any
power supply
0,5 to 2,5 mm² (rigid)
0,5 to 1,5mm² (stranded)
208* Position 0 order
209
Open SI priority.
Closed S2 priority.
210 Inhibition ATS
Outputs
63/64
Open: SI and S2 NOT available.
Closed: SI or S2 available
Resistive load
2A 30Vdc
0.5A 230Vac
Pmax: 60W or 125VA
Umax: 30Vdc or 230Vac
73/74 Not used
Note:
* When input 207 / 208 is closed, the product switches immediately to the position zero (electrical security). Moreover, the
product goes into fault mode, and all the automatism is stopped. This function is possible only if the opposite source is
available:
• position 1 / source 2 available,
• position 2 / source 1 available.
To restart the automatism you need to open the contact and to have an action to erase the fault (manual mode, inhibition
mode, priority change).
TYPE
TERMINAL
NO.
STATUS OF
THECONTACT
DESCRIPTION
OUTPUT
CHARACTERISTICS
RECOMMENDED
CONNECTION CROSS-
SECTION
Auxiliary
contact
block
1309 1001
11/12/14
11
14
12
Changeover switch in position I
250V AC 5A AC1
24VDC 2A
AC13 - 250VAC - 2A
0.5 to 2.5 mm²
(rigid)
0.5 to 1.5 mm²
(stranded)
21/22/24
21
24
22
Changeover switch in position II
250V AC 5A AC1
24VDC 2A
AC13 - 250VAC - 2A
01/02/04
01
04
02
Changeover switch in position 0
250V AC 5A AC1
24VDC 2A
AC13 - 250VAC - 2A
Auxiliary
contact
block
1309 1011
11/12/14
11
14
12
21
24
22
01
04
02
Changeover switch in position I
250V AC 5A AC1
24VDC 2A
AC13 - 250VAC - 2A
21/22/24 Changeover switch in position II
250V AC 5A AC1
24VDC 2A
AC13 - 250VAC - 2A
01/02/04 Changeover switch in position 0
250V AC 5A AC1
24VDC 2A
AC13 - 250VAC - 2A

socomec ATyS Series Specifications

General

Type	Automatic Transfer Switch (ATS)
Transfer Mode	Open or closed transition
Control	Automatic, Manual, Remote
Standards	IEC 60947-6-1
Communication	Modbus, Ethernet
Protection Degree	IP20
Poles	3 or 4 poles
