7.3.3 Timing Mode
With the Timing Mode you can define fixed times of the day to
charge or discharge the battery with a certain power.
Up to 4 rules (rule 0, 1, 2 and 3) can be set. If more than one rule
is valid for any given time, the rule with the lower number is
active. Each rule can be enabled or disabled, also charging and
discharging period for a rule can be enabled separately.
In below example, the battery will be charged with 2 kW
between 22 and 4 o'clock at night, and discharged with 2,5 kW
between 14 and 16 o'clock:
Timing Mode
Rule 0: Enabled / Disabled / Enabled charge / Enabled
discharge
Charge Start
22 h 00 m
Charge End
05 h 00 m
Charge Power
02000 W
DisCharge Start
14 h 00m
DisCharge End
16 h 00m
DisCharge Power
02500 W
7.3.4 Passive Mode
The passive mode is used in systems with external energy
management systems. The inverter's operation w
ill be
controlled by the external controller using the Modbus
RTU protocol.
Please contact SOFAR if you need the Modbus
protocol definition for this device.

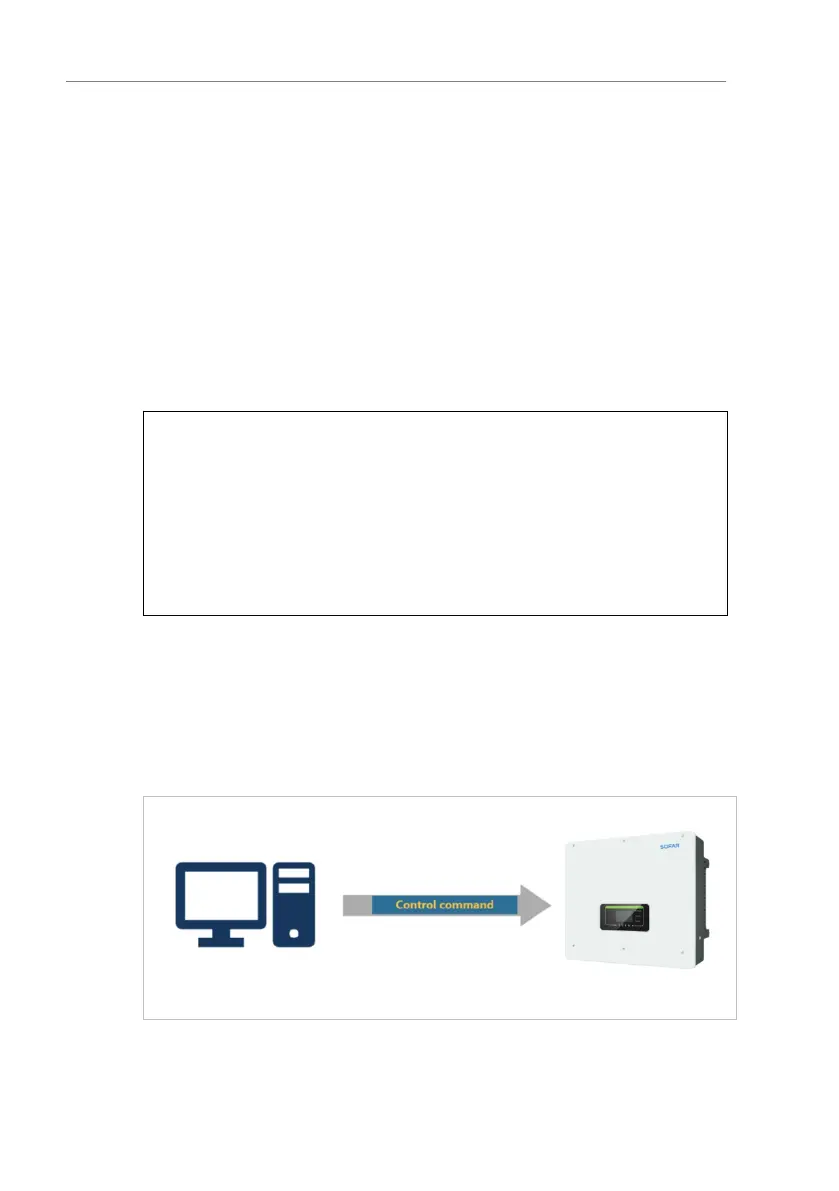

Figure. 6-3 external control of inverter
