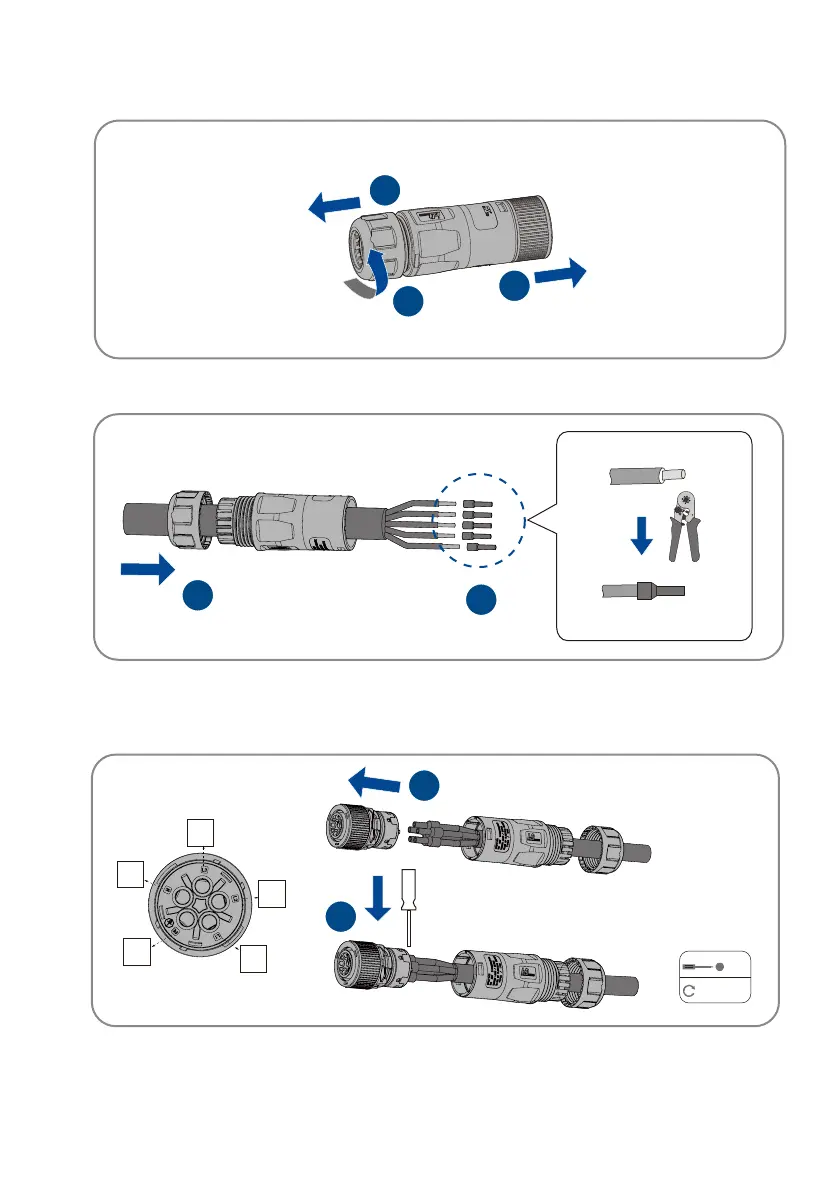

Step 4：Set the parts on the cable, insert the terminal holes in sequence. Crimp the wire with an
inner hexagon screwdriver and screw the torque 1.2+/-0.1N·m.
Step 2：
Split grid connector.
Step 3：
Crimp the terminals with crimping pliers.
1.2±0.1N·m
2mm
1
2
3
1
2
